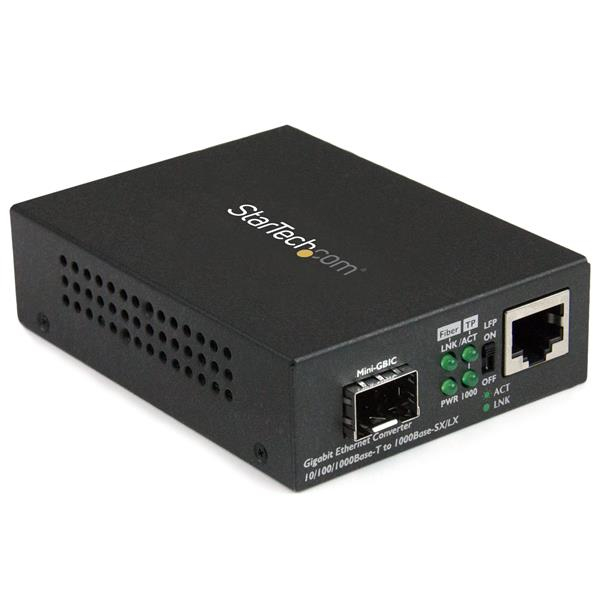

StarTech.com Fiber Media Converter with Open SFP Slot

Gigabit Ethernet Fiber Media Converter with Open SFP Slot - Supports 10/100/1000 Networks - Copper Ethernet to Fiber Media Converter with auto MDIX - Compact Metal Housing

  • Brand: StarTech.com
  • Category: Network Accessories
  • SKU: 3009598
  • MPN: MCM1110SFP
StarTech.com

StarTech.com Multi-Mode (MM) / Single Mode (SM) Fiber Media…

SKU
CNZ-IM-042402
MPN
MCM1110SFP

Overview

Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice

This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

A cost-effective extension and flexible performance

The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.

A versatile way to connect different networks

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

Installation is fast and easy

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.

Key features

  • Maximum data transfer rate: 1000 Mbit/s
  • Converter input interface: 1000Base-T, 100Base-TX, 10Base-T
  • Converter output interface: 1000Base-LX, 1000Base-SX
  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
  • Ethernet interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Jumbo frames support: Yes
  • Auto MDI/MDI-X: Yes
  • Duplex system: Full
  • Wavelength-division multiplexing (WDM): Yes
  • Fiber mode structure: Multi-mode, Single-mode
  • Mean time between failures (MTBF): 50000 h
  • Internal: No
  • LED indicators: Activity, Link, Power
  • Product colour: Black
  • Housing material: Steel
  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 1
  • Fiber optic connector: SFP
  • DC-in jack: Yes
  • Input voltage: 100 - 240 V
  • Input current: 1 A
  • Output voltage: 5 V

Specifications

Power

Input voltage100 - 240 V
Input current1 A
Output voltage5 V
Output current2 A
Power consumption (typical)5 W
Power over Ethernet (PoE)No
External power adapterYes
Power plug typeType N

Network

Maximum data transfer rate1000 Mbit/s
Converter input interface1000Base-T, 100Base-TX, 10Base-T
Converter output interface1000Base-LX, 1000Base-SX
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Jumbo frames supportYes
Auto MDI/MDI-XYes
Duplex systemFull

Features

InternalNo
LED indicatorsActivity, Link, Power
Product colourBlack
Housing materialSteel

Performance

Wavelength-division multiplexing (WDM)Yes
Fiber mode structureMulti-mode, Single-mode
Mean time between failures (MTBF)50000 h

Certificates

Compliance certificatesRoHS
CertificationCE, FCC

Logistics data

Harmonized System (HS) code85176990

Packaging data

Package width284 mm
Package depth139 mm
Package height68 mm
Package weight544 g

Packaging content

ManualYes

Ports & interfaces

Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSFP
DC-in jackYes

Weight & dimensions

Width70 mm
Depth95 mm
Height26 mm
Weight185 g

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)5 - 95%

Questions

$134.54inc GST
