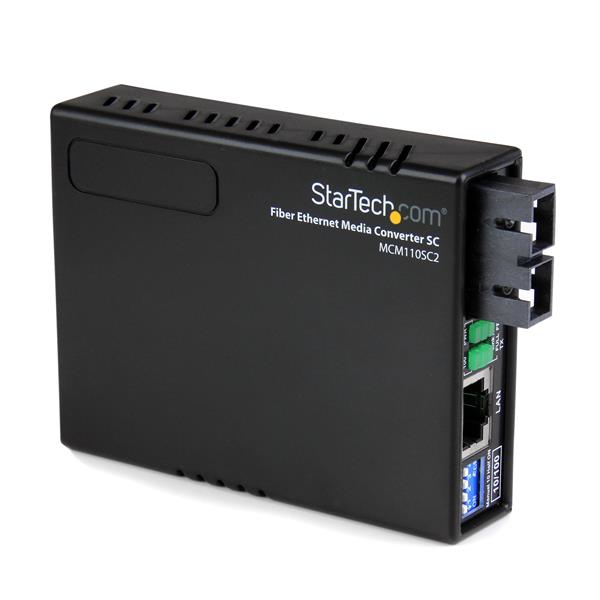

StarTech.com FIBER TO ETHERNET MEDIA CONVERTER SC
10/100 FIBER TO ETHERNET MEDIA CONVERTER MULTI MODE SC 2 KM
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 2951648
- MPN: MCM110SC2
StarTech.com
StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode SC…
- SKU
- CNZ-IM-021482
- MPN
- MCM110SC2
- Rating
- No reviews yet
Overview
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
Key features
- Maximum data transfer rate: 100 Mbit/s
- Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
- Ethernet LAN data rates: 10,100 Mbit/s
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Duplex system: Full, Half
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Wavelength-division multiplexing (WDM): No
- Fiber mode structure: Multi-mode
- Mean time between failures (MTBF): 65000 h
- Internal: No
- LED indicators: Yes
- Product colour: Black
- Housing material: Plastic
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
- DC-in jack: Yes
- Input voltage: 115 V
Specifications
Power
| Input voltage | 115 V |
|---|---|
| Output voltage | 12 V |
| Output current | 0.2 A |
| Power over Ethernet (PoE) | No |
| Power plug type | Type M |
Network
| Maximum data transfer rate | 100 Mbit/s |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
Features
| Internal | No |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Plastic |
Performance
| Maximum transfer distance | 2000 m |
|---|---|
| Wavelength | 1310 nm |
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 65000 h |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC |
Packaging data
| Package width | 63 mm |
|---|---|
| Package depth | 148 mm |
| Package height | 145 mm |
| Package weight | 400 g |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
Weight & dimensions
| Width | 75 mm |
|---|---|
| Depth | 95 mm |
| Height | 20 mm |
| Weight | 90.5 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
