StarTech.com Gb Fiber SFP - HP J4858C Compatible

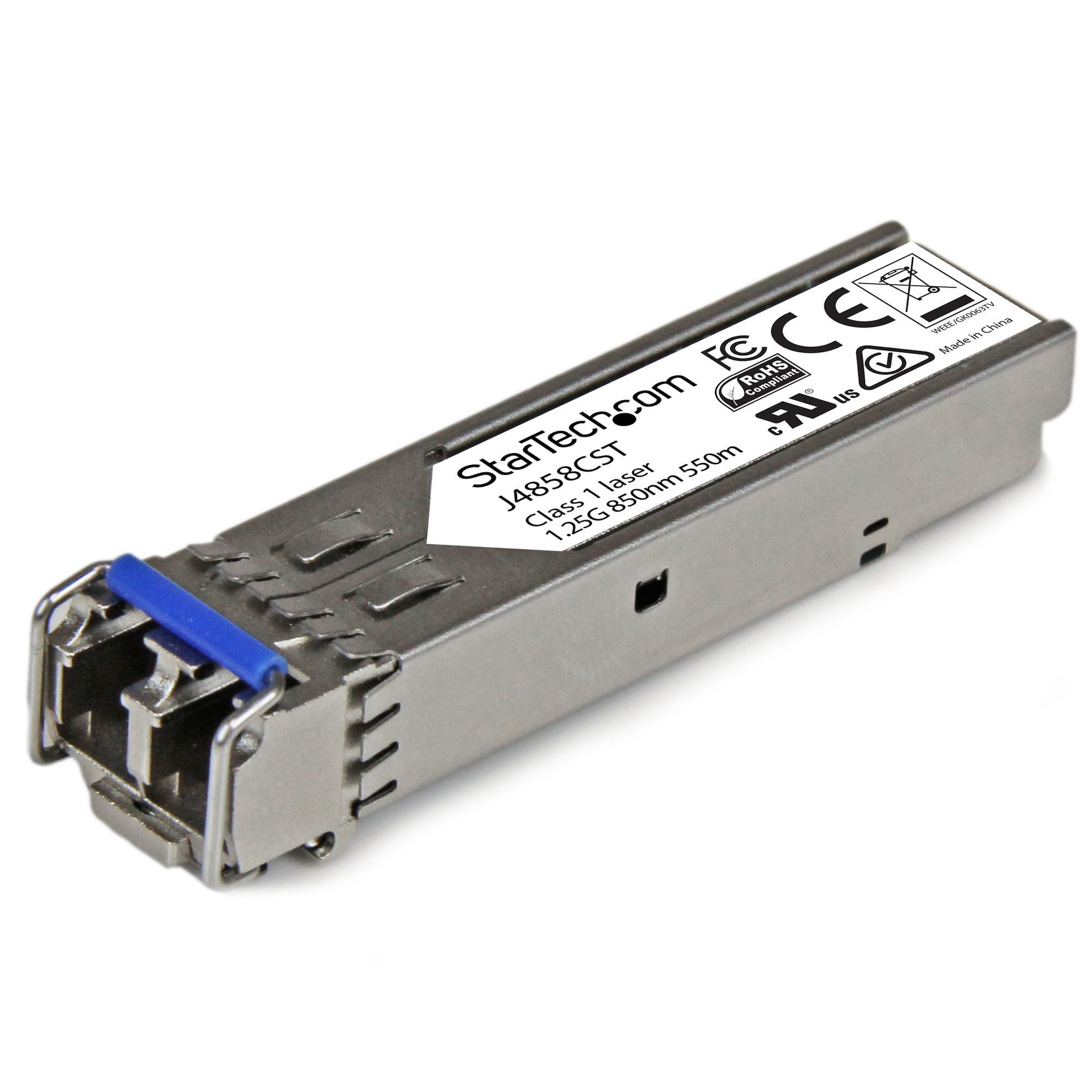

Gigabit Fiber SFP Transceiver Module - HP J4858C Compatible - MM LC with DDM - 550 m (1804 ft.) - 1000Base-SX Mini-GBIC with Lifetime Warranty - MSA Compliant Gb Fiber SFP
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 3294330
- MPN: J4858CST
StarTech.com
StarTech.com HP J4858C Compatible SFP Transceiver Module -…
- SKU
- CNZ-IM-042410
- MPN
- J4858CST
- Rating
- No reviews yet
Overview
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty
The J4858CST is an HPE J4858C compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 3,381,761 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The J4858CST is an HPE J4858C compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 3,381,761 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: SX
- Maximum transfer distance: 550 m
- Wavelength: 850 nm
- Networking standards: IEEE 802.3z
- Duplex system: Full, Half
- Digital Diagnostics Monitoring (DDM): Yes
- Wavelength-division multiplexing (WDM): No
- Product colour: Silver
- Housing material: Aluminium
- Hot-swap: Yes
- Mean time between failures (MTBF): 3381761 h
- Power consumption (typical): 1 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UL
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 30 - 75%
- Width: 14 mm
- Depth: 57 mm
Specifications
Power
| Power consumption (typical) | 1 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3381761 h |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full, Half |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UL |
Logistics data
| Master (outer) case width | 254 mm |
|---|---|
| Master (outer) case length | 305 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 36 pc(s) |
| Country of origin | China |
Packaging data
| Package width | 119 mm |
|---|---|
| Package depth | 93 mm |
| Package height | 33 mm |
| Package weight | 46 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 14 mm |
|---|---|
| Depth | 57 mm |
| Height | 13 mm |
| Weight | 18 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 30 - 75% |
Questions
