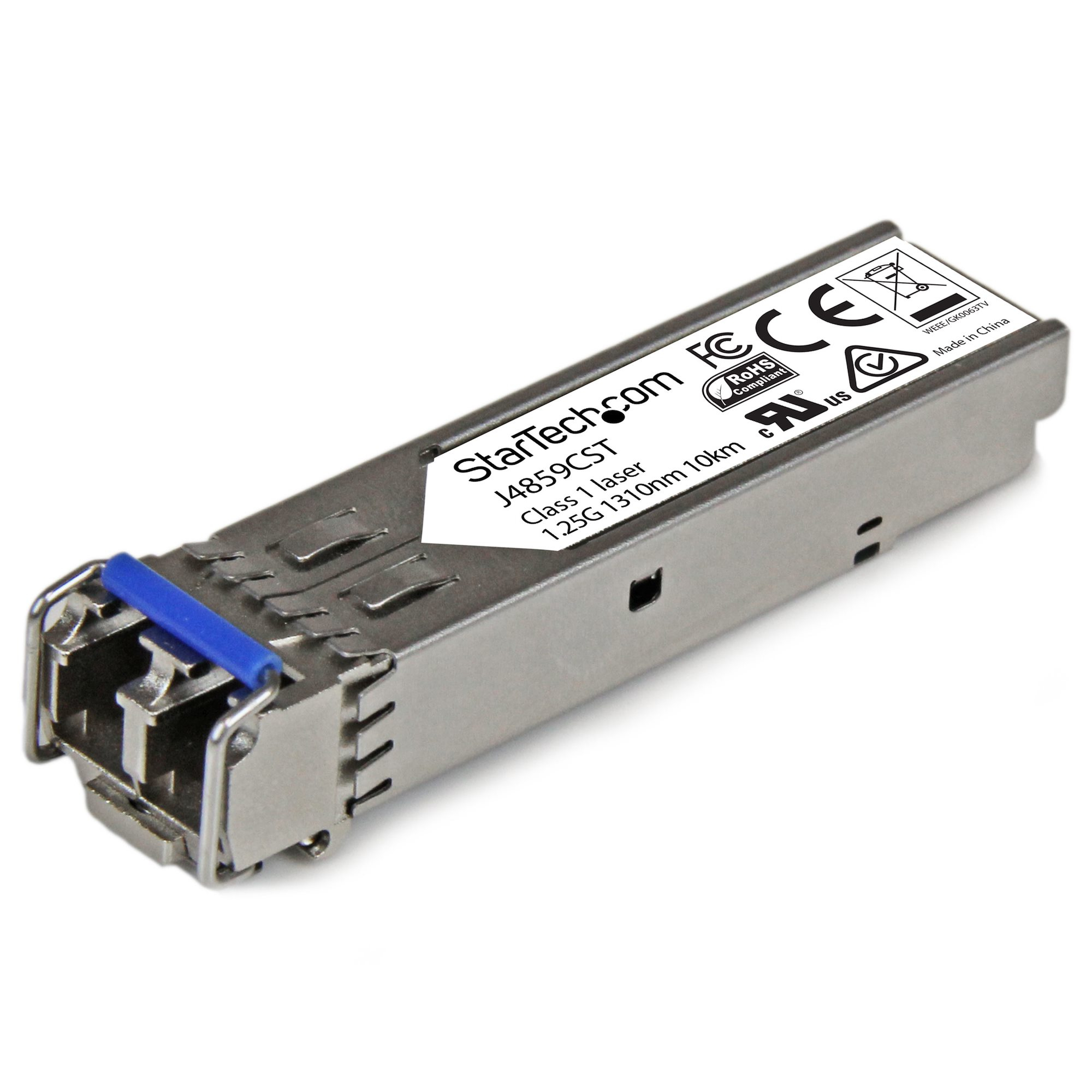

StarTech.com Gb Fiber SFP - HP J4859C Compatible
Gigabit Fiber SFP Transceiver Module - HP J4859C Compatible - SM/MM LC with DDM - 10km (6.2 mi.) / 550m (1804 ft.) - 1000Base-LX Mini-GBIC w/ Lifetime Warranty - MSA Compliant
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 3294332
- MPN: J4859CST
StarTech.com
StarTech.com HP J4859C Compatible SFP Transceiver Module -…
- SKU
- CNZ-IM-042412
- MPN
- J4859CST
- Rating
- No reviews yet
Overview
1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The J4859CST is an HPE J4859C compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode / Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The J4859CST is an HPE J4859C compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode / Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- Maximum transfer distance: 10000 m
- Wavelength: 1310 nm
- Networking standards: IEEE 802.3z
- Duplex system: Full
- Auto MDI/MDI-X: Yes
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Hot-swap: Yes
- Mean time between failures (MTBF): 3092408 h
- Power consumption (typical): 1 W
- Compliance certificates: RoHS
- Certification: FCC, UL, CE
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 14 mm
- Depth: 57 mm
- Height: 13 mm
- Weight: 16 g
Specifications
Power
| Power consumption (typical) | 1 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3092408 h |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | FCC, UL, CE |
Logistics data
| Master (outer) case width | 347 mm |
|---|---|
| Master (outer) case length | 412 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 355 mm |
| Products per master (outer) case | 100 pc(s) |
| Country of origin | China |
Packaging data
| Package width | 118 mm |
|---|---|
| Package depth | 93 mm |
| Package height | 32 mm |
| Package weight | 45 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 14 mm |
|---|---|
| Depth | 57 mm |
| Height | 13 mm |
| Weight | 16 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Questions
$124.19inc GST
