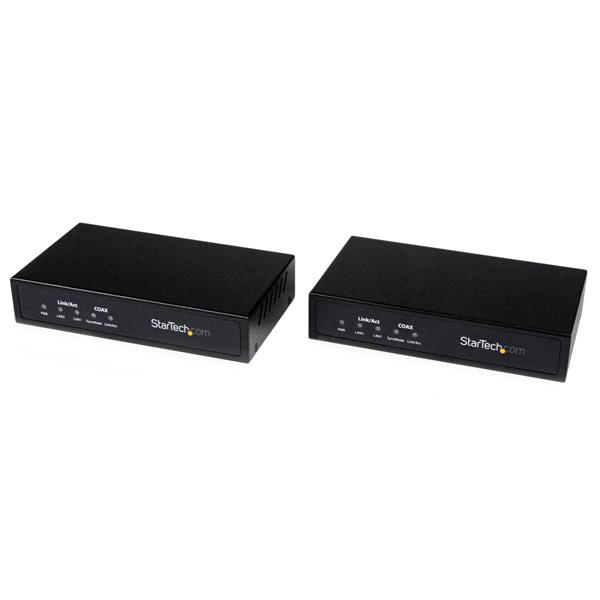

StarTech.com Gigabit Ethernet over Coax Extender
Gigabit Ethernet over Coaxial Unmanaged Network Extender Kit 2.4km - IP to Coax Converter - Ethernet to RG6 Coax Adapter Kit
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 2350801
- MPN: EOC1110K
StarTech.com
StarTech.com Gigabit Ethernet over Coaxial Unmanaged Network…
- SKU
- CNZ-IM-021488
- MPN
- EOC1110K
- Rating
- No reviews yet
Overview
Extend an Ethernet network over Coaxial cable up to 1.5 miles (2.4km)
The EOC1110K Gigabit Ethernet over Coaxial Unmanaged LAN Extender Kit (2.4km) includes both end points, and allows you to span a 10/100/1000Mbps Ethernet network over extremely long distances (up to 2.4 km/1.5 mi) while still maintaining high-speed network connectivity.
The coax Ethernet extender allows you to run the connection over existing coaxial cable, with little to no modification required, making it a perfect solution for a broad range of applications, including connecting isolated user stations from the same or separate building, or overcoming infrastructure obstacles and distances (e.g. older stone/concrete architecture) where new wiring or wireless connectivity may be impossible.
The gigabit Ethernet over coax kit helps to eliminate expense by allowing CCD or CATV video and Ethernet network data to share the same coaxial cable without interference.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Allows network connectivity in remote buildings made of stone/concrete, or heritage buildings where new Ethernet cabling or wireless is impossible
- Integrates seamlessly with existing coaxial infrastructure, without causing interference to the CCD / CATV signals
- Simple plug and play installation for quick setup in your environment
The EOC1110K Gigabit Ethernet over Coaxial Unmanaged LAN Extender Kit (2.4km) includes both end points, and allows you to span a 10/100/1000Mbps Ethernet network over extremely long distances (up to 2.4 km/1.5 mi) while still maintaining high-speed network connectivity.
The coax Ethernet extender allows you to run the connection over existing coaxial cable, with little to no modification required, making it a perfect solution for a broad range of applications, including connecting isolated user stations from the same or separate building, or overcoming infrastructure obstacles and distances (e.g. older stone/concrete architecture) where new wiring or wireless connectivity may be impossible.
The gigabit Ethernet over coax kit helps to eliminate expense by allowing CCD or CATV video and Ethernet network data to share the same coaxial cable without interference.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Allows network connectivity in remote buildings made of stone/concrete, or heritage buildings where new Ethernet cabling or wireless is impossible
- Integrates seamlessly with existing coaxial infrastructure, without causing interference to the CCD / CATV signals
- Simple plug and play installation for quick setup in your environment
Key features
- Type: Network receiver
- Maximum transfer distance: 2400 m
- Data transfer rate: 112 Mbit/s
- Mean time between failures (MTBF): 57000 h
- Cabling technology: 10/100/1000Base-T(X)
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Ethernet LAN (RJ-45) ports: 2
- Product colour: Black
- AC input voltage: 110-240 V
- Power consumption (typical): 4 W
- External power adapter: Yes
- Output voltage: 12 V
- Output current: 1 A
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Width: 138 mm
- Depth: 94 mm
- Height: 28 mm
- Weight: 300 g
- Package width: 238 mm
- Package depth: 195 mm
- Package height: 164 mm
- Package weight: 1.57 kg
Specifications
Power
| AC input voltage | 110-240 V |
|---|---|
| Power consumption (typical) | 4 W |
| External power adapter | Yes |
| Output voltage | 12 V |
| Output current | 1 A |
Design
| Product colour | Black |
|---|
Network
| Cabling technology | 10/100/1000Base-T(X) |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Performance
| Type | Network receiver |
|---|---|
| Maximum transfer distance | 2400 m |
| Data transfer rate | 112 Mbit/s |
| Mean time between failures (MTBF) | 57000 h |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Packaging data
| Package width | 238 mm |
|---|---|
| Package depth | 195 mm |
| Package height | 164 mm |
| Package weight | 1.57 kg |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|
Weight & dimensions
| Width | 138 mm |
|---|---|
| Depth | 94 mm |
| Height | 28 mm |
| Weight | 300 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
