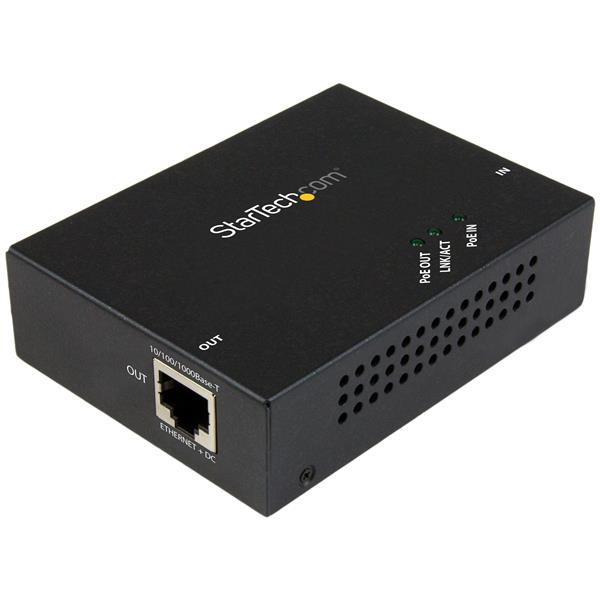

StarTech.com Gigabit PoE+ Extender - 802.3at/af -100m
Gigabit PoE+ Extender - 802.3at/af - 100m (330ft) - Power over Ethernet Extender - PoE Repeater Network Extender - Compact and Wall-Mountable Range Extender
- Brand: StarTech.com
- Category: Modems
- SKU: 2980652
- MPN: POEEXT1GAT
StarTech.com
StarTech.com 1-Port Gigabit PoE+ Extender - 802.3at and 802.3af -…
- SKU
- CNZ-IM-042311
- MPN
- POEEXT1GAT
- Rating
- No reviews yet
−15%
Overview
This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.
Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.
Unrestricted PoE+ range and convenience
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.
Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).
Daisy chain for longer distance and flexibility
Still need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.
You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).
Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.
You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.
The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.
Unrestricted PoE+ range and convenience
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.
Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).
Daisy chain for longer distance and flexibility
Still need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.
You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).
Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.
You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.
The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key features
- Type: Network repeater
- Maximum transfer distance: 100 m
- Data transfer rate: 2000 Mbit/s
- Auto MDIX IEEE: Yes
- Jumbo frames support: No
- Auto-negotiation: Yes
- Duplex system: Full, Half
- Plug and Play: Yes
- Mean time between failures (MTBF): 50000 h
- Cabling technology: 10/100/1000Base-T(X)
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- Power over Ethernet (PoE) ports quantity: 2
- Product colour: Black
- Housing material: Steel
- LED indicators: Activity, Link, PoE
- Certification: CE, FCC, TAA, REACH
- AC input voltage: 52 - 56 V
- Power consumption (max): 3.2 W
- Power over Ethernet (PoE): Yes
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 69 mm
- Depth: 94 mm
Specifications
Power
| AC input voltage | 52 - 56 V |
|---|---|
| Power consumption (max) | 3.2 W |
| Power over Ethernet (PoE) | Yes |
Design
| Product colour | Black |
|---|---|
| Housing material | Steel |
| LED indicators | Activity, Link, PoE |
| Certification | CE, FCC, TAA, REACH |
Network
| Cabling technology | 10/100/1000Base-T(X) |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
Performance
| Type | Network repeater |
|---|---|
| Maximum transfer distance | 100 m |
| Data transfer rate | 2000 Mbit/s |
| Auto MDIX IEEE | Yes |
| Jumbo frames support | No |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 50000 h |
Certificates
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Packaging data
| Package width | 135 mm |
|---|---|
| Package depth | 205 mm |
| Package height | 70 mm |
| Package weight | 343 g |
Packaging content
| Manual | Yes |
|---|
Ports & interfaces
| Power over Ethernet (PoE) ports quantity | 2 |
|---|
Weight & dimensions
| Width | 69 mm |
|---|---|
| Depth | 94 mm |
| Height | 25 mm |
| Weight | 193 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -10 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
