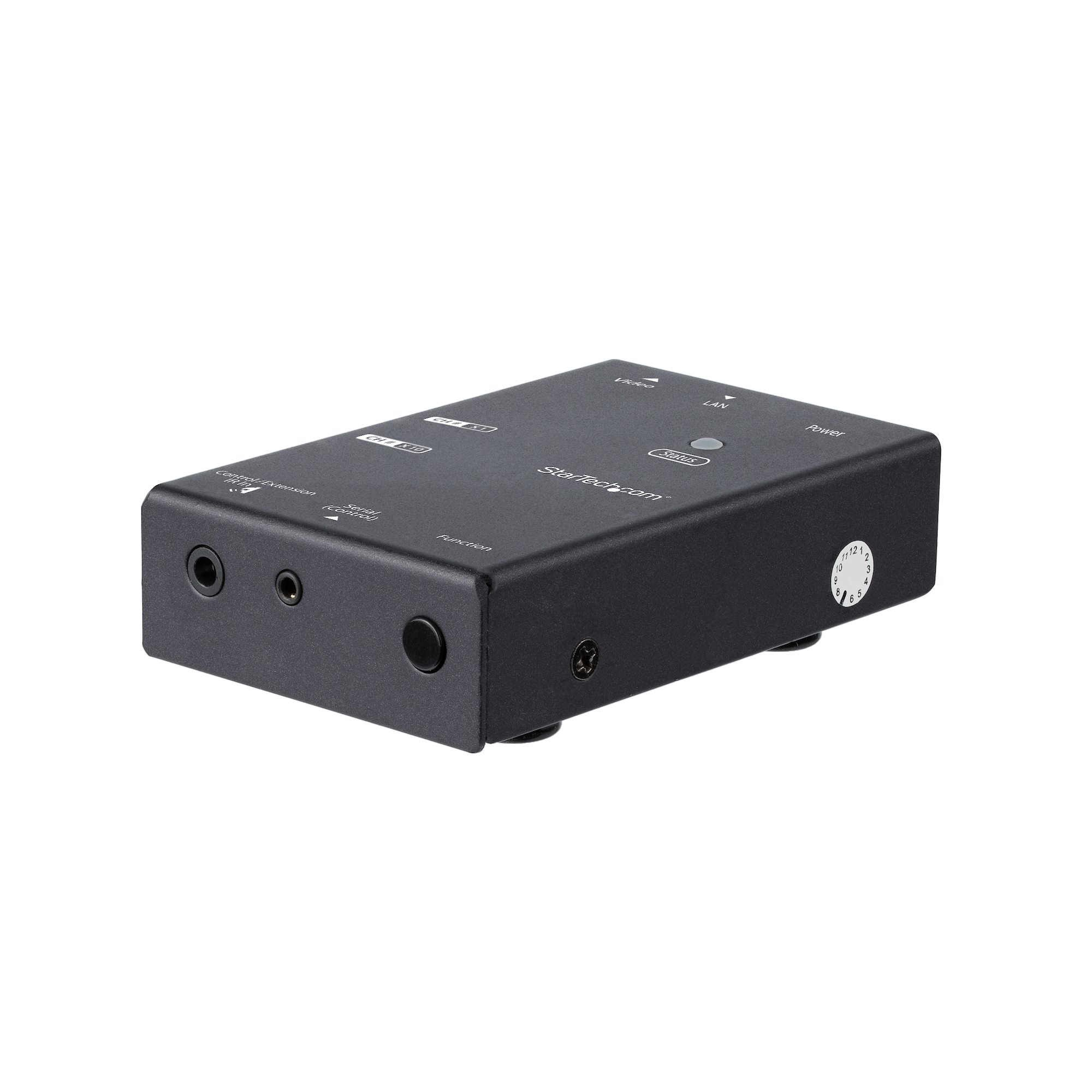

StarTech.com HDMI over IP Receiver for ST12MHDLNHK

HDMI over IP Receiver for ST12MHDLNHK - Video over IP - HDMI over IP Extender - 1080p

  • Brand: StarTech.com
  • Category: A/V Cables & Adapters
  • SKU: 4400778
  • MPN: ST12MHDLNHR
StarTech.com

StarTech.com HDMI over IP Receiver for ST12MHDLNHK - 1080p

SKU
CNZ-IM-021819
MPN
ST12MHDLNHR

Overview

Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure

The HDMI® over IP receiver works with the HDMI over IP Extender (ST12MHDLNHK) to distribute HDMI to an additional remote display. You can add multiple receivers (each sold separately) to easily distribute HDMI to multiple locations.

Customize your video distribution with a scalable solution

With additional receivers, you can scale your HDMI over IP kit installation to suit your needs. In a point-to-multipoint setup, you can route HDMI over IP to as many receivers as you need. For additional scalability, you can combine up to 99 different kits (ST12MHDLNHK) to create a multipoint-to-multipoint setup, where you can route different HDMI source signals to different displays. Mounting hardware and IR extenders are included for each transmitter and receiver to ensure tidy, professional installation and hassle-free remote operation.

Get brilliant video at HD 1080p

The receiver maintains your HD video signal, supporting resolutions up to 1080p. Maintaining your HD quality over IP makes it easy to distribute dynamic digital signage throughout your site to attract and engage customers.

Save your network bandwidth with video compression

Unlike some video-over-IP solutions that consume your bandwidth, this HDMI over IP solution uses video compression to distribute high-quality HDMI over your local area network, with minimal bandwidth requirements. Extending your HDMI using compression saves your network resources, avoiding the hassle of a separate video network.

The ST12MHDLNHR is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

  • Type: AV receiver
  • Maximum resolution: 1920 x 1200 pixels
  • Cable types supported: Cat5e
  • Maximum transfer distance: 15 m
  • Maximum refresh rate: 60 Hz
  • Audio output channels: 2.0 channels
  • LED indicators: Status
  • Supported video modes: 1080p
  • Cable length: 15.2 m
  • Material: Aluminium
  • Rack mounting: Yes
  • Daisy chain: Yes
  • Rubber feet: Yes
  • Product colour: Black
  • Certification: CE, REACH, FCC, TAA
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • RJ-45 input ports: 1
  • Number of HDMI outputs: 1
  • USB ports quantity: 1
  • USB connector type: Mini-USB B
  • Audio output: 1
  • AC input voltage: 100 - 240 V
  • Operating voltage: 5 V

Specifications

Power

AC input voltage100 - 240 V
Operating voltage5 V
Input current0.3 A
Output current1 A
External power adapterYes

Features

TypeAV receiver
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5e
Maximum transfer distance15 m
Maximum refresh rate60 Hz
Audio output channels2.0 channels
LED indicatorsStatus
Supported video modes1080p
Cable length15.2 m
MaterialAluminium
Rack mountingYes
Daisy chainYes
Rubber feetYes
Product colourBlack
CertificationCE, REACH, FCC, TAA

Logistics data

Master (outer) case width325 mm
Master (outer) case length410 mm
Master (outer) case height265 mm
Products per master (outer) case12 pc(s)

Packaging data

Package width155 mm
Package depth235 mm
Package height65 mm
Package weight800 g

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45), Serial, USB
Included power plug typesANZ, EU, NA, UK
ManualYes
IR receiver includedYes
Mounting kitYes

Technical details

Compliance certificatesRoHS

Ports & interfaces

Connectivity technologyWired
Ethernet LANYes
RJ-45 input ports1
Number of HDMI outputs1
USB ports quantity1
USB connector typeMini-USB B
Audio output1

Weight & dimensions

Width97 mm
Depth130 mm
Height24 mm
Weight213 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%
