STARTECH.COM HP JD118B COMPATIBLE SFP FIBER MODULE - 1000BASE-SX - LIFETIME WARRANTY LTW
Networking > Network Accessories
- Brand: STARTECH
- Category: Networking
- SKU: JD118BST
- MPN: JD118BST
STARTECH

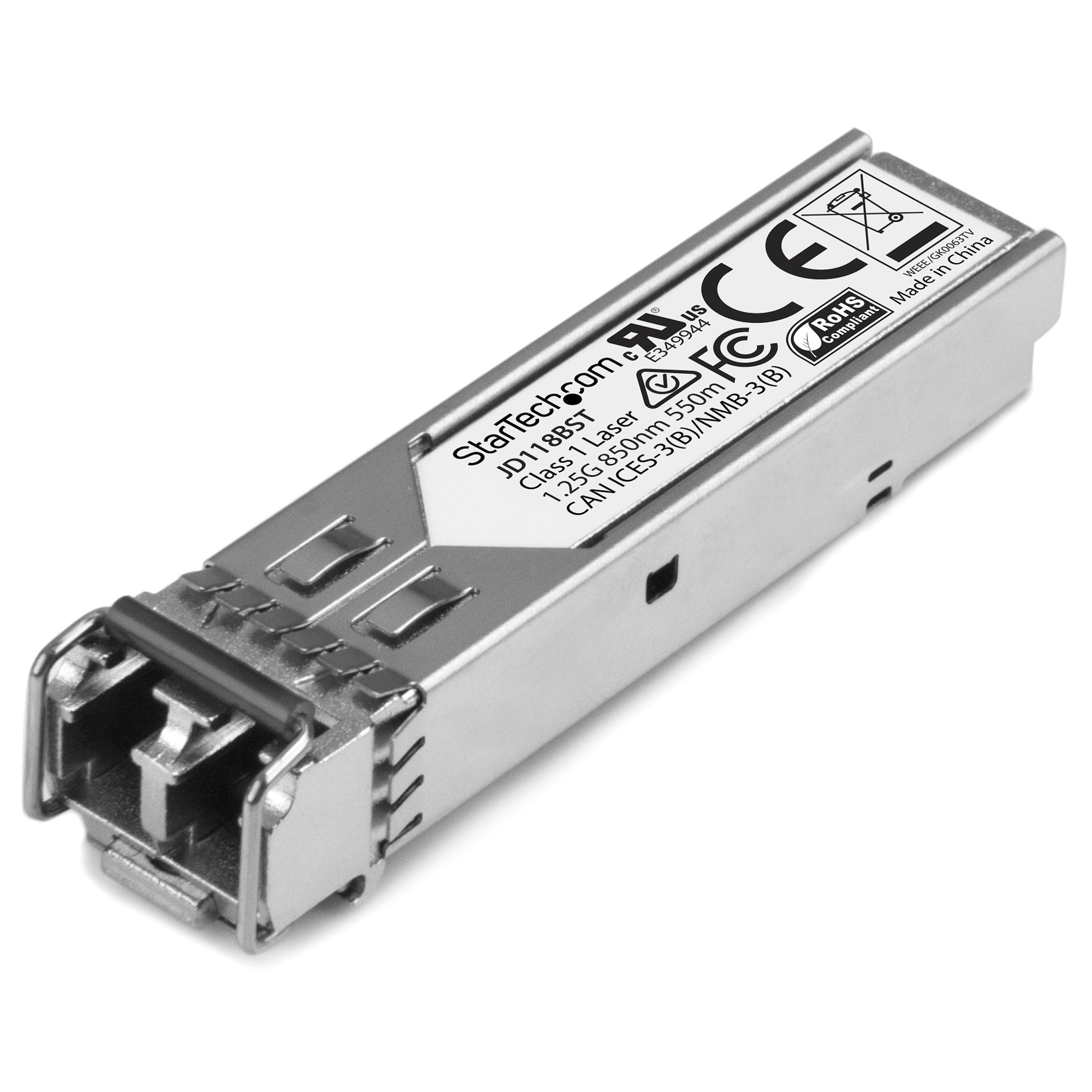

StarTech.com HP JD118B Compatible SFP Transceiver Module -…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
Overview
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty
The JD118BST is an HPE JD118B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 3,381,761 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The JD118BST is an HPE JD118B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 3,381,761 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: SX
- Maximum transfer distance: 550 m
- Wavelength: 850 nm
- Networking standards: IEEE 802.3z
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Housing material: Aluminium
- Hot-swap: Yes
- Mean time between failures (MTBF): 3381761 h
- Power consumption (typical): 1 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 13.7 mm
- Depth: 56.6 mm
- Height: 12.5 mm
Specifications
Power
| Power consumption (typical) | 1 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3381761 h |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UR |
Logistics data
| Master (outer) case width | 250 mm |
|---|---|
| Master (outer) case length | 300 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 203 mm |
| Products per master (outer) case | 36 pc(s) |
| Country of origin | China |
Packaging data
| Package width | 118 mm |
|---|---|
| Package depth | 93 mm |
| Package height | 32 mm |
| Package weight | 46 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 13.7 mm |
|---|---|
| Depth | 56.6 mm |
| Height | 12.5 mm |
| Weight | 18 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
