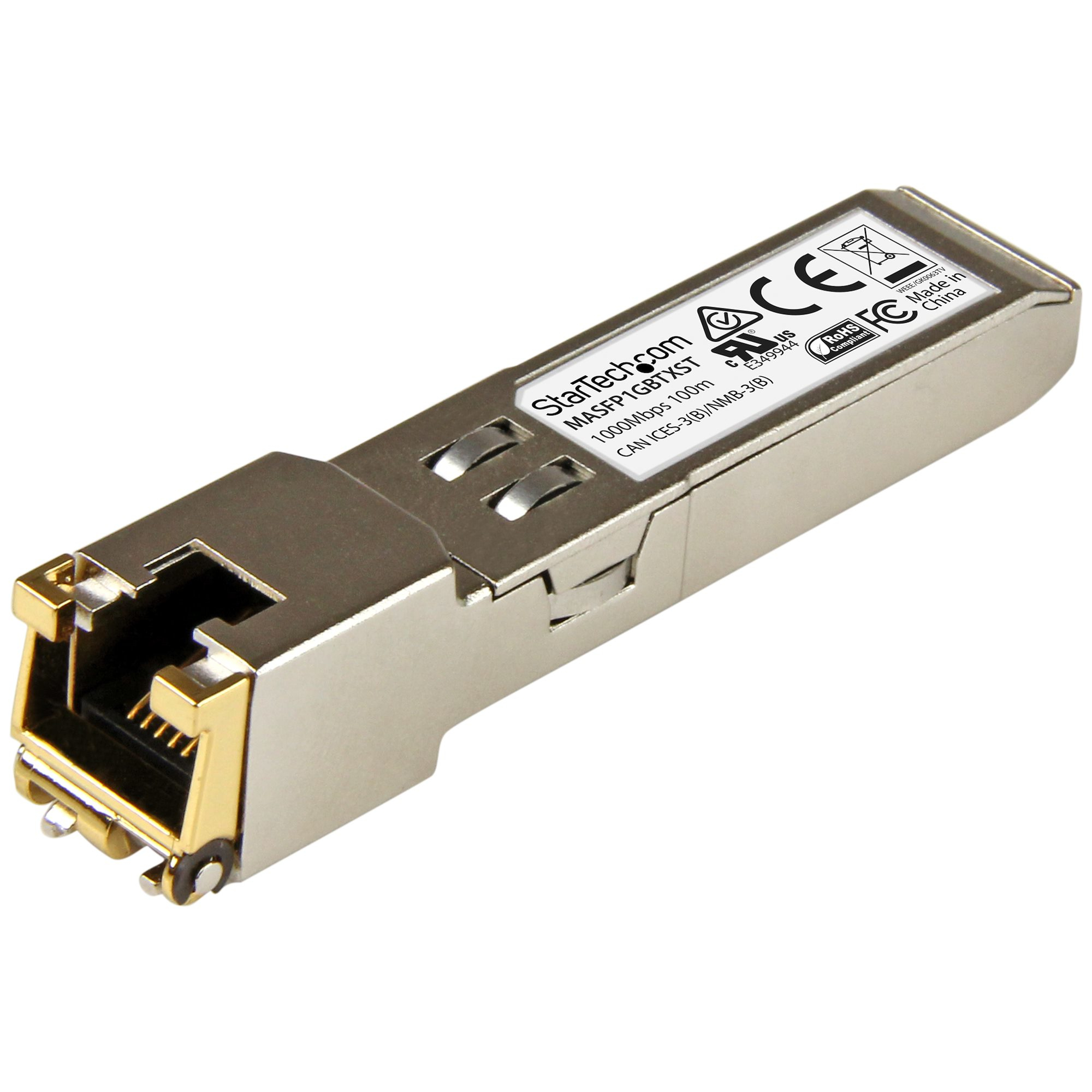

StarTech.com MA-SFP-1GB-TX 1000Base-T SFP Transceiver
Cisco Meraki MA-SFP-1GB-TX Compatible SFP - Gigabit RJ45 Copper 1000Base-T SFP Transceiver Module - 100 m (328 ft) - Mini-GBIC with Lifetime Warranty - Copper RJ45 SFP
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 3578242
- MPN: MASFP1GBTXST
StarTech.com
StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module -…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
Overview
10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Copper
- Maximum data transfer rate: 1000 Mbit/s
- Interface type: SFP
- SFP transceiver standard: TX
- Maximum transfer distance: 100 m
- Ethernet LAN: Yes
- Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
- Ethernet LAN (RJ-45) ports: 1
- Duplex system: Full
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Digital Diagnostics Monitoring (DDM): No
- Product colour: Silver
- Housing material: Aluminium
- Hot-Plug support: Yes
- Mean time between failures (MTBF): 4655371 h
- Power consumption (typical): 1.3 W
- Compliance certificates: CE, RoHS
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 18 mm
- Depth: 68 mm
- Height: 13.8 mm
Specifications
Power
| Power consumption (typical) | 1.3 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 4655371 h |
Performance
| SFP transceiver type | Copper |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| SFP transceiver standard | TX |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN (RJ-45) ports | 1 |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Logistics data
| Master (outer) case width | 260 mm |
|---|---|
| Master (outer) case length | 305 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 205 mm |
| Products per master (outer) case | 36 pc(s) |
| Country of origin | China |
Packaging data
| Package width | 118 mm |
|---|---|
| Package depth | 93 mm |
| Package height | 35 mm |
| Package weight | 51 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 18 mm |
|---|---|
| Depth | 68 mm |
| Height | 13.8 mm |
| Weight | 21 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
