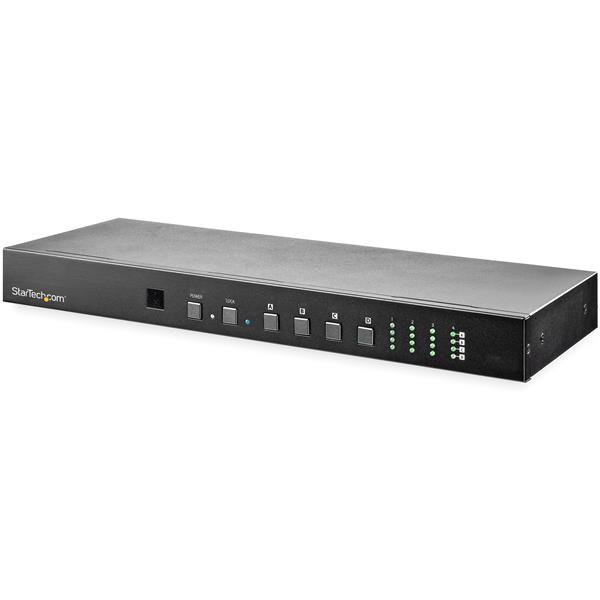

StarTech.com Matrix Switch - 4x4 HDMI w/Audio - 4K 60
4x4 HDMI Matrix Switch with Audio and Ethernet Control - 4K 60Hz - HDMI Switcher Box - Rack Mountable - With RS232 Control
- Brand: StarTech.com
- Category: Video Cables
- SKU: 4461948
- MPN: VS424HD4K60
StarTech.com
StarTech.com 4x4 HDMI Matrix Switch with Audio and Ethernet Control…
- SKU
- CNZ-IM-042978
- MPN
- VS424HD4K60
- Rating
- No reviews yet
−23%
Overview
HDMI Switcher Box | Rack Mountable | Remote Ethernet & RS232 Control
This 4x4 HDMI matrix switch lets you share four HDMI video sources between four independent displays or projectors, and switch between which source is active on each display device.
True 4K at 60Hz
The HDMI switcher box provides a high level of audio and video performance, with superior contrast and crisp, clear imagery. With support for resolutions up to 4K 60Hz (4:4:4 pixel format, 8-bit color depth) and HDR, the matrix switch is ideal for conventions or trade shows, restaurants and classroom settings, as well as hospital/medical applications.
Plus, the 4K 60Hz HDMI switch is backward compatible with earlier versions of HDMI, so it's easy to use with your existing devices and displays.
Optimized Functionality
This 4x4 matrix switch is equipped with convenient push-button switching, WebGUI and RS232 control, and also features a front-panel LED display for easy status monitoring.
The HDMI switch box enables you to switch each input, meaning that different A/V sources can be shown on each output, or a single source can be output to all displays.
Ultimate Convenience
The matrix switcher includes a remote control and IR extender module that provides simple control from a distance, and is designed to save space with a standalone or rack-mounting option (ear-mounts included).
VS424HD4K60 is backed by a StarTech.com 2 -year warranty and free lifetime technical support.
The StarTech.com Advantage
- Share and switch four distinct HDMI A/V signals between four separate displays in a matrix configuration
- Enjoy astonishing picture quality with support for Ultra HD resolutions up to 4K 60Hz
- Install the HDMI switcher as a standalone device, or rack-mount it
This 4x4 HDMI matrix switch lets you share four HDMI video sources between four independent displays or projectors, and switch between which source is active on each display device.
True 4K at 60Hz
The HDMI switcher box provides a high level of audio and video performance, with superior contrast and crisp, clear imagery. With support for resolutions up to 4K 60Hz (4:4:4 pixel format, 8-bit color depth) and HDR, the matrix switch is ideal for conventions or trade shows, restaurants and classroom settings, as well as hospital/medical applications.
Plus, the 4K 60Hz HDMI switch is backward compatible with earlier versions of HDMI, so it's easy to use with your existing devices and displays.
Optimized Functionality
This 4x4 matrix switch is equipped with convenient push-button switching, WebGUI and RS232 control, and also features a front-panel LED display for easy status monitoring.
The HDMI switch box enables you to switch each input, meaning that different A/V sources can be shown on each output, or a single source can be output to all displays.
Ultimate Convenience
The matrix switcher includes a remote control and IR extender module that provides simple control from a distance, and is designed to save space with a standalone or rack-mounting option (ear-mounts included).
VS424HD4K60 is backed by a StarTech.com 2 -year warranty and free lifetime technical support.
The StarTech.com Advantage
- Share and switch four distinct HDMI A/V signals between four separate displays in a matrix configuration
- Enjoy astonishing picture quality with support for Ultra HD resolutions up to 4K 60Hz
- Install the HDMI switcher as a standalone device, or rack-mount it
Key features
- Product type: AV matrix switcher
- Maximum resolution: 4096 x 2160 pixels
- Bandwidth: 18 Gbit/s
- Audio channels: 7.1
- Supported resolutions: 4096 x 2160 3840 x 2160 1920 x 1200
- Housing colour: Black
- Housing material: Metal
- Rack mounting: Yes
- LED indicators: Activity, Power
- Remote control included: Yes
- Certification: TAA, CE, FCC, REACH
- Built-in display: No
- HDMI input ports quantity: 4
- HDMI output ports quantity: 4
- HDMI version: 2.0
- USB connector type: Mini-USB B
- USB ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- RS-232 ports: 1
- Remote (IR) input: 1
- AC input voltage: 100 - 240 V
- Input current: 1.5 A
- Output current: 2700 mA
- Output voltage: 24 V
Specifications
Power
| AC input voltage | 100 - 240 V |
|---|---|
| Input current | 1.5 A |
| Output current | 2700 mA |
| Output voltage | 24 V |
Design
| Housing colour | Black |
|---|---|
| Housing material | Metal |
| Rack mounting | Yes |
| LED indicators | Activity, Power |
| Remote control included | Yes |
| Certification | TAA, CE, FCC, REACH |
Display
| Built-in display | No |
|---|
Features
| Product type | AV matrix switcher |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Bandwidth | 18 Gbit/s |
| Audio channels | 7.1 |
| Supported resolutions | 4096 x 2160 3840 x 2160 1920 x 1200 |
Logistics data
| Harmonized System (HS) code | 85299097 |
|---|
Packaging content
| Manual | Yes |
|---|---|
| Mounting brackets included | Yes |
| IR receiver included | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| HDMI input ports quantity | 4 |
|---|---|
| HDMI output ports quantity | 4 |
| HDMI version | 2.0 |
| USB connector type | Mini-USB B |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
Weight & dimensions
| Width | 160 mm |
|---|---|
| Depth | 437 mm |
| Height | 43 mm |
| Weight | 2 kg |
| Package width | 292 mm |
| Package depth | 525 mm |
| Package height | 95 mm |
| Package weight | 4 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
