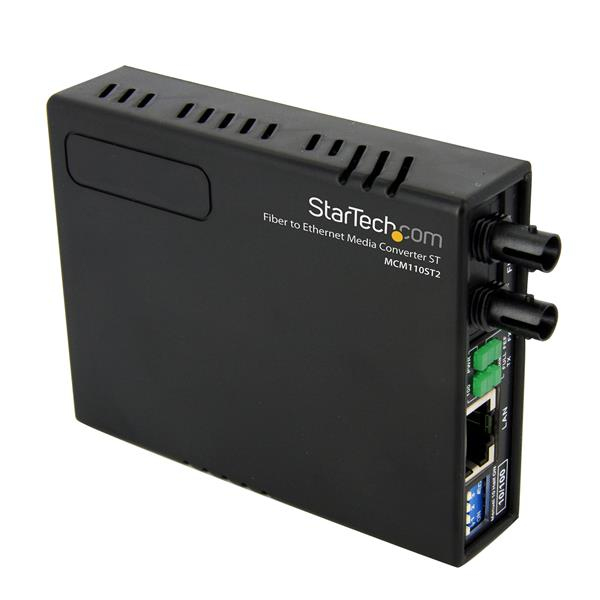

StarTech.com MM FIBER ETHERNET MEDIA CONVERTER ST 2KM
10/100 MULTI MODE FIBER COPPER FAST ETHERNET MEDIA CONVERTER ST 2 KM
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 2951649
- MPN: MCM110ST2
StarTech.com
StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
Overview
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
Key features
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 10Base-T, 100BASE-FX, 100Base-TX
- Networking standards: IEEE 802.3, IEEE 802.3u
- Ethernet LAN data rates: 10,100 Mbit/s
- Data transfer rate: 100 Mbit/s
- Duplex system: Full, Half
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Wavelength-division multiplexing (WDM): No
- Sensitivity: -31 dBmW
- Link budget: 11 dB
- Mean time between failures (MTBF): 65000 h
- Internal: No
- LED indicators: Yes
- Housing material: Plastic
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber optic connector: ST
- Input voltage: 100 - 240 V
- Output voltage: 12 V
- Output current: 0.2 A
- Power consumption (typical): 2.4 W
- Power over Ethernet (PoE): No
- Power plug type: Type M
Specifications
Power
| Input voltage | 100 - 240 V |
|---|---|
| Output voltage | 12 V |
| Output current | 0.2 A |
| Power consumption (typical) | 2.4 W |
| Power over Ethernet (PoE) | No |
| Power plug type | Type M |
Network
| Maximum data transfer rate | 100 Mbit/s |
|---|---|
| Converter input interface | 10Base-T, 100BASE-FX, 100Base-TX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Data transfer rate | 100 Mbit/s |
| Duplex system | Full, Half |
Features
| Internal | No |
|---|---|
| LED indicators | Yes |
| Housing material | Plastic |
Performance
| Maximum transfer distance | 2000 m |
|---|---|
| Wavelength | 1310 nm |
| Wavelength-division multiplexing (WDM) | No |
| Sensitivity | -31 dBmW |
| Link budget | 11 dB |
| Mean time between failures (MTBF) | 65000 h |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, TAA, REACH |
Packaging data
| Package width | 145 mm |
|---|---|
| Package depth | 175 mm |
| Package height | 61 mm |
| Package weight | 273 g |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | ST |
Weight & dimensions
| Width | 75 mm |
|---|---|
| Depth | 95 mm |
| Height | 20 mm |
| Weight | 82 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
