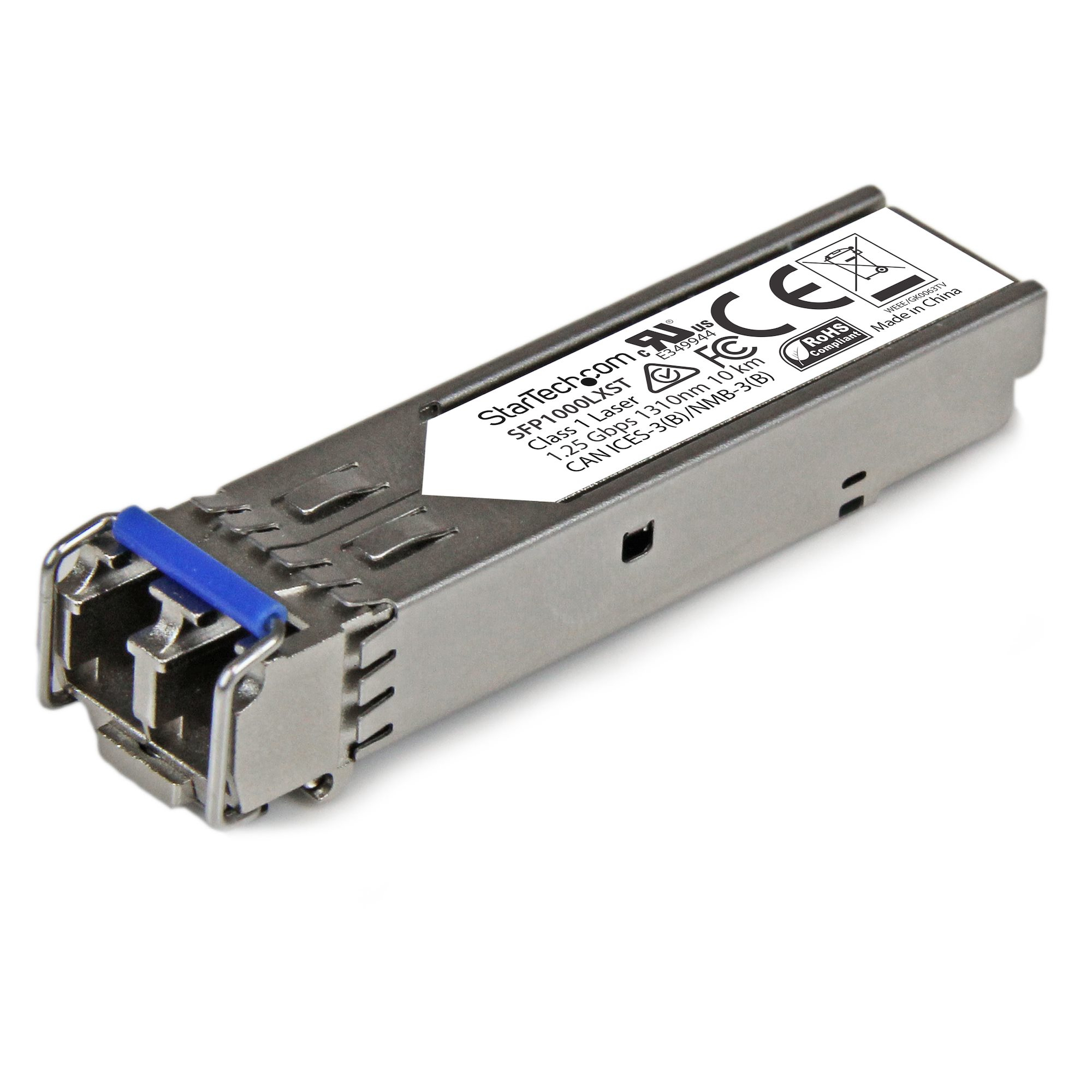

StarTech.com MSA Compliant 1000Base-LX SFP - SM 10 km
MSA Compliant 1000Base-LX SFP - Gigabit SFP Module with DDM / DOM - Single mode SFP - LC - 10 km (6.2 mi) - 1310nm - Lifetime Warranty 1G SFP - SMF SFP - Gigabit Transceiver
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 3715532
- MPN: SFP1000LXST
StarTech.com
StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-LX~MSA…
- SKU
- CNZ-IM-021517
- MPN
- SFP1000LXST
- Rating
- No reviews yet
Overview
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFP1000LXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The SFP1000LXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: LX
- Maximum transfer distance: 10000 m
- Wavelength: 1310 nm
- Networking standards: IEEE 802.3z
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): Yes
- Wavelength-division multiplexing (WDM): No
- Product colour: Silver
- Housing material: Aluminium
- Hot-Plug support: Yes
- Power consumption (typical): 1 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 15 mm
- Depth: 59 mm
- Height: 12 mm
Specifications
Power
| Power consumption (typical) | 1 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-Plug support | Yes |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UR |
Logistics data
| Master (outer) case width | 200 mm |
|---|---|
| Master (outer) case length | 302 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 256 mm |
| Products per master (outer) case | 35 pc(s) |
| Country of origin | China |
Packaging data
| Package width | 92 mm |
|---|---|
| Package depth | 117 mm |
| Package height | 33 mm |
| Package weight | 47 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 15 mm |
|---|---|
| Depth | 59 mm |
| Height | 12 mm |
| Weight | 18 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
