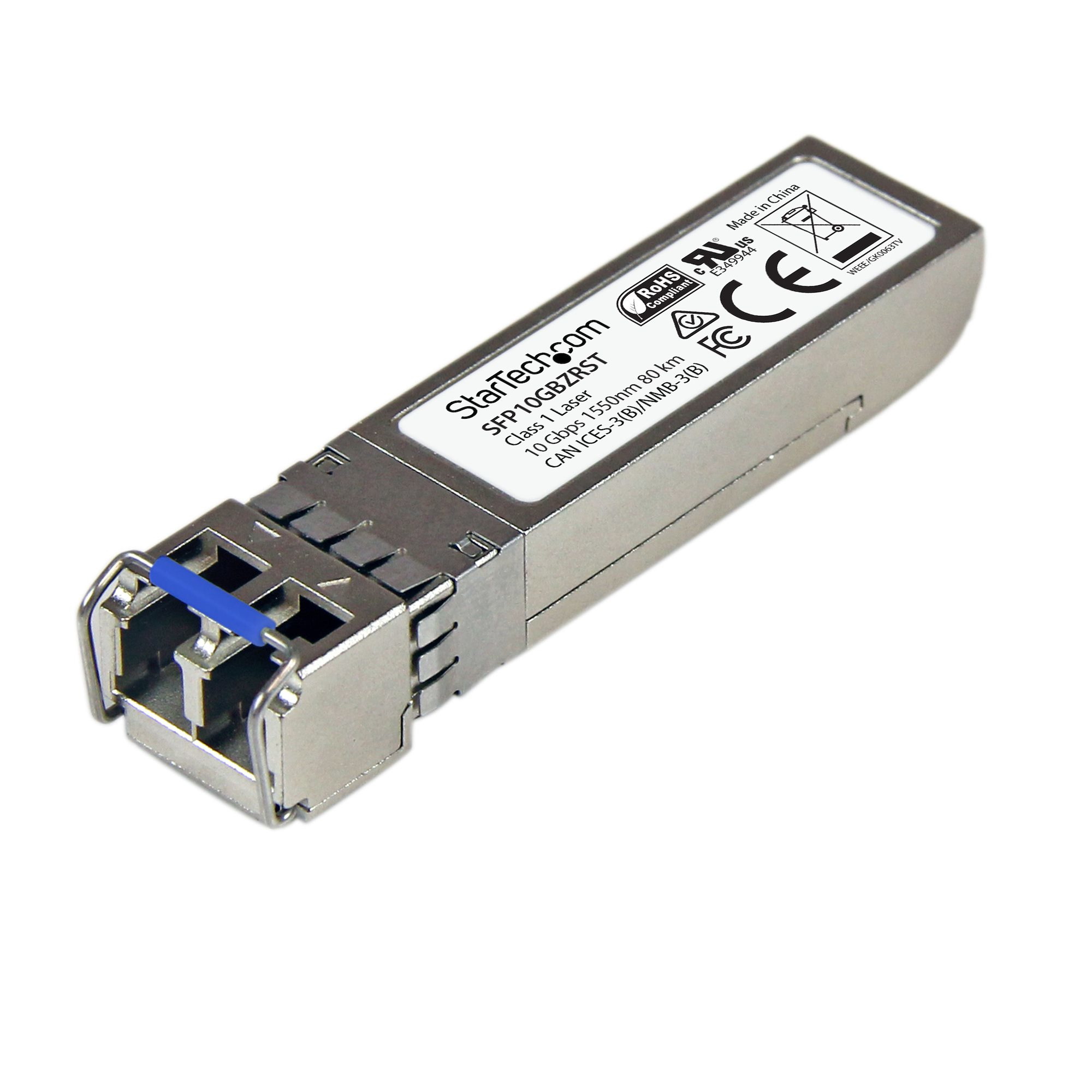

StarTech.com MSA Compliant 10GBase-ZR SFP+ - SM 80 km
MSA Compliant 10GBase-ZR SFP+ - 10G SFP+ Module - Single-mode SFP+ Transceiver w/ Lifetime Warranty - LC - 80 km (49.7 mi) - 1550nm - 10 Gigabit Fiber Transceiver - SM SFP+ Module
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 3715548
- MPN: SFP10GBZRST
StarTech.com
StarTech.com MSA Compliant SFP+ Transceiver Module - 10GBASE-ZR~MSA…
- SKU
- CNZ-IM-021530
- MPN
- SFP10GBZRST
- Rating
- No reviews yet
Overview
10 Gbps | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty
The SFP10GBZRST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 10GBASE-ZR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1550 nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Less than 1.6 Watts
• DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The SFP10GBZRST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 10GBASE-ZR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1550 nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Less than 1.6 Watts
• DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 10000 Mbit/s
- Interface type: SFP+
- Single-mode fiber (SMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: ZR
- Maximum transfer distance: 80000 m
- Wavelength: 1550 nm
- Networking standards: IEEE 802.3ae
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): Yes
- Wavelength-division multiplexing (WDM): No
- Product colour: Silver
- Housing material: Aluminium
- Hot-Plug support: Yes
- Power consumption (typical): 1.6 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 13.9 mm
- Depth: 58.4 mm
- Height: 12.6 mm
Specifications
Power
| Power consumption (typical) | 1.6 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-Plug support | Yes |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | ZR |
| Maximum transfer distance | 80000 m |
| Wavelength | 1550 nm |
| Networking standards | IEEE 802.3ae |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UR |
Logistics data
| Master (outer) case width | 315 mm |
|---|---|
| Master (outer) case length | 400 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 318 mm |
| Products per master (outer) case | 80 pc(s) |
Packaging data
| Package width | 90 mm |
|---|---|
| Package depth | 115 mm |
| Package height | 30 mm |
| Package weight | 54 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 13.9 mm |
|---|---|
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 24 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
