StarTech.com Multiport Adapter USB C HDMI SD UHS-II
USB C Multiport Adapter - 4K HDMI - SD / SDHC / SDXC - Power Delivery (USB PD) - USB-C to USB Adapter - USB Type C Adapter
- Brand: StarTech.com
- Category: Notebook/tablet Accessories
- SKU: 4119191
- MPN: DKT3CHSD4GPD
StarTech.com
StarTech.com USB-C Multiport Adapter - SD (UHS-II) Card Reader -…
- SKU
- CNZ-IM-022072
- MPN
- DKT3CHSD4GPD
- Rating
- No reviews yet
Overview

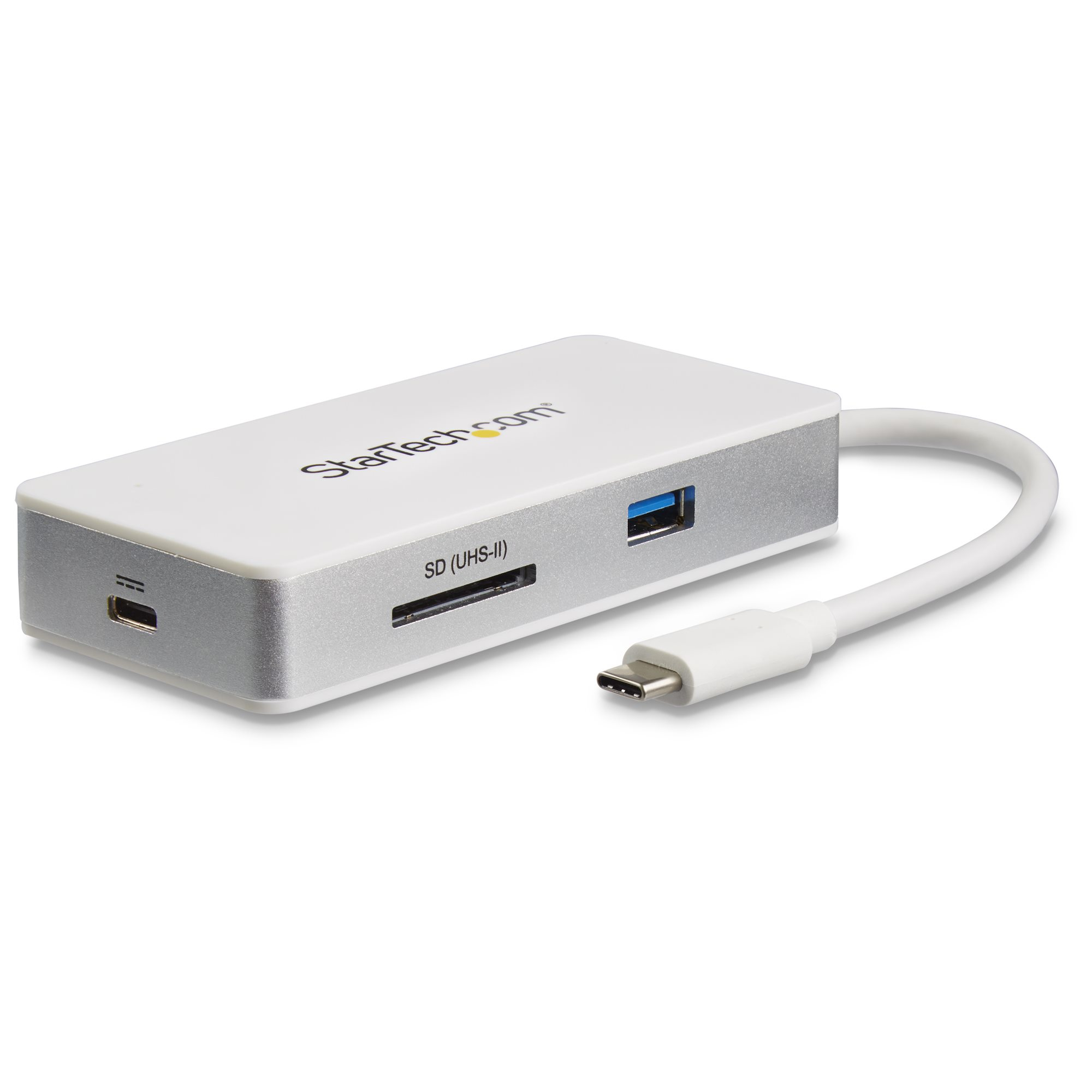

Add more connectivity to your USB-C laptop, with HDMI, an ultra high-speed SD 4.0 card reader, Gigabit Ethernet and a USB 3.0 port, plus power and charge as you work
Expand the connectivity of your Thunderbolt™ 3/USB-C™ port enabled laptop. Compatible with Mac and Windows, this universal USB-C multiport adapter lets you turn your laptop into a powerful workstation, anywhere you go. The USB-C adapter provides a 4K Ultra HD HDMI® video output, an ultra high-speed SD™ 4.0 card reader (with UHS-II support), a USB 3.0 Type-A port and one Gigabit Ethernet port, through your laptop’s USB-C port.
The adapter provides up to 100W charging power with USB Power Delivery 2.0, so you can power the adapter and your laptop at the same time using a USB Type-C™ power adapter.
Connect a 4K Ultra HD monitor
The USB-C multiport adapter offers a 4K Ultra HD HDMI port (with audio), so you can easily connect a high-resolution monitor (4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz).
Fast SD card access
The USB-C multiport adapter features a memory card slot, providing fast read and write access for SD and microSD™ (with adapter) memory cards through USB 3.0. The card reader offers SD 4.0 and UHS-II support, allowing high-speed file transfers at up to 312MB/s. It’s ideal for transferring photos or videos from your SD cards to your USB-C enabled laptop or tablet.
The ports you need most
The Gigabit Ethernet port on the multiport adapter ensures reliable wired network access. Plus, an additional USB 3.0 port (USB Type-A) lets you connect a peripheral device like your mouse or flash drive.
The DKT3CHSD4GPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Expand the connectivity of your Thunderbolt™ 3/USB-C™ port enabled laptop. Compatible with Mac and Windows, this universal USB-C multiport adapter lets you turn your laptop into a powerful workstation, anywhere you go. The USB-C adapter provides a 4K Ultra HD HDMI® video output, an ultra high-speed SD™ 4.0 card reader (with UHS-II support), a USB 3.0 Type-A port and one Gigabit Ethernet port, through your laptop’s USB-C port.
The adapter provides up to 100W charging power with USB Power Delivery 2.0, so you can power the adapter and your laptop at the same time using a USB Type-C™ power adapter.
Connect a 4K Ultra HD monitor
The USB-C multiport adapter offers a 4K Ultra HD HDMI port (with audio), so you can easily connect a high-resolution monitor (4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz).
Fast SD card access
The USB-C multiport adapter features a memory card slot, providing fast read and write access for SD and microSD™ (with adapter) memory cards through USB 3.0. The card reader offers SD 4.0 and UHS-II support, allowing high-speed file transfers at up to 312MB/s. It’s ideal for transferring photos or videos from your SD cards to your USB-C enabled laptop or tablet.
The ports you need most
The Gigabit Ethernet port on the multiport adapter ensures reliable wired network access. Plus, an additional USB 3.0 port (USB Type-A) lets you connect a peripheral device like your mouse or flash drive.
The DKT3CHSD4GPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- HDMI ports quantity: 1
- Microphone in: No
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Wake-on-LAN ready: Yes
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- Card reader integrated: Yes
- Compatible memory cards: MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
- Data transfer rate: 5 Gbit/s
- Maximum digital resolution: 4096 x 2160 pixels
- Product colour: Silver, White
- UASP support: Yes
- Housing material: Aluminium, Plastic
- Brand compatibility: Any brand
- Certification: CE, FCC, REACH
- Power source type: USB
- Power supply: 100 W
Specifications
Power
| Power source type | USB |
|---|---|
| Power supply | 100 W |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Software
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|---|---|
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
Performance
| Card reader integrated | Yes |
|---|---|
| Compatible memory cards | MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour | Silver, White |
| UASP support | Yes |
| Housing material | Aluminium, Plastic |
| Brand compatibility | Any brand |
| Certification | CE, FCC, REACH |
Logistics data
| Products per master (outer) case | 60 pc(s) |
|---|---|
| Master (outer) case width | 285 mm |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 400 mm |
| Harmonized System (HS) code | 84733020 |
Other features
| Cable length | 0.15 m |
|---|---|
| Chipset | VIA/VLI - VL813, VIA/VLI - VL101, PS176 (HDMI 2.0), RTS5329, RTL8153 |
Packaging data
| Package width | 116 mm |
|---|---|
| Package depth | 170 mm |
| Package height | 25 mm |
| Package weight | 153 g |
Packaging content
| Quick start guide | Yes |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Microphone in | No |
Weight & dimensions
| Width | 50 mm |
|---|---|
| Depth | 110 mm |
| Height | 18 mm |
| Weight | 92 g |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
