StarTech.com QSFP+ - Extreme Networks 10320 Compt.

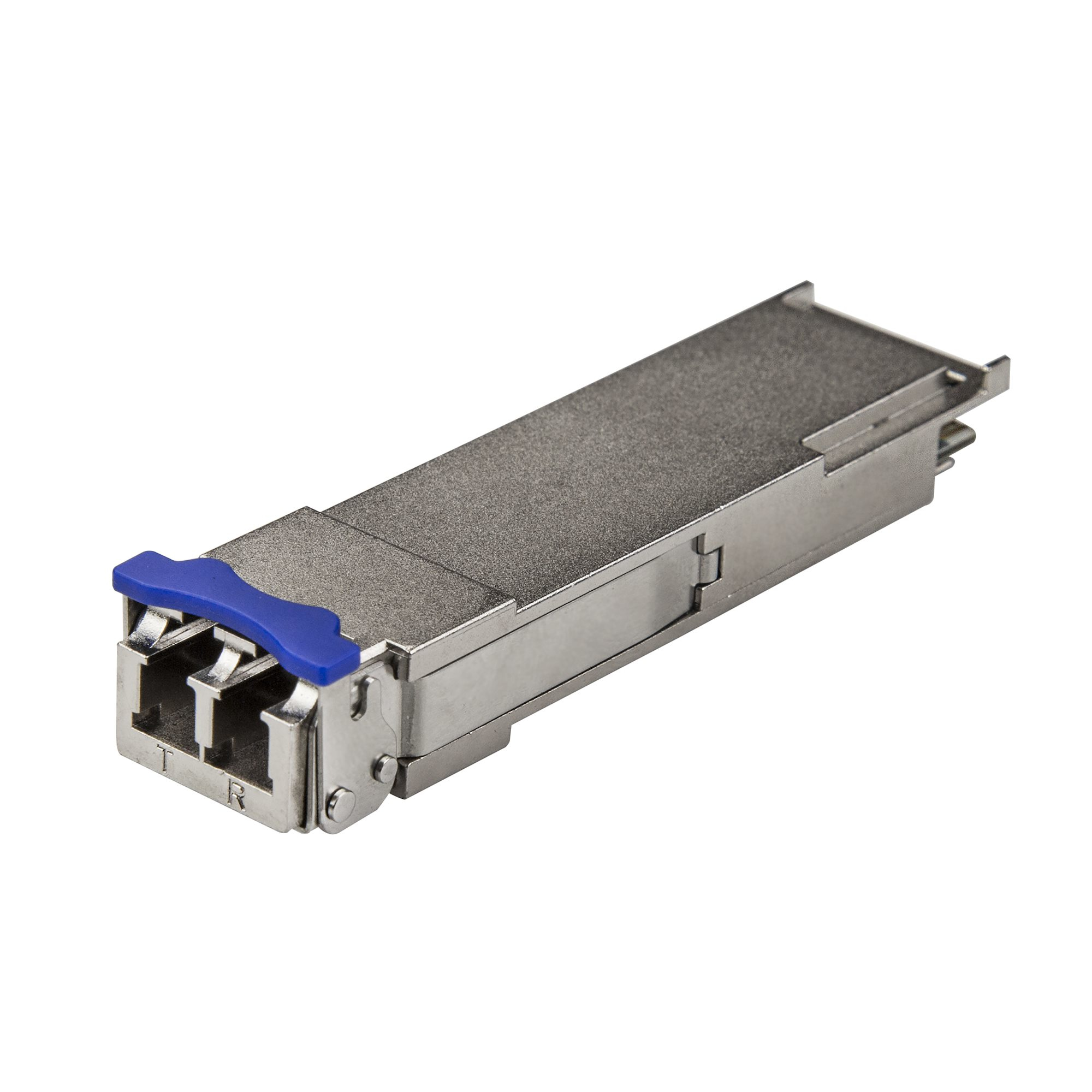

Extreme Networks 10320 Compatible QSFP+ Module - 40GBase-LR4 Fiber Optical Transceiver (10320-ST)
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 4640497
- MPN: 10320-ST
StarTech.com
StarTech.com Extreme Networks 10320 Compatible QSFP+ Module -…
- SKU
- CNZ-IM-021675
- MPN
- 10320-ST
- Rating
- No reviews yet
Overview
40 Gbps | Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The 10320-ST is an Extreme Networks® 10320 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 95,832,026 hours
• Power Consumption:
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The 10320-ST is an Extreme Networks® 10320 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 95,832,026 hours
• Power Consumption:
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 41250 Mbit/s
- Interface type: QSFP+
- Single-mode fiber (SMF) supported: Yes
- Multi-mode fiber (MMF) supported: No
- Fiber optic connector: LC
- SFP transceiver standard: LR4
- Maximum transfer distance: 10000 m
- Tx wavelength (min): 1270 nm
- Tx wavelength (max): 1330 nm
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): No
- Product colour: Silver
- Hot-swap: Yes
- Mean time between failures (MTBF): 95832026 h
- Brand compatibility: Extreme Networks
- Compatible products: 10320
- Power consumption (typical): 2.5 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR
- Width: 18.3 mm
- Depth: 72 mm
- Height: 13 mm
- Weight: 44 g
Specifications
Power
| Power consumption (typical) | 2.5 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 95832026 h |
| Brand compatibility | Extreme Networks |
| Compatible products | 10320 |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 41250 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Tx wavelength (min) | 1270 nm |
| Tx wavelength (max) | 1330 nm |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | No |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UR |
Logistics data
| Master (outer) case width | 340 mm |
|---|---|
| Master (outer) case length | 420 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 350 mm |
| Products per master (outer) case | 100 pc(s) |
Packaging data
| Package width | 90 mm |
|---|---|
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 18.3 mm |
|---|---|
| Depth | 72 mm |
| Height | 13 mm |
| Weight | 44 g |
