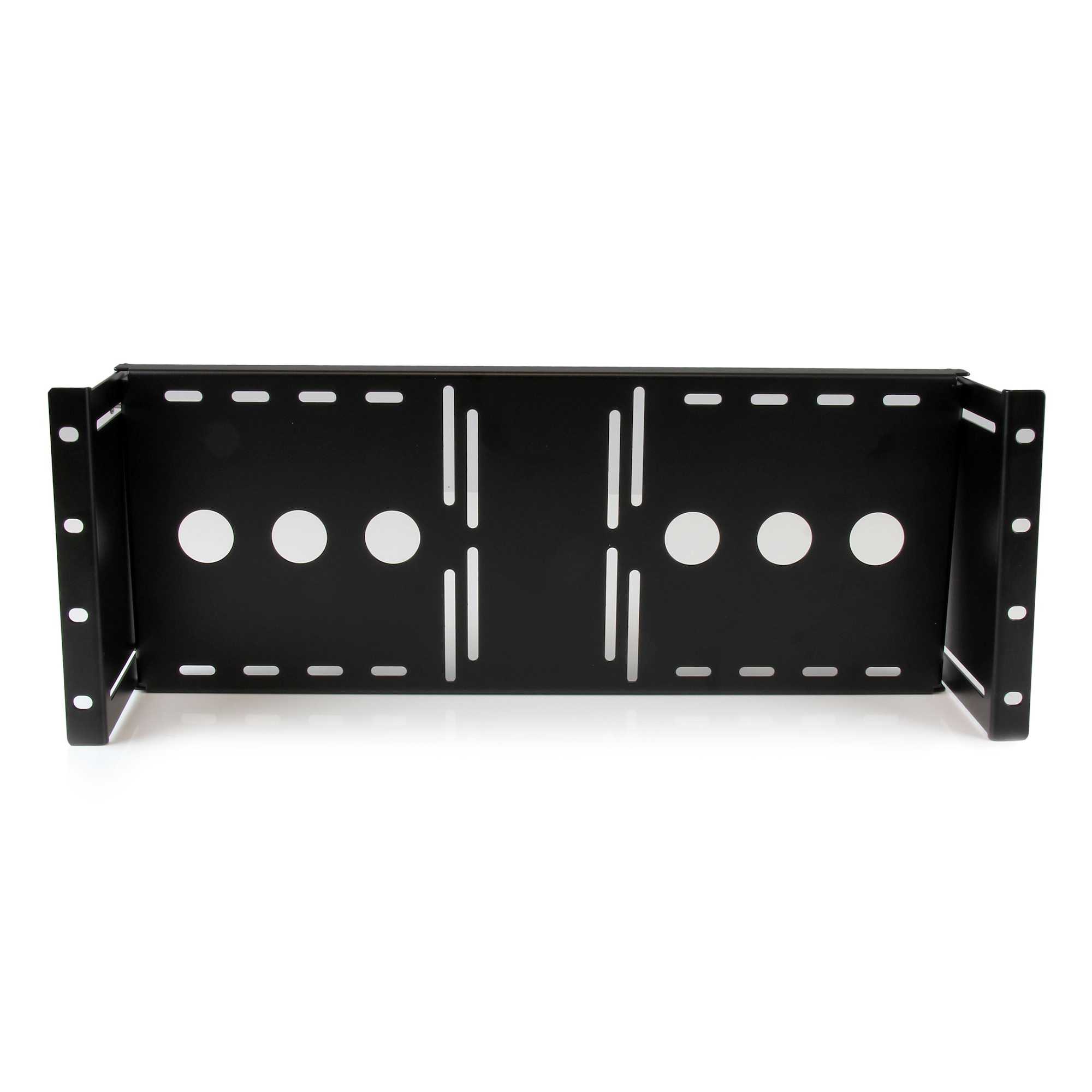

StarTech.com Rack Cabinet LCD Monitor Mount Bracket
Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet
- Brand: StarTech.com
- Category: Racks & Cabinets
- SKU: 2902531
- MPN: RKLCDBK
StarTech.com
StarTech.com Universal VESA LCD Monitor Mounting Bracket for 19in…
- SKU
- CNZ-IM-042269
- MPN
- RKLCDBK
- Rating
- No reviews yet
−12%
Overview
Mount a 17-19 inch LCD panel into a standard 19 inch rack/cabinet
The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.
The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).
Backed by a StarTech.com Lifetime warranty.
The StarTech.com Advantage
The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.
The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).
Backed by a StarTech.com Lifetime warranty.
The StarTech.com Advantage
Key features
- Type: Mounting bracket
- Product colour: Black
- Housing material: Steel
- Rack capacity: 4U
- Compliance industry standards: EIA RS310-D
- Certification: CE, REACH, TAA
- Width: 842 mm
- Depth: 107.5 mm
- Height: 177 mm
- Mounting depth (min): 0 mm
- Mounting depth (max): 8.89 cm
- Weight: 1.7 kg
- Package width: 54 mm
- Package depth: 472 mm
- Package height: 220 mm
- Package weight: 2 kg
- Mounting kit: Yes
- Quick installation guide: Yes
- Screws included: Yes
- Screw type: M5, M4
- Number of screws: 16
- Nuts included: Yes
- Number of nuts: 8
- Washers included: Yes
Specifications
Features
| Type | Mounting bracket |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Rack capacity | 4U |
| Compliance industry standards | EIA RS310-D |
| Certification | CE, REACH, TAA |
Logistics data
| Master (outer) case width | 524 mm |
|---|---|
| Master (outer) case length | 187 mm |
| Master (outer) case height | 590 mm |
| Products per master (outer) case | 156 pc(s) |
| Harmonized System (HS) code | 85389099 |
Packaging data
| Package width | 54 mm |
|---|---|
| Package depth | 472 mm |
| Package height | 220 mm |
| Package weight | 2 kg |
Packaging content
| Mounting kit | Yes |
|---|---|
| Quick installation guide | Yes |
| Screws included | Yes |
| Screw type | M5, M4 |
| Number of screws | 16 |
| Nuts included | Yes |
| Number of nuts | 8 |
| Washers included | Yes |
| Number of washers included | 4 |
Technical details
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 842 mm |
|---|---|
| Depth | 107.5 mm |
| Height | 177 mm |
| Mounting depth (min) | 0 mm |
| Mounting depth (max) | 8.89 cm |
| Weight | 1.7 kg |
