StarTech.com SFP Module - 10056 Comp - U/S

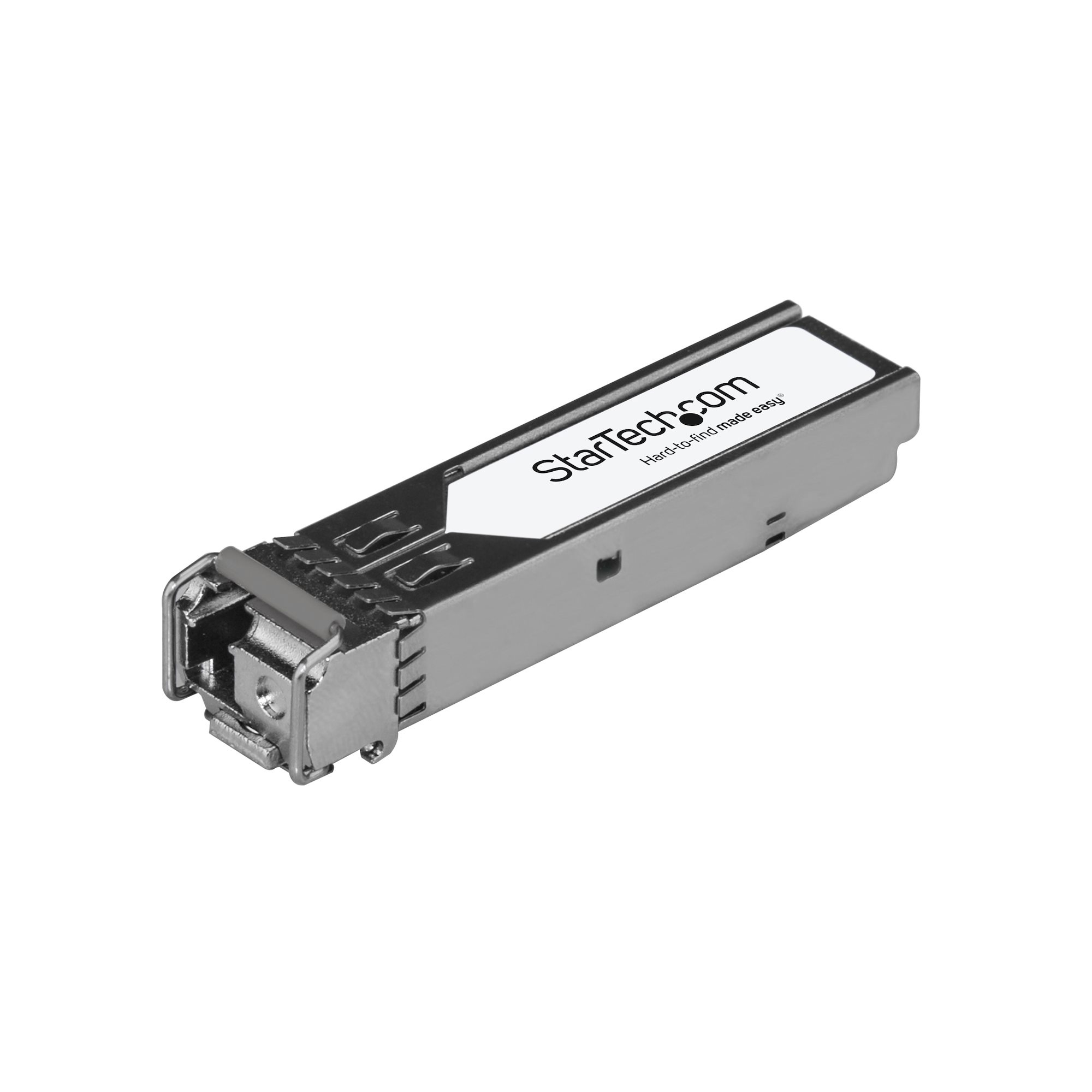

Extreme Networks 10056 Compatible SFP Module - 1000Base-BX Fiber Optical Transceiver Downstream (10056-ST)
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 4633884
- MPN: 10056-ST
StarTech.com
StarTech.com Extreme Networks 10056 Compatible SFP Module -…
- SKU
- CNZ-IM-021543
- MPN
- 10056-ST
- Rating
- No reviews yet
Overview
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The 10056-ST is an Extreme Networks 10056 compatible downstream fiber SFP transceiver which pairs with StarTech.com's 10057-ST. They are designed, programmed and tested to work with 1000BASE-BX-D compatible Extreme Networks switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1490nmTx/1310nmRx
• Maximum Data Transfer Rate: 1Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption:
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The 10056-ST is an Extreme Networks 10056 compatible downstream fiber SFP transceiver which pairs with StarTech.com's 10057-ST. They are designed, programmed and tested to work with 1000BASE-BX-D compatible Extreme Networks switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1490nmTx/1310nmRx
• Maximum Data Transfer Rate: 1Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption:
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Multi-mode fiber (MMF) supported: No
- Fiber optic connector: LC
- SFP transceiver standard: BX
- Maximum transfer distance: 10000 m
- Tx wavelength (max): 1490 nm
- Rx wavelength (max): 1310 nm
- Networking standards: IEEE 802.3z
- Fiber ethernet cabling technology: 1000BASE
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Hot-swap: Yes
- Mean time between failures (MTBF): 286217327 h
- Brand compatibility: Extreme Networks
- Compatible products: 10056
- Power consumption (typical): 1.3 W
- Certification: CE, FCC, UR, REACH
- Width: 56.6 mm
- Depth: 13.7 mm
- Height: 12.5 mm
Specifications
Power
| Power consumption (typical) | 1.3 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 286217327 h |
| Brand compatibility | Extreme Networks |
| Compatible products | 10056 |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | BX |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1490 nm |
| Rx wavelength (max) | 1310 nm |
| Networking standards | IEEE 802.3z |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Certificates
| Certification | CE, FCC, UR, REACH |
|---|
Logistics data
| Master (outer) case width | 90 mm |
|---|---|
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
Packaging data
| Package width | 90 mm |
|---|---|
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 56.6 mm |
|---|---|
| Depth | 13.7 mm |
| Height | 12.5 mm |
| Weight | 20 g |
