StarTech.com SFP+ Module - 10GBase-BX MSA Comp -

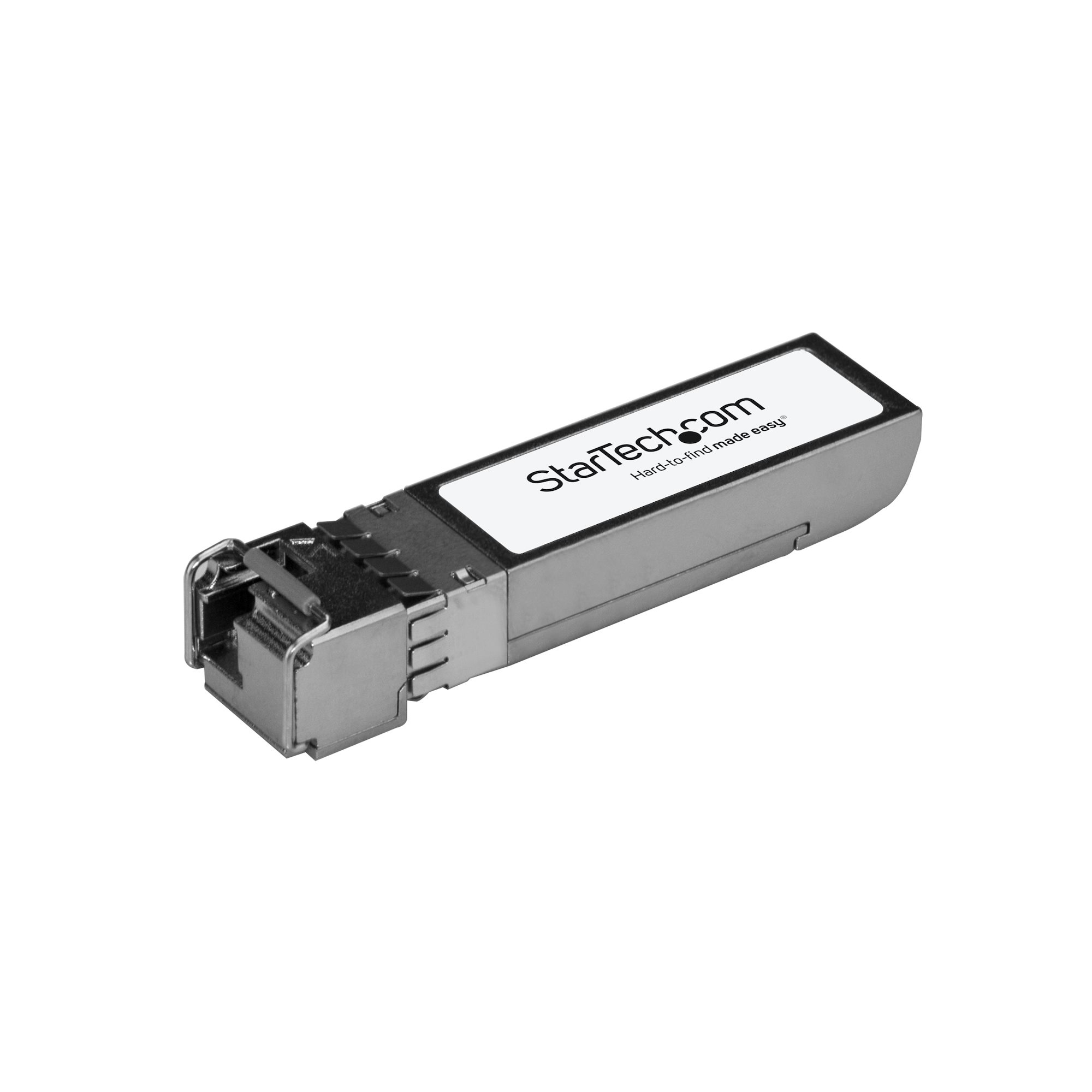

10GBase-BX SFP+ Transceiver Module - MSA Compliant Fiber SFP+ Downstream (SFP-10GB-BX-D-STA-ST)
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 4636561
- MPN: SFP-10GB-BX-D-STA-ST
StarTech.com
StarTech.com MSA Compliant SFP+ Transceiver Module - 10GBase-BX…
- SKU
- CNZ-IM-021656
- MPN
- SFP-10GB-BX-D-STA-ST
- Rating
- No reviews yet
Overview
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFP-10GB-BX-D-STA-ST is a MSA compliant downstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10GB-BX-U-STA-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1330nmTx/1270nmRx
• Maximum Data Transfer Rate: 10Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: 1.3W
• DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The SFP-10GB-BX-D-STA-ST is a MSA compliant downstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10GB-BX-U-STA-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1330nmTx/1270nmRx
• Maximum Data Transfer Rate: 10Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: 1.3W
• DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 10000 Mbit/s
- Interface type: SFP+
- Single-mode fiber (SMF) supported: Yes
- Multi-mode fiber (MMF) supported: No
- Fiber optic connector: LC
- SFP transceiver standard: BX-D
- Maximum transfer distance: 10000 m
- Tx wavelength (max): 1330 nm
- Rx wavelength (max): 1270 nm
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Hot-swap: Yes
- Mean time between failures (MTBF): 646156559 h
- Brand compatibility: MSA Compliant
- Power consumption (typical): 1.3 W
- Certification: CE, FCC, UL
- Width: 58.4 mm
- Depth: 13.9 mm
- Height: 12.6 mm
- Weight: 24 g
- Quantity per pack: 1 pc(s)
- Package width: 90 mm
- Package depth: 115 mm
Specifications
Power
| Power consumption (typical) | 1.3 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 646156559 h |
| Brand compatibility | MSA Compliant |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | BX-D |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1330 nm |
| Rx wavelength (max) | 1270 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
Certificates
| Certification | CE, FCC, UL |
|---|
Logistics data
| Master (outer) case width | 90 mm |
|---|---|
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
Packaging data
| Package width | 90 mm |
|---|---|
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 58.4 mm |
|---|---|
| Depth | 13.9 mm |
| Height | 12.6 mm |
| Weight | 24 g |
Questions
$71.29inc GST
