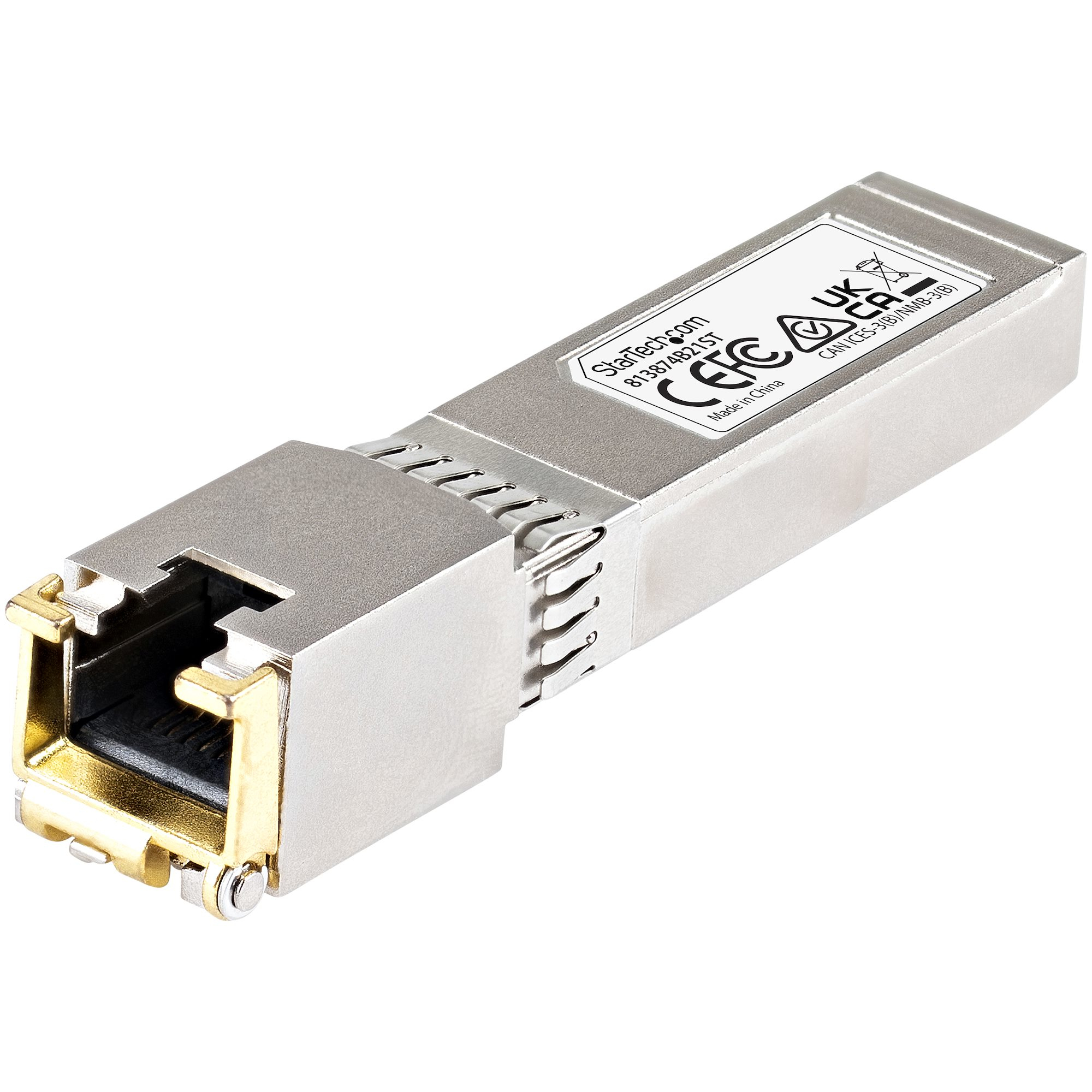

StarTech.com SFP Module - HP 813874-B21 Compatible
HP 813874-B21 Compatible SFP+ Module - 10GBASE-T RJ45 Copper Transceiver - 813874B21ST
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 4298556
- MPN: 813874B21ST
StarTech.com
StarTech.com HPE 813874-B21 Compatible SFP+ Module - 10GBASE-T - SFP…
- SKU
- CNZ-IM-021537
- MPN
- 813874B21ST
- Rating
- No reviews yet
−19%
Overview
10Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty
The 813874B21ST is an HPE 813874-B21 compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 30 m (98.4 ft)
• MTBF: 4,598,430 hours
• Digital Diagnostics Monitoring (DDM): No
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The 813874B21ST is an HPE 813874-B21 compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 30 m (98.4 ft)
• MTBF: 4,598,430 hours
• Digital Diagnostics Monitoring (DDM): No
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Copper
- Maximum data transfer rate: 10000 Mbit/s
- Interface type: SFP+
- Maximum transfer distance: 30 m
- Networking standards: IEEE 802.3an
- Ethernet LAN (RJ-45) ports: 1
- Auto MDI/MDI-X: Yes
- Digital Diagnostics Monitoring (DDM): No
- Product colour: Silver
- Housing material: Zinc steel
- Hot-swap: Yes
- Mean time between failures (MTBF): 4598430 h
- Brand compatibility: HP
- Power consumption (typical): 2.3 W
- Compliance certificates: RoHS
- Certification: CE, FCC
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 90 °C
- Operating relative humidity (H-H): 0 - 95%
- Width: 13.4 mm
- Depth: 69.8 mm
- Height: 13.8 mm
- Weight: 58 g
- Quantity per pack: 1 pc(s)
Specifications
Power
| Power consumption (typical) | 2.3 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Housing material | Zinc steel |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 4598430 h |
| Brand compatibility | HP |
Performance
| SFP transceiver type | Copper |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Maximum transfer distance | 30 m |
| Networking standards | IEEE 802.3an |
| Ethernet LAN (RJ-45) ports | 1 |
| Auto MDI/MDI-X | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC |
Logistics data
| Master (outer) case width | 340 mm |
|---|---|
| Master (outer) case length | 638 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 290 mm |
| Products per master (outer) case | 150 pc(s) |
| Country of origin | China |
Packaging data
| Package width | 75 mm |
|---|---|
| Package depth | 120 mm |
| Package height | 33 mm |
| Package weight | 31 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 13.4 mm |
|---|---|
| Depth | 69.8 mm |
| Height | 13.8 mm |
| Weight | 58 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 0 - 95% |
