StarTech.com SFP Module - SFP-1G-BX80-U Comp - U/S
Dell EMC SFP-1G-BX80-U Compatible SFP Module - 1000Base-BX80 Fiber Optical Transceiver Upstream (SFP1GBX80UES)
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 4634069
- MPN: SFP1GBX80UES
StarTech.com
StarTech.com Dell EMC SFP-1G-BX80-U Compatible SFP Module -…
- SKU
- CNZ-IM-021604
- MPN
- SFP1GBX80UES
- Rating
- No reviews yet
Overview
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty

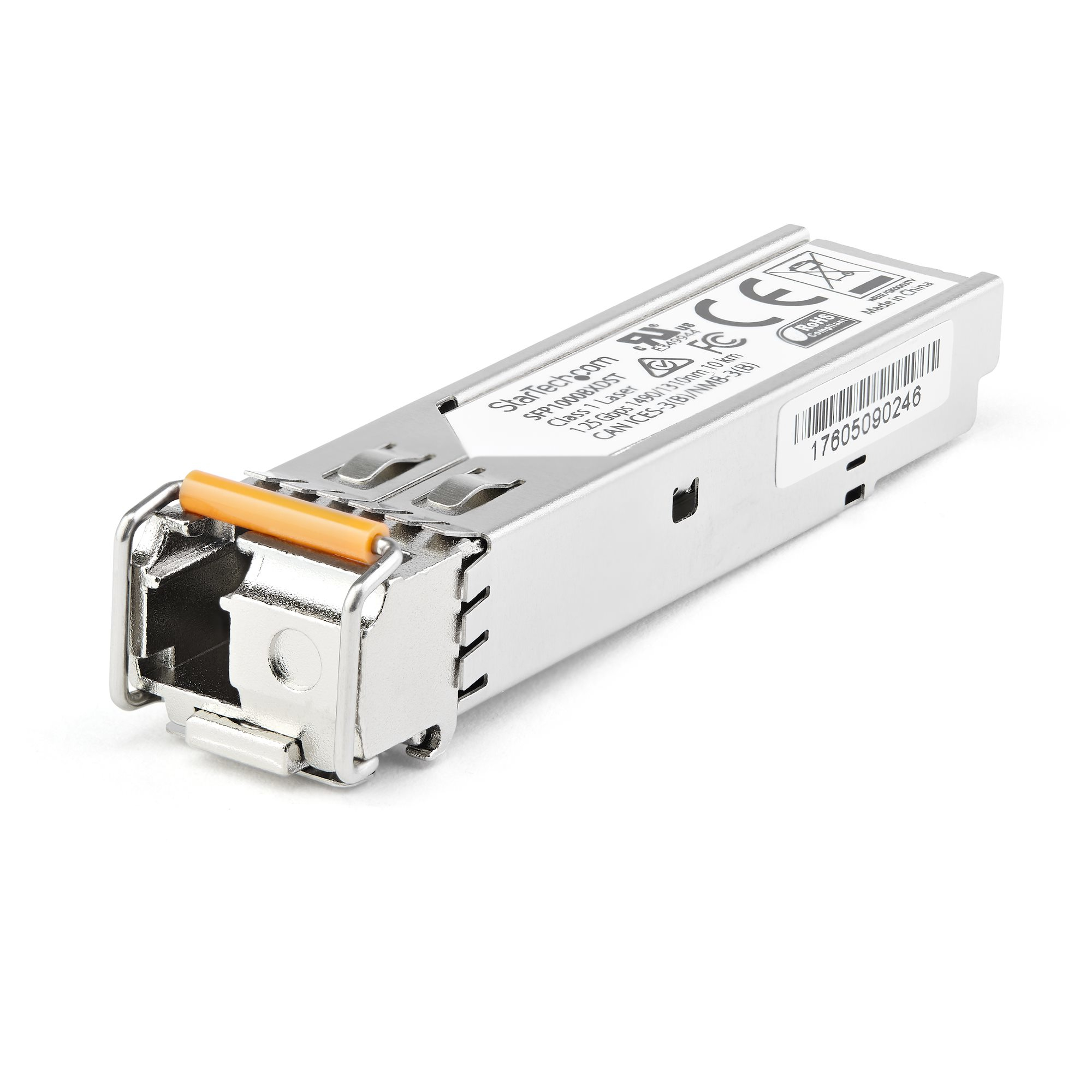

The SFP1GBX80UES is a Dell EMC SFP-1G-BX80-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX80DES. They are designed, programmed and tested to work with 1000BASE-BX80 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1490nmTX/1550nmRX
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Low power consumption
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The SFP1GBX80UES is a Dell EMC SFP-1G-BX80-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX80DES. They are designed, programmed and tested to work with 1000BASE-BX80 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1490nmTX/1550nmRX
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Low power consumption
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1000 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Multi-mode fiber (MMF) supported: No
- Fiber optic connector: LC
- Maximum transfer distance: 80000 m
- Tx wavelength (max): 1490 nm
- Rx wavelength (max): 1550 nm
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Hot-swap: Yes
- Mean time between failures (MTBF): 3713222 h
- Brand compatibility: Dell
- Compatible products: SFP-1G-BX80-U
- Compliance certificates: RoHS
- Certification: CE, FCC, UL, REACH
- Width: 58.4 mm
- Depth: 13.9 mm
- Height: 12.6 mm
- Weight: 30 g
- Quantity per pack: 1 pc(s)
- Package width: 90 mm
Specifications
Features
| Product colour | Silver |
|---|---|
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3713222 h |
| Brand compatibility | Dell |
| Compatible products | SFP-1G-BX80-U |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| Maximum transfer distance | 80000 m |
| Tx wavelength (max) | 1490 nm |
| Rx wavelength (max) | 1550 nm |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UL, REACH |
Logistics data
| Master (outer) case width | 90 mm |
|---|---|
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
Packaging data
| Package width | 90 mm |
|---|---|
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 58.4 mm |
|---|---|
| Depth | 13.9 mm |
| Height | 12.6 mm |
| Weight | 30 g |
