StarTech.com SFP+ - Palo Alto Networks PL-LR Comp

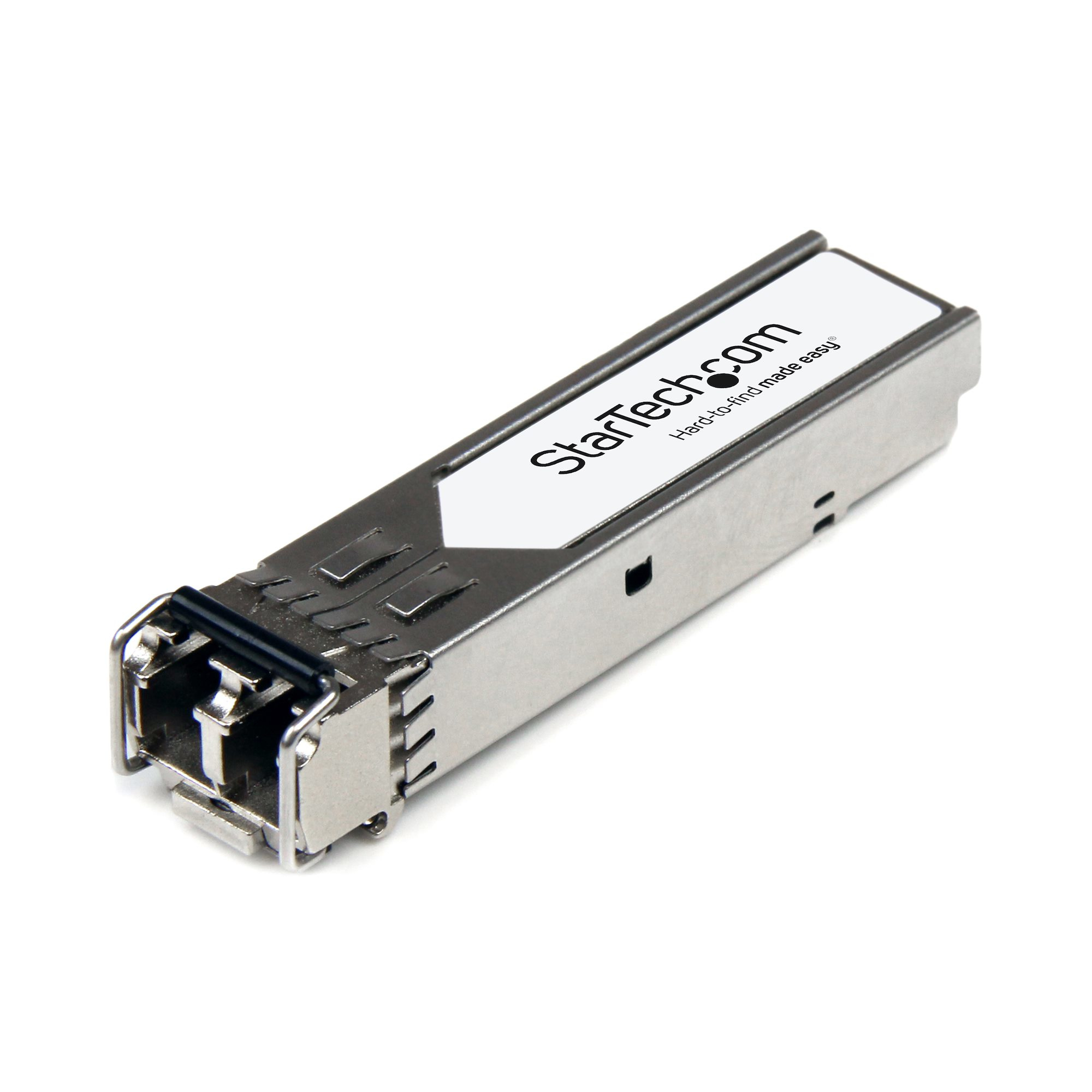

Palo Alto Networks PLUS-LR Compatible SFP+ Module - 10GBase-LR Fiber Optical Transceiver (PLUS-LR-ST)

  • Brand: StarTech.com
  • Category: Network Accessories
  • SKU: 4636550
  • MPN: PLUS-LR-ST
StarTech.com

StarTech.com Palo Alto Networks PLUS-LR Compatible SFP+ Module -…

SKU
CNZ-IM-021645
MPN
PLUS-LR-ST

Overview

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The PLUS-LR-ST is a Palo Alto Networks PLUS-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 0 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 0 km (6.2 mi)
• MTBF: 1,386,624,697 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Key features

  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 10000 Mbit/s
  • Interface type: SFP+
  • Single-mode fiber (SMF) supported: Yes
  • Multi-mode fiber (MMF) supported: No
  • Fiber optic connector: LC
  • SFP transceiver standard: LR
  • Maximum transfer distance: 10000 m
  • Wavelength: 1310 nm
  • Fiber ethernet cabling technology: 10GBASE
  • Digital Diagnostics Monitoring (DDM): Yes
  • Product colour: Silver
  • Hot-swap: Yes
  • Mean time between failures (MTBF): 1386624697 h
  • Brand compatibility: Palo Alto Networks
  • Compatible products: PLUS-LR
  • Power consumption (typical): 1.3 W
  • Certification: CE, FCC, UR
  • Width: 58.4 mm
  • Depth: 13.9 mm
  • Height: 13.7 mm
  • Weight: 21 g
  • Quantity per pack: 1 pc(s)
  • Package width: 90 mm

Specifications

Power

Power consumption (typical)1.3 W

Features

Product colourSilver
Hot-swapYes
Mean time between failures (MTBF)1386624697 h
Brand compatibilityPalo Alto Networks
Compatible productsPLUS-LR

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Single-mode fiber (SMF) supportedYes
Multi-mode fiber (MMF) supportedNo
Fiber optic connectorLC
SFP transceiver standardLR
Maximum transfer distance10000 m
Wavelength1310 nm
Fiber ethernet cabling technology10GBASE
Digital Diagnostics Monitoring (DDM)Yes

Certificates

CertificationCE, FCC, UR

Logistics data

Master (outer) case width90 mm
Master (outer) case length115 mm
Harmonized System (HS) code85369010
Master (outer) case height31 mm
Products per master (outer) case1 pc(s)

Packaging data

Package width90 mm
Package depth115 mm
Package height31 mm
Package weight50 g

Packaging content

Quantity per pack1 pc(s)

Weight & dimensions

Width58.4 mm
Depth13.9 mm
Height13.7 mm
Weight21 g

Questions

$56.34inc GST
