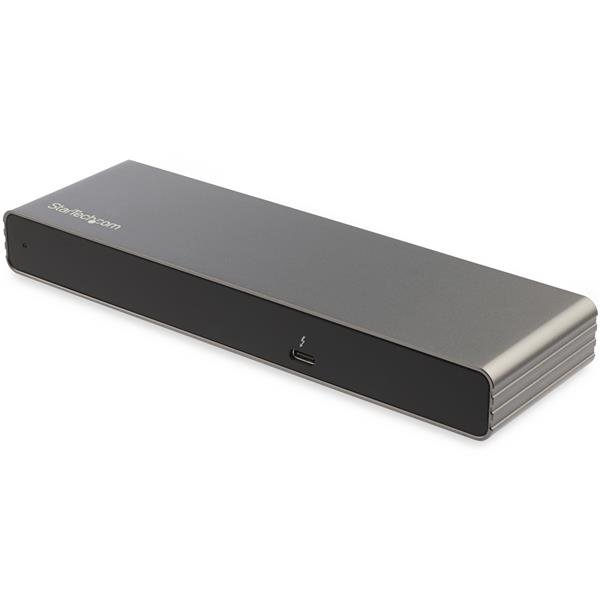

STARTECH.COM THUNDERBOLT 3 DOCK - DUAL 4K 60HZ - DP / HDMI / VGA, 3 YR
Peripherals & Accessories > Chargers & Power Adapters
- Brand: STARTECH
- Category: Peripherals
- SKU: TB3DK2DHV
- MPN: TB3DK2DHV
STARTECH
StarTech.com Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop…
- SKU
- CNZ-DD-042692
- MPN
- TB3DK2DHV
- Rating
- No reviews yet
−9%
Overview
Laptop Dock | Mac & Windows® | HDMI | DisplayPort | VGA | 85W PD
Create a powerful and flexible workstation with this Thunderbolt™ 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows® laptop to two 4K monitors, through a single Thunderbolt 3 cable.
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.
Speed & Flexibility with 3 Monitor Options
Great for editing 4K video or other Ultra HD tasks, this Thunderbolt 3 docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Enjoy ultimate flexibility in setting up your workstation, with monitor options including DisplayPort (DP), HDMI and VGA.
The dock offers many dedicated dual-video options:
2x DisplayPort (4096 x 2160p @ 60Hz)
1x DisplayPort + 1 HDMI (4096 x 2160p @ 60Hz)
1x VGA (1920 x 1200p @ 60Hz) + 1x DisplayPort (4096 x 2160p @ 60Hz)
1x VGA (1920 x 1200p @ 60Hz) + 1x HDMI (4096 x 2160p @ 60Hz)
The Ports You Need Most
Harness the reliability and speed of a wired network connection with the Gigabit Ethernet port (supporting PXE Boot and Wake-on-LAN). Connect your USB devices with two USB 3.0 Type-A ports.
Power & Charge with 85W Power Delivery
Through a single 120W power adapter, the Thunderbolt 3 docking station simultaneously powers and charges your laptop and your attached peripherals while it's docked. It provides up to 85W of charging power through Power Delivery.
The StarTech.com Advantage
Create a powerful and flexible workstation with this Thunderbolt™ 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows® laptop to two 4K monitors, through a single Thunderbolt 3 cable.
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.
Speed & Flexibility with 3 Monitor Options
Great for editing 4K video or other Ultra HD tasks, this Thunderbolt 3 docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Enjoy ultimate flexibility in setting up your workstation, with monitor options including DisplayPort (DP), HDMI and VGA.
The dock offers many dedicated dual-video options:
2x DisplayPort (4096 x 2160p @ 60Hz)
1x DisplayPort + 1 HDMI (4096 x 2160p @ 60Hz)
1x VGA (1920 x 1200p @ 60Hz) + 1x DisplayPort (4096 x 2160p @ 60Hz)
1x VGA (1920 x 1200p @ 60Hz) + 1x HDMI (4096 x 2160p @ 60Hz)
The Ports You Need Most
Harness the reliability and speed of a wired network connection with the Gigabit Ethernet port (supporting PXE Boot and Wake-on-LAN). Connect your USB devices with two USB 3.0 Type-A ports.
Power & Charge with 85W Power Delivery
Through a single 120W power adapter, the Thunderbolt 3 docking station simultaneously powers and charges your laptop and your attached peripherals while it's docked. It provides up to 85W of charging power through Power Delivery.
The StarTech.com Advantage
Key features
- Connectivity technology: Wired
- Host interface: Thunderbolt 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 85 W
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- DisplayPorts quantity: 2
- Microphone in: No
- DC-in jack: Yes
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- 10G support: No
- Card reader integrated: No
- Data transfer rate: 40 Gbit/s
- Maximum digital resolution: 4096 x 2160 pixels
- Product colour: Grey
- UASP support: Yes
- Housing material: Aluminium
- Certification: CE, FCC, REACH
Specifications
Power
| Power source type | AC |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 1.8 A |
| Power supply type | External |
| Output voltage | 19 V |
| Output current | 6.32 A |
| Power consumption (typical) | 120 W |
| Power plug type | Type N |
| Compatible power plug types | AU, JP, US |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| 10G support | No |
Software
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|---|---|
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
Performance
| Card reader integrated | No |
|---|---|
| Data transfer rate | 40 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour | Grey |
| UASP support | Yes |
| Housing material | Aluminium |
| Certification | CE, FCC, REACH |
Logistics data
| Products per master (outer) case | 20 pc(s) |
|---|---|
| Master (outer) case width | 390 mm |
| Master (outer) case length | 676 mm |
| Master (outer) case height | 280 mm |
Other features
| Cable length | 0.5 m |
|---|---|
| Chipset | Intel - Alpine Ridge JHL6540, Intel - WGI210AT, ASMedia - ASM1042A, Parade - PS176, Chrontel - CH7517 |
Packaging data
| Package width | 187 mm |
|---|---|
| Package depth | 254 mm |
| Package height | 65 mm |
| Package weight | 1.3 kg |
Packaging content
| Cables included | Thunderbolt |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| DC-in jack | Yes |
Weight & dimensions
| Width | 58.6 mm |
|---|---|
| Depth | 196 mm |
| Height | 24 mm |
| Weight | 340 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
