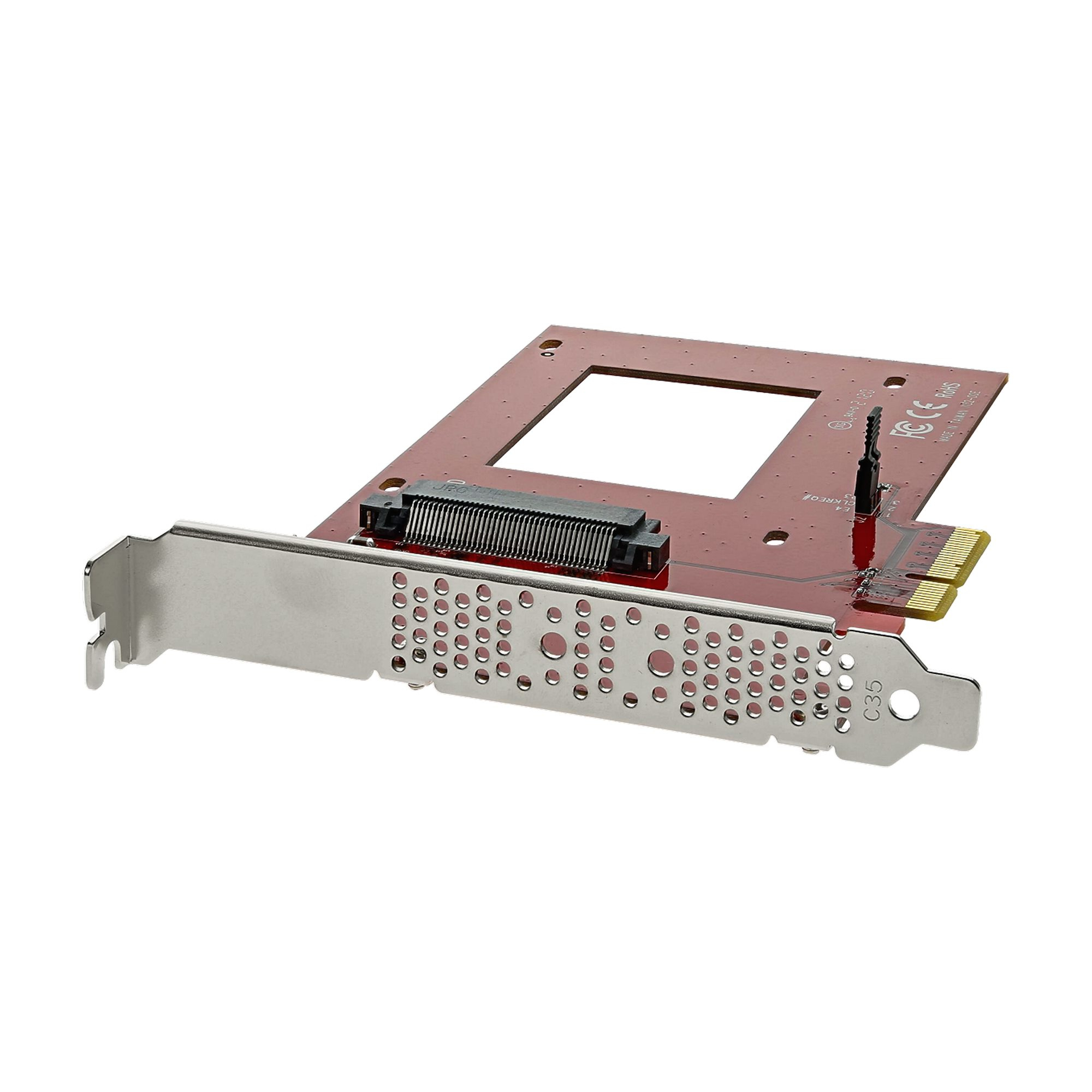

StarTech.com U.2 to PCIe Adapter - 2.5in U.2 NVMe SSD

U.2 to PCIe Adapter for 2.5in U.2 NVMe SSD - SFF-8639 - x4 PCI Express 3.0

  • Brand: StarTech.com
  • Category: Access Points (WiFi)
  • SKU: 3695956
  • MPN: PEX4SFF8639
StarTech.com

StarTech.com U.2 to PCIe Adapter for 2.5" U.2 NVMe SSD - SFF-8639 -…

SKU
CNZ-IM-042383
MPN
PEX4SFF8639

Overview

Mount a 2.5" U.2 NVMe SSD into your desktop computer or server, using an available PCIe expansion slot

Get ultra-fast data access by adding an NVMe U.2 SSD to your computer. This U.2 to PCIe adapter lets you add a high-speed, U.2 (4-lane PCIe) 2.5" NVMe SSD, such as the Intel® 750 Series drive, to a PC with an available x4 PCI Express expansion slot.

You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.

Boost your system speed and performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe U.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an NVMe U.2 PCIe-based SSD through ultra-fast x4 PCIe. With the U.2 PCIe-based drive in place, the adapter gives your computer a significant speed boost.

Easy to install

The expansion card is equipped with a full-profile bracket and doesn't require an adapter cable for installation, this helps to reduce clutter and simplifies system builds. The drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard.

The adapter is compatible with PCIe 4.0 motherboards and is also backward compatible with PCIe 3.0 / 2.0 / 1.0.

The PEX4SFF8639 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

  • Host interface: PCIe
  • Output interface: U.2
  • Expansion card standard: PCIe 4.0
  • Internal: Yes
  • Product colour: Red
  • LED indicators: Activity
  • Hot-swap: No
  • Certification: CE, FCC
  • Plug and Play: Yes
  • Operating temperature (T-T): 5 - 50 °C
  • Storage temperature (T-T): -25 - 70 °C
  • Operating relative humidity (H-H): 15 - 90%
  • Compliance certificates: RoHS
  • Width: 122 mm
  • Depth: 165 mm
  • Height: 22 mm
  • Weight: 65 g
  • Screws included: Yes
  • Quick installation guide: Yes
  • Package width: 160 mm
  • Package depth: 220 mm
  • Package height: 45 mm
  • Package weight: 161 g
  • Harmonized System (HS) code: 84733020

Specifications

Design

InternalYes
Product colourRed
LED indicatorsActivity
Hot-swapNo
CertificationCE, FCC

Features

Plug and PlayYes

Logistics data

Harmonized System (HS) code84733020
Products per master (outer) case40 pc(s)
Master (outer) case width340 mm
Master (outer) case length450 mm
Master (outer) case height490 mm

Packaging data

Screws includedYes
Quick installation guideYes
Package width160 mm
Package depth220 mm
Package height45 mm
Package weight161 g

Technical details

Compliance certificatesRoHS

Ports & interfaces

Host interfacePCIe
Output interfaceU.2
Expansion card standardPCIe 4.0

Weight & dimensions

Width122 mm
Depth165 mm
Height22 mm
Weight65 g

Operational conditions

Operating temperature (T-T)5 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)15 - 90%
