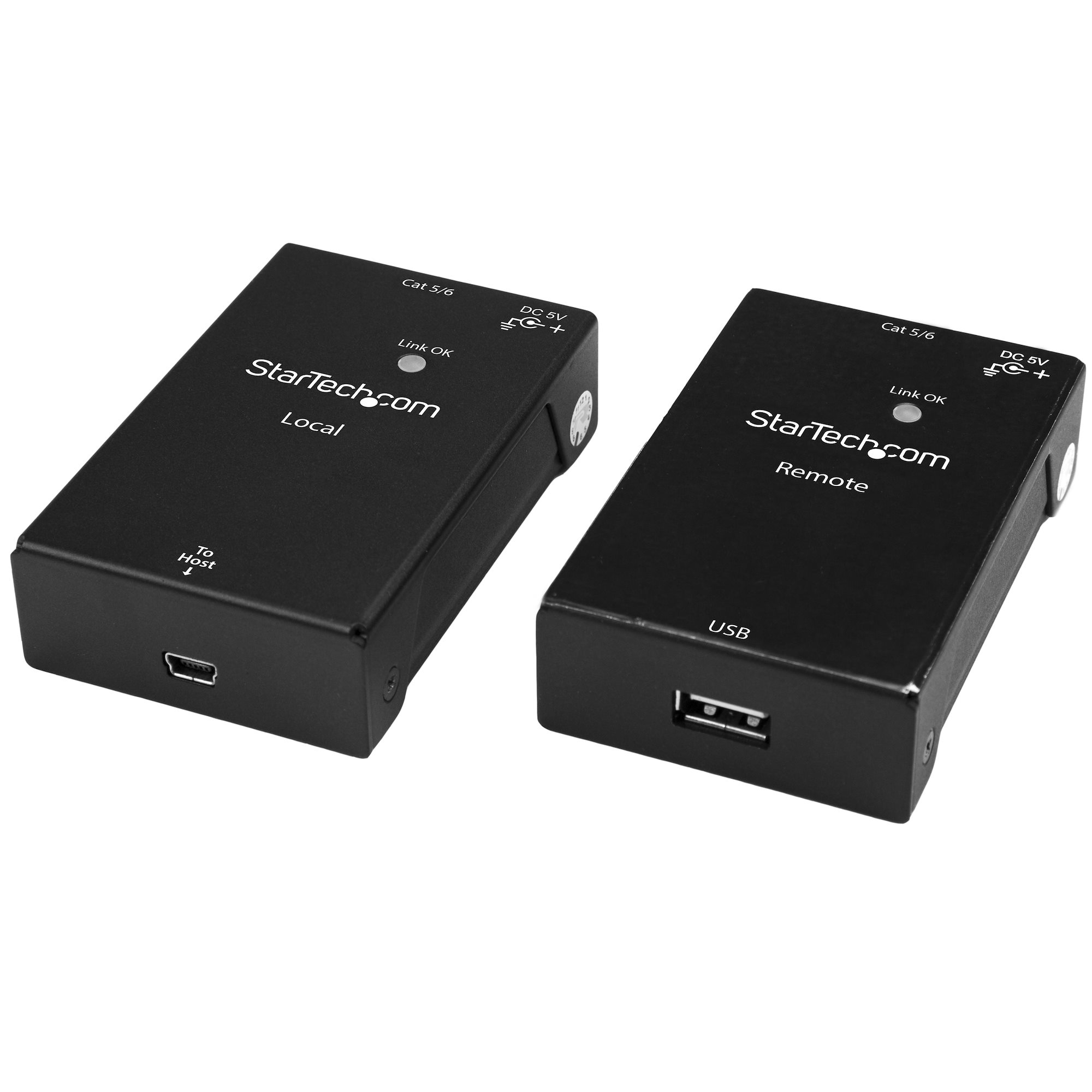

STARTECH.COM USB 2.0 EXTENDER KIT OVER CAT5E/CAT6 - UP TO 50 M - POWERED 2 YR

Peripherals & Accessories > Chargers & Power Adapters

  • Brand: STARTECH
  • Category: Peripherals
  • SKU: USB2001EXTV
  • MPN: USB2001EXTV
STARTECH

StarTech.com USB 2.0 Extender over Cat5e/Cat6 Cable (RJ45) - Up to…

SKU
CNZ-DD-044290
MPN
USB2001EXTV

Overview

Connect a USB 2.0 device to your computer over long distances, using this single-port USB extender

Here's a versatile and cost-effective USB 2.0 extender. It gives you the freedom you need to place your USB device further away, making it perfect for the homes, offices, classrooms, and many other environments. Now, you can easily access and use your USB 2.0 device in a remote location, up to 165 ft. (50 m) away, using Cat5 or Cat6 cable.

Eliminate hassle and smash distance limitations

This USB extender overcomes the 16 ft. cable length limitations of traditional USB 2.0 cables, so you can create a more efficient, more flexible workspace.

It's an inexpensive USB-to-Ethernet solution that's ideal for virtually any USB 2.0 device. You can connect a webcam at the back of a classroom, or a printer in another room at the office, all up to 50 m away from your host computer.

Plus, with a power adapter included for the remote unit, you can connect power-hungry USB devices such as external hard drives.

Rugged durability and peace of mind

Unlike other USB extenders that feature a plastic housing, this extender offers a metal casing that offers rugged durability. Whether the extender is installed in a permanent location, or will be moved from place to place, it gives you the peace of mind that your USB peripheral remains connected and accessible, right where you need it.

Supports any operating system as well as older devices

The USB 2.0-over-Cat5-or-Cat6 extender is OS independent, so it supports a variety of operating systems. Setup is easy with no additional drivers or software required, and the extender is backward compatible with USB 1.1 and 1.0 peripherals.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

The StarTech.com Advantage

Key features

  • Type: Console transmitter & receiver
  • Data transfer rate: 480 Mbit/s
  • Maximum transfer distance: 50 m
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Link, Power
  • Rubber feet: Yes
  • Cable types supported: Cat5, Cat5e, Cat6
  • Compliance certificates: RoHS
  • USB 2.0 ports quantity: 1
  • Mini-USB 2.0 ports quantity: 1
  • RJ-45 ports quantity: 2
  • Width: 52 mm
  • Depth: 80 mm
  • Height: 22 mm
  • Weight: 304 g
  • Package width: 155 mm
  • Package depth: 236 mm
  • Package height: 67 mm
  • Package weight: 717 g
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -10 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Cables included: LAN (RJ-45), USB

Specifications

Power

Power consumption (typical)10 W
Input voltage100 - 240 V
Input current0.6 A
Output voltage5 V
Output current2 A
Power plug typeType N

Logistics data

Harmonized System (HS) code84733020
Master (outer) case width321 mm
Master (outer) case length412 mm
Master (outer) case height265 mm
Products per master (outer) case12 pc(s)

Packaging content

Cables includedLAN (RJ-45), USB
Quick start guideYes
AC adapter includedYes

Technical details

TypeConsole transmitter & receiver
Data transfer rate480 Mbit/s
Maximum transfer distance50 m
Product colourBlack
Housing materialMetal
LED indicatorsLink, Power
Rubber feetYes
Cable types supportedCat5, Cat5e, Cat6
Compliance certificatesRoHS

Ports & interfaces

USB 2.0 ports quantity1
Mini-USB 2.0 ports quantity1
RJ-45 ports quantity2

Weight & dimensions

Width52 mm
Depth80 mm
Height22 mm
Weight304 g
Package width155 mm
Package depth236 mm
Package height67 mm
Package weight717 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
