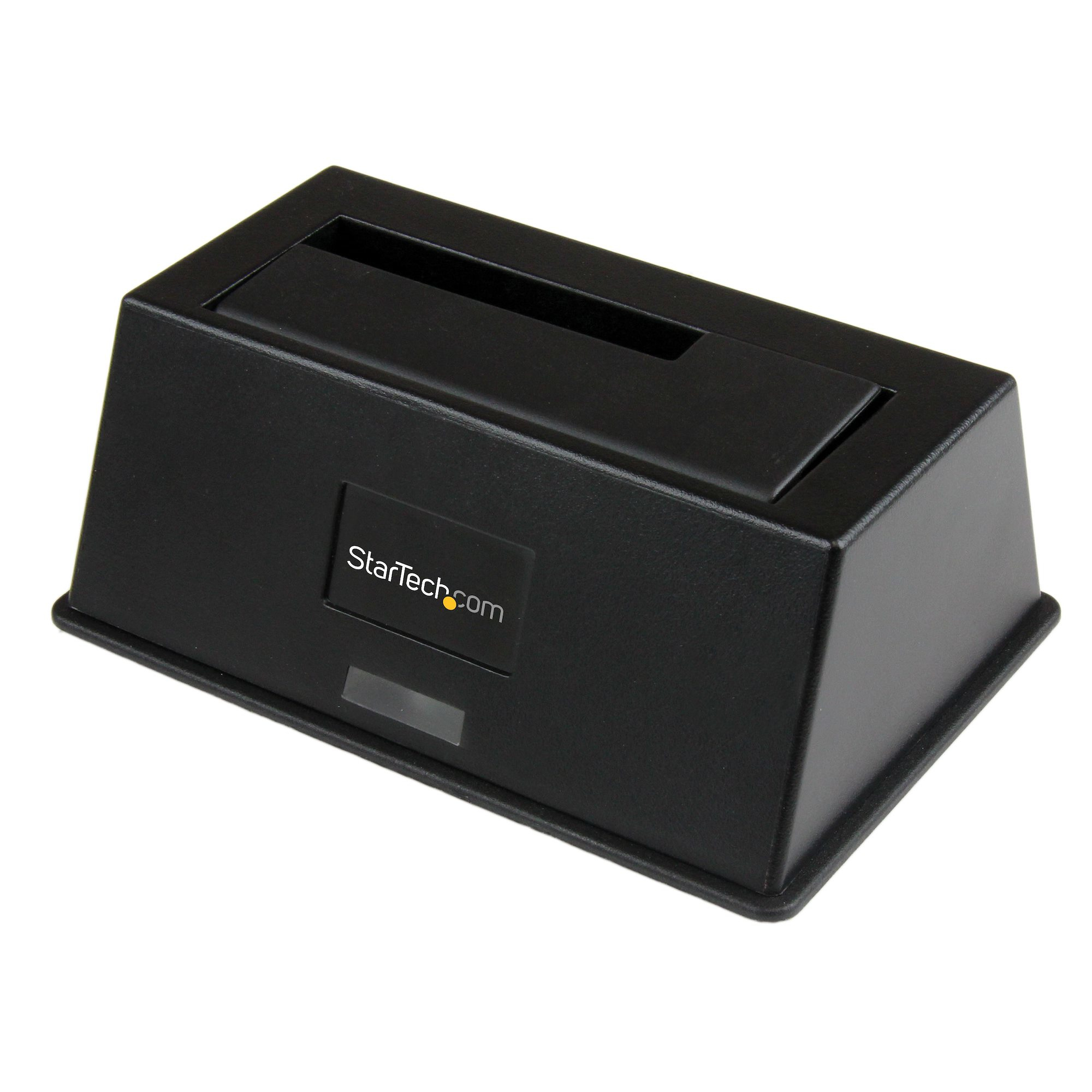

StarTech.com USB 3.0 SATA III SSD/HDD Dock with UASP

USB 3.0 SATA III Hard Drive Docking Station SSD / HDD with UASP - 2.5/3.5 USB 3.0 SATA I/II/III SSD / HDD Dock Station with UASP - USB 3.0 Hard Drive Dock - Black

  • Brand: StarTech.com
  • Category: Racks & Cabinets
  • SKU: 2552839
  • MPN: SDOCKU33BV
StarTech.com

StarTech.com Single Bay USB 3.0 to SATA Hard Drive Docking Station,…

Our SKU
MPN
Barcode

Overview

SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock

The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.

With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage

Key features

  • Storage media type: HDD, SSD
  • Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III
  • Storage drive sizes supported: 2.5,3.5"
  • Number of storage drives supported: 1
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
  • USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: 1
  • DC-in jack: Yes
  • Maximum data transfer rate: 6 Gbit/s
  • Plug and Play: Yes
  • LED indicators: Activity, Power
  • On/off switch: Yes
  • UASP support: Yes
  • Built-in fan: No
  • AC input voltage: 100-240 V
  • Output voltage: 12 V
  • Weight: 318 g
  • Package dimensions (WxDxH): 92 x 160 x 170 mm
  • Package width: 161 mm
  • Package depth: 170 mm
  • Package height: 94 mm
  • Package weight: 704 g
  • AC adapter included: Yes
  • Cables included: USB
  • Manual: Yes

Specifications

Power

AC input voltage100-240 V
Output voltage12 V

Cooling

Built-in fanNo

Features

Maximum data transfer rate6 Gbit/s
Plug and PlayYes
LED indicatorsActivity, Power
On/off switchYes
UASP supportYes

Hard drive

Storage media typeHDD, SSD
Storage drive interfaceSerial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported2.5,3.5"
Number of storage drives supported1

Logistics data

Harmonized System (HS) code84733080
Master (outer) case width187 mm
Master (outer) case length476 mm
Master (outer) case height387 mm
Products per master (outer) case10 pc(s)

Other features

Standard interfacesUSB 3.2 Gen 1 (3.1 Gen 1)
ChipsetASMedia - ASM1053 - 6G
Compliance certificatesCE, RoHS

Packaging data

Package dimensions (WxDxH)92 x 160 x 170 mm
Package width161 mm
Package depth170 mm
Package height94 mm
Package weight704 g

Sustainability

Sustainability complianceYes

Packaging content

AC adapter includedYes
Cables includedUSB
ManualYes
Included power plug typesEU, NA, UK

Ports & interfaces

Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity1
DC-in jackYes

Weight & dimensions

Weight318 g

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 80%

Questions

$119.59inc GST
