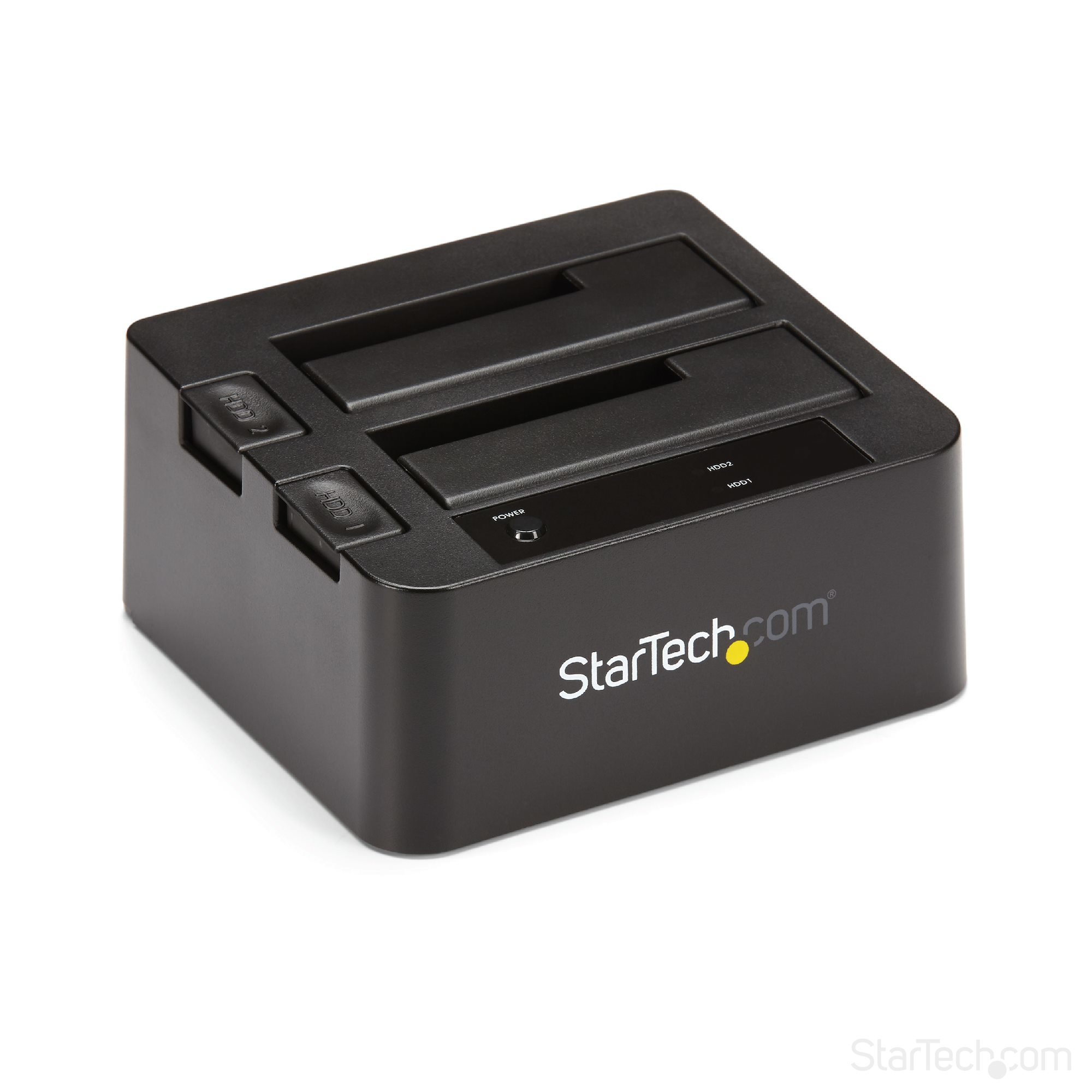

StarTech.com USB 3.1 Gen 2 (10Gbps) Dual-bay Dock
Dock two 2.5 3.5 SATA SSD/HDDs over high performance USB 3.1 Gen 2 (10 Gbps) with UASP - Dual-drive dock supports SATA I II III (up to 6 Gbps) - High capacity up to 12TB
- Brand: StarTech.com
- Category: Drive Enclosures
- SKU: 2997218
- MPN: SDOCK2U313
StarTech.com
StarTech.com Dual-Bay USB 3.2 Gen 2 to SATA Hard Drive Docking…
- SKU
- CNZ-IM-042295
- MPN
- SDOCK2U313
- Rating
- No reviews yet
−15%
Overview
External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA I/II/III
Get unprecedented performance and storage capacity with this USB 3.2 Gen 2 (10Gbps) dual-drive docking station. It supports both 2.5" and 3.5" form factor solid-state and hard drives, with a high capacity storage capability of 32TB (16TB per drive).
Harness the speed of USB 3.2 Gen 2 (USB 10Gbps)
USB 3.2 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.2 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Top-loading design for easy drive access
It's never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility
The dual-drive docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5" or 3.5" IDE hard drive into a SATA hard drive dock.
The StarTech.com Advantage
Get unprecedented performance and storage capacity with this USB 3.2 Gen 2 (10Gbps) dual-drive docking station. It supports both 2.5" and 3.5" form factor solid-state and hard drives, with a high capacity storage capability of 32TB (16TB per drive).
Harness the speed of USB 3.2 Gen 2 (USB 10Gbps)
USB 3.2 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.2 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Top-loading design for easy drive access
It's never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility
The dual-drive docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5" or 3.5" IDE hard drive into a SATA hard drive dock.
The StarTech.com Advantage
Key features
- Storage media type: HDD, SSD
- Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III
- Storage drive sizes supported: 2.5,3.5"
- Number of storage drives supported: 2
- Maximum storage capacity: 6 TB
- Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B
- DC-in jack: Yes
- Product colour: Black
- Material: Plastic
- LED indicators: Activity, Power
- UASP support: Yes
- Certification: CE, FCC, REACH
- Built-in fan: No
- Number of fans: 0 fan(s)
- AC input voltage: 100-240 V
- Input current: 1.3 A
- Output voltage: 12 V
- Output current: 3 A
- Power plug type: Type M
- Width: 148 mm
- Depth: 132 mm
- Height: 70 mm
- Weight: 502 g
- Package width: 190 mm
Specifications
Power
| AC input voltage | 100-240 V |
|---|---|
| Input current | 1.3 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
Cooling
| Built-in fan | No |
|---|---|
| Number of fans | 0 fan(s) |
Features
| Product colour | Black |
|---|---|
| Material | Plastic |
| LED indicators | Activity, Power |
| UASP support | Yes |
| Certification | CE, FCC, REACH |
Hard drive
| Storage media type | HDD, SSD |
|---|---|
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 6 TB |
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 200 mm |
| Master (outer) case length | 620 mm |
| Master (outer) case height | 465 mm |
| Products per master (outer) case | 10 pc(s) |
Other features
| Chipset | ASMedia - ASM1352R |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Package width | 190 mm |
|---|---|
| Package depth | 210 mm |
| Package height | 120 mm |
| Package weight | 980 g |
Packaging content
| AC adapter included | Yes |
|---|---|
| Cables included | USB |
| Included power plug types | AU, EU, NA, UK |
| Quick installation guide | Yes |
Ports & interfaces
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B |
|---|---|
| DC-in jack | Yes |
Weight & dimensions
| Width | 148 mm |
|---|---|
| Depth | 132 mm |
| Height | 70 mm |
| Weight | 502 g |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
