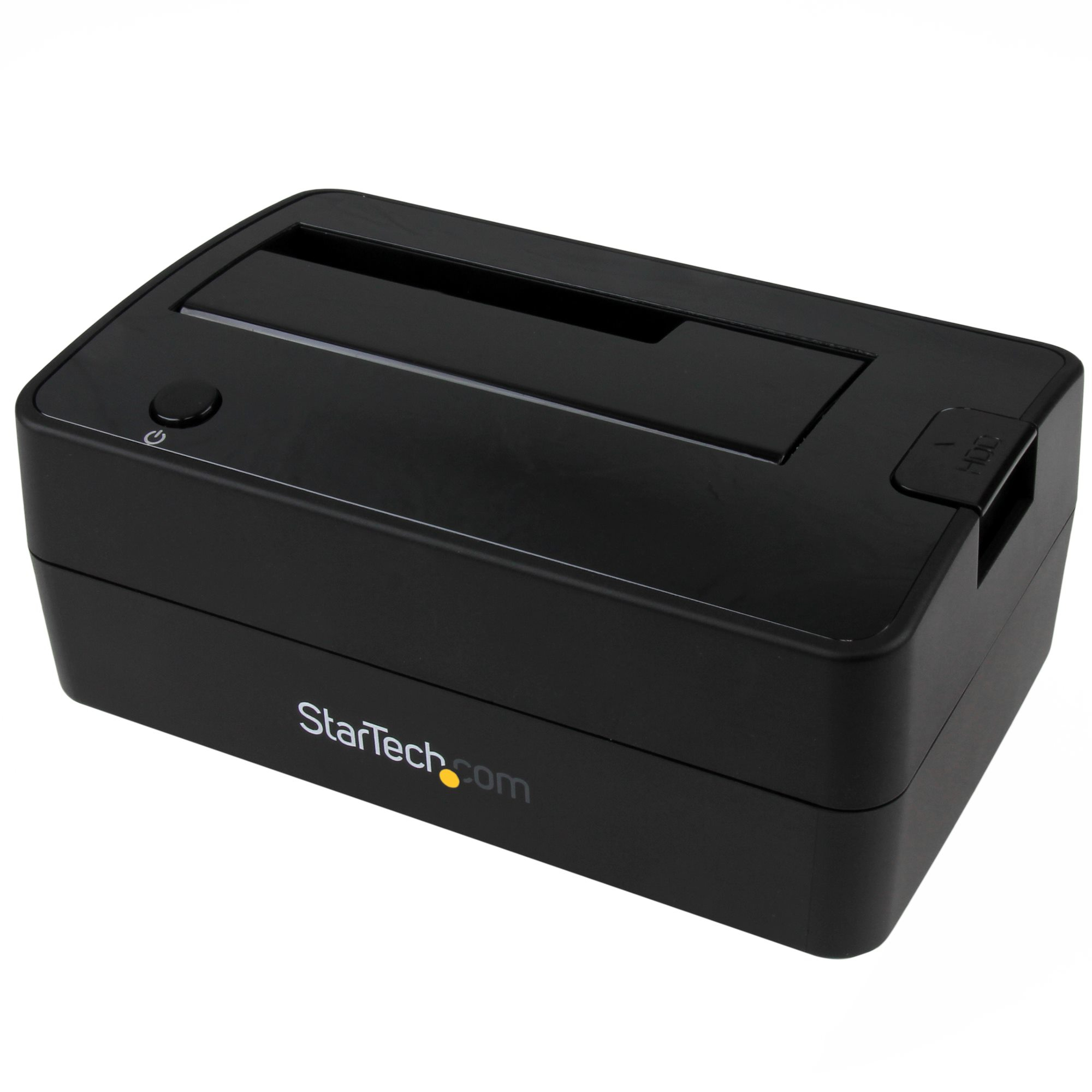

StarTech.com Single Bay USB 3.1 to SATA Hard Drive Docking Station,…

SKU: CNZ-IM-022103
MPN: SDOCKU313
Rating: No reviews yet

StarTech.com USB 3.1 Gen 2 (10Gbps) Single-bay Dock — StarTech.com

Overview

External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA

Unleash the power of USB 3.1 Gen 2 (10 Gbps) with this single-drive docking station. It supports both 2.5” and 3.5” form factors for solid-state and hard drives, with a high drive capacity of 6TB.

Harness the speed of USB 3.1 Gen 2

USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

Top-loading design for easy drive access

It’s never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.

Convenient compatibility

The docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.

The SDOCKU313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

Storage media type: HDD, SSD
Storage drive interface: Serial ATA III
Storage drive sizes supported: 2.5,3.5"
Number of storage drives supported: 1
Maximum storage capacity: 6 TB
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B
USB 3.2 Gen 2 (3.1 Gen 2) ports quantity: 1
DC-in jack: Yes
Product colour: Black
Material: Plastic
Maximum data transfer rate: 10 Gbit/s
LED indicators: Activity, Power
UASP support: Yes
Certification: CE, FCC, REACH
Built-in fan: No
AC input voltage: 110 - 240 V
Input current: 0.6 A
Output voltage: 12 V
Output current: 2 A
Power plug type: Type M
Width: 92.7 mm
Depth: 145 mm
Height: 64 mm
Weight: 392 g

Specifications

Power

AC input voltage	110 - 240 V
Input current	0.6 A
Output voltage	12 V
Output current	2 A
Power plug type	Type M

Cooling

Built-in fan	No

Features

Product colour	Black
Material	Plastic
Maximum data transfer rate	10 Gbit/s
LED indicators	Activity, Power
UASP support	Yes
Certification	CE, FCC, REACH

Hard drive

Storage media type	HDD, SSD
Storage drive interface	Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	1
Maximum storage capacity	6 TB

Logistics data

Harmonized System (HS) code	84733080
Master (outer) case width	385 mm
Master (outer) case length	475 mm
Master (outer) case height	185 mm
Products per master (outer) case	10 pc(s)

Other features

Chipset	ASMedia - ASM1351
Compliance certificates	RoHS

Packaging data

Package width	163 mm
Package depth	91 mm
Package height	171 mm
Package weight	758 g

Packaging content

AC adapter included	Yes
Cables included	USB
Included power plug types	AU, EU, NA, UK
Quick installation guide	Yes

Ports & interfaces

Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B
USB 3.2 Gen 2 (3.1 Gen 2) ports quantity	1
DC-in jack	Yes

Weight & dimensions

Width	92.7 mm
Depth	145 mm
Height	64 mm
Weight	392 g

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%

Questions

$158.69inc GST
