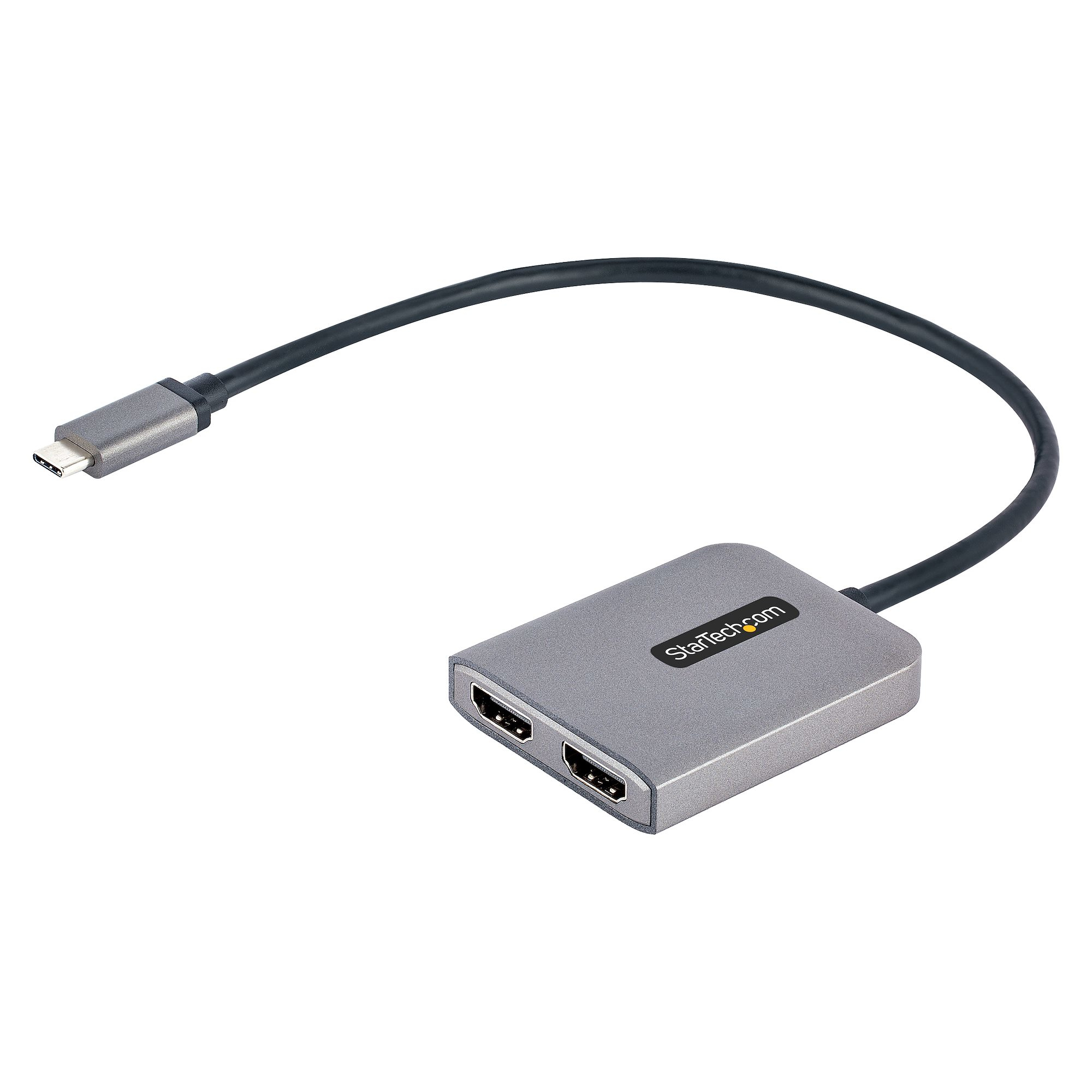

STARTECH.COM USB-C TO DUAL HDMI MST HUB - DUAL HDMI 4K 60HZ - 30CM CABLE, 3 YR
Peripherals & Accessories > Chargers & Power Adapters
- Brand: STARTECH
- Category: Peripherals
- SKU: MST14CD122HD
- MPN: MST14CD122HD
STARTECH
StarTech.com USB-C to Dual HDMI MST HUB - Dual HDMI 4K 60Hz - USB…
- SKU
- CNZ-DD-031173
- MPN
- MST14CD122HD
- Rating
- No reviews yet
Overview
Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent HDMI® monitors
This USB-C to HDMI MST Hub allows you to connect two HDMI monitors, using a USB-C enabled host device.
Multi-tasking Made Easy
This USB-C to HDMI video splitter connects up to two additional displays in extended or mirror mode. Connecting two independent 4K 60Hz displays creates high-performance workstations, for users in your organization enabling easier multi-tasking resulting in increased productivity.
Host Connection
Output 1 Resolution
Output 2 Resolution
DisplayPort 1.4 with DSC
4K 60Hz
4K 60Hz
DisplayPort 1.4
4K 60Hz
4K 30Hz
DisplayPort 1.2
4K 30Hz
4K 30Hz
4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into two independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Hassle-Free Setup
Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 4, Thunderbolt 3, and USB4 enabled Windows devices. Plug-and-play installation with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, meaning no external power is required.
MST14CD122HD is backed by a StarTech.com 3-year warranty, and free lifetime multilingual, North American based technical support.
The StarTech.com Advantage
This USB-C to HDMI MST Hub allows you to connect two HDMI monitors, using a USB-C enabled host device.
Multi-tasking Made Easy
This USB-C to HDMI video splitter connects up to two additional displays in extended or mirror mode. Connecting two independent 4K 60Hz displays creates high-performance workstations, for users in your organization enabling easier multi-tasking resulting in increased productivity.
Host Connection
Output 1 Resolution
Output 2 Resolution
DisplayPort 1.4 with DSC
4K 60Hz
4K 60Hz
DisplayPort 1.4
4K 60Hz
4K 30Hz
DisplayPort 1.2
4K 30Hz
4K 30Hz
4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into two independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Hassle-Free Setup
Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 4, Thunderbolt 3, and USB4 enabled Windows devices. Plug-and-play installation with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, meaning no external power is required.
MST14CD122HD is backed by a StarTech.com 3-year warranty, and free lifetime multilingual, North American based technical support.
The StarTech.com Advantage
Key features
- USB connector type: USB Type-C
- USB connector gender: Male
- USB connector form factor: Straight
- DVI output: No
- High Dynamic Range (HDR) supported: Yes
- HDMI output: Yes
- DisplayPort output: Yes
- Number of displays supported: 2
- HDMI ports quantity: 2
- Maximum resolution: 3840 x 2160 pixels
- Refresh rate at maximum resolution: 60 Hz
- Audio output channels: 7.1 channels
- Chipset: Synaptics VMM5200
- Data transfer rate (max): 32.4 Gbit/s
- Product colour: Black, Grey
- Housing material: Plastic
- Integrated USB cable: Yes
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 x64, Windows 11, Windows 11 x64
- Width: 105 mm
- Depth: 43 mm
- Height: 14 mm
- Weight: 55 g
- USB cable length: 0.3 m
- Operating temperature (T-T): 0 - 70 °C
Specifications
Design
| Product colour | Black, Grey |
|---|---|
| Housing material | Plastic |
| Integrated USB cable | Yes |
Performance
| USB connector type | USB Type-C |
|---|---|
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| High Dynamic Range (HDR) supported | Yes |
| HDMI output | Yes |
| DisplayPort output | Yes |
| Number of displays supported | 2 |
| HDMI ports quantity | 2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 7.1 channels |
| Chipset | Synaptics VMM5200 |
| Data transfer rate (max) | 32.4 Gbit/s |
Logistics data
| Products per master (outer) case | 70 pc(s) |
|---|---|
| Master (outer) case width | 473 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 440 mm |
| Harmonized System (HS) code | 84733020 |
Packaging data
| Package width | 142 mm |
|---|---|
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 108.8 g |
Technical details
| Compliance certificates | CE, RoHS |
|---|
System requirements
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 x64, Windows 11, Windows 11 x64 |
|---|
Weight & dimensions
| Width | 105 mm |
|---|---|
| Depth | 43 mm |
| Height | 14 mm |
| Weight | 55 g |
| USB cable length | 0.3 m |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Questions
$77.04inc GST
