StarTech.com USB to Dual HDMI Adapter - 4K

USB to HDMI Adapter - USB to Dual HDMI Adapter - USB 3.0 to HDMI - External Video Card - 4K - Use this USB adapter to connect two independent HDMI displays to a single USB port

  • Brand: StarTech.com
  • Category: Video Cables
  • SKU: 3677777
  • MPN: USB32HD2
StarTech.com

StarTech.com USB 3.0 to Dual HDMI Adapter, USB to 2x HDMI Monitor…

SKU
CNZ-IM-042964
MPN
USB32HD2

Overview

USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®

This USB to HDMI® Dual Monitor adapter lets you add two independent HDMI displays to your computer using a single USB 3.0 port. One of the HDMI ports can output resolutions up to 4K, while the other can output resolutions up to 1920 x 1200.

Increases your productivity by providing multiple displays

Adding more displays to your workstation can be difficult, especially if your computer does not support MST or offer many external video ports. This USB to dual HDMI adapter features two video outputs, boosting your productivity by giving you more screen space to work from. With multiple displays you have the freedom to access multiple applications at the same time and reference material on one display while you compose on the other.

Maximizes your screen real estate with resolutions up to 4K

One of the ports on this USB video adapter supports resolutions up to 4K at 30Hz, meaning you can connect a 4K monitor, HDTV, or projector to your computer, even if your laptop or desktop video card doesn't natively support 4K output. The USB to HDMI 4K adapter lets you extend or mirror your primary display onto an Ultra HD monitor or television, giving you the additional screen space you need to simplify multitasking and maximize your productivity.

Perfect for all of your business applications with USB 3.0 performance

Using the high-bandwidth USB 3.0 interface, this USB 3.0 to HDMI adapter enables smoother scrolling through documents, higher resolutions and better overall performance than earlier USB adapters. This video adapter is intended to support all of your business applications including web browsing, e-mail, spreadsheets and presentations. You can also leave your system video card available for more demanding applications such as gaming or CAD design, while you use the USB monitors for reference material.

The USB32HD2 is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

  • USB connector type: USB Type-A
  • USB connector gender: Male
  • USB version: 3.2 Gen 1 (3.1 Gen 1)
  • DVI output: No
  • HDMI output: Yes
  • DisplayPort output: No
  • Number of displays supported: 2
  • Internal memory: 64 MB
  • Maximum resolution: 3840 x 2160 pixels
  • Maximum resolution (HDMI): 3840 x 2160 pixels
  • Supported graphics resolutions: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1366 x 768, 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 3840 x 2160
  • Audio output channels: 2.0 channels
  • Chipset: Trigger T6-688SL, Silicon Image - Sil9136-3
  • Product colour: Black
  • Housing material: Plastic
  • Integrated USB cable: Yes
  • Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
  • Minimum processor family: Core i5
  • Minimum processor speed: 2.4 GHz
  • Minimum RAM: 4 TB

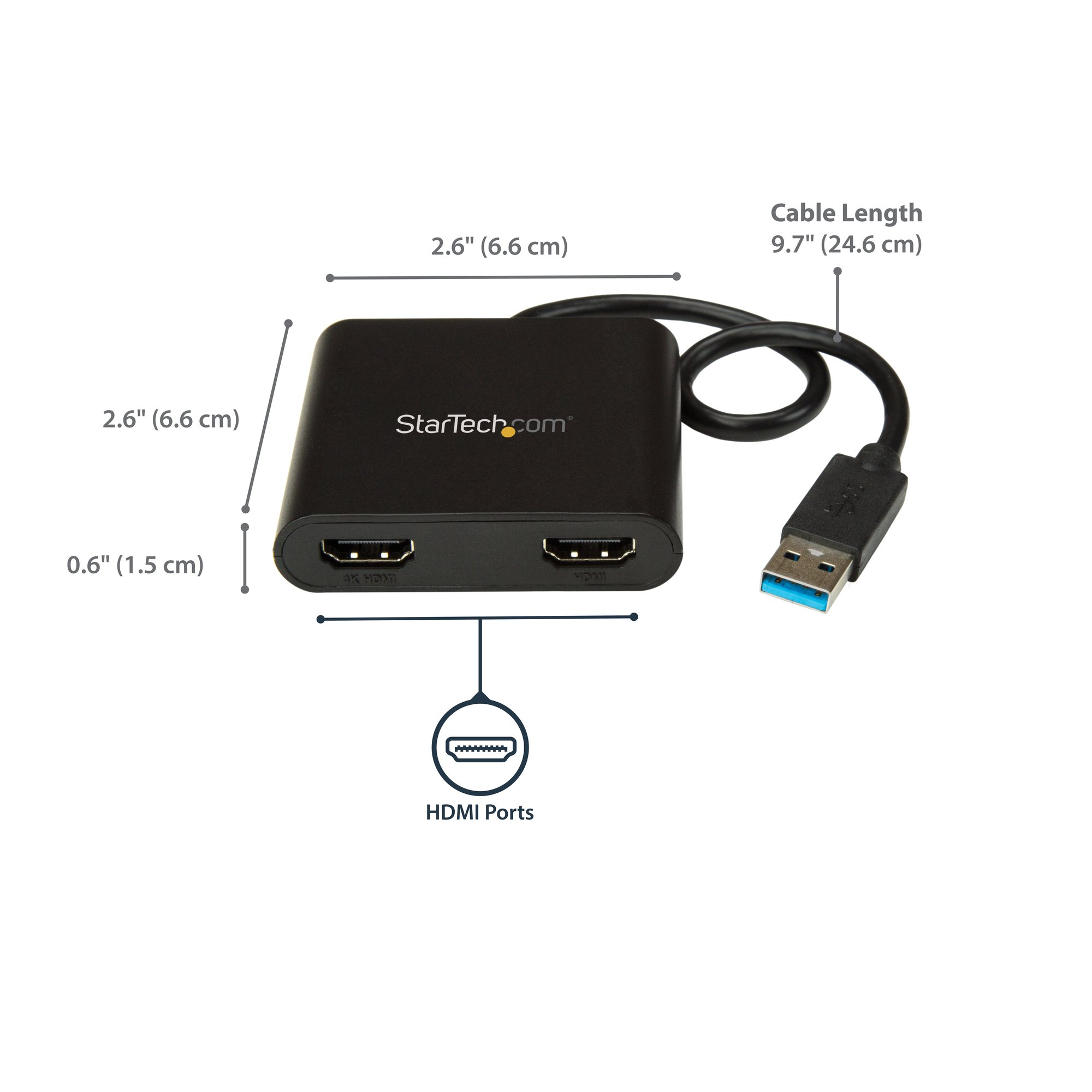

  • Width: 66 mm
  • Depth: 315 mm
  • Height: 15 mm
  • Weight: 56 g

Specifications

Design

Product colourBlack
Housing materialPlastic
Integrated USB cableYes

Performance

USB connector typeUSB Type-A
USB connector genderMale
USB version3.2 Gen 1 (3.1 Gen 1)
DVI outputNo
HDMI outputYes
DisplayPort outputNo
Number of displays supported2
Internal memory64 MB
Maximum resolution3840 x 2160 pixels
Maximum resolution (HDMI)3840 x 2160 pixels
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1366 x 768, 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 3840 x 2160
Audio output channels2.0 channels
ChipsetTrigger T6-688SL, Silicon Image - Sil9136-3

Logistics data

Products per master (outer) case40 pc(s)
Master (outer) case width310 mm
Master (outer) case length445 mm
Master (outer) case height430 mm
Harmonized System (HS) code84733020

Packaging data

Package width144 mm
Package depth207 mm
Package height38 mm
Package weight184 g

Packaging content

Quick installation guideYes

Technical details

Compliance certificatesCE, RoHS

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Minimum processor familyCore i5
Minimum processor speed2.4 GHz
Minimum RAM4 TB

Weight & dimensions

Width66 mm
Depth315 mm
Height15 mm
Weight56 g
USB cable length0.25 m

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 75 °C
Operating relative humidity (H-H)0 - 85%

Questions

$110.39inc GST
