StarTech.com USB 2.0 to VGA Adapter, USB to VGA Monitor Converter…

SKU: CNZ-IM-042892
MPN: USB2VGAE3
Rating: No reviews yet

StarTech.com USB to VGA External Video Card 1920x1200 — StarTech.com

Overview

USB 2.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows

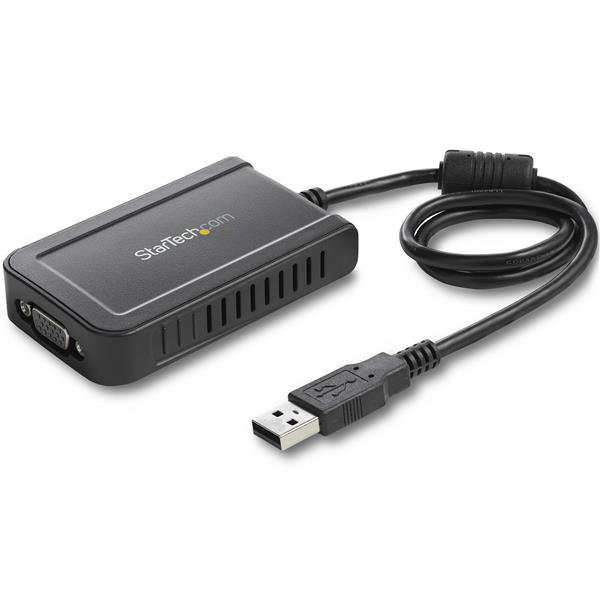

The USB2VGAE3 USB VGA Multi-Monitor External Video Adapter lets you add a high-resolution (1920x1200) external VGA output to your desktop or laptop computer, using an available USB 2.0 port.

A cost-effective solution for systems that lack the outputs required for a multi-monitor setup, this high-performance USB to VGA adapter can be used to mirror your primary display and show the same image on both screens, or extend your desktop to double your workspace.

This small form factor USB video adapter can be used with up to 4 additional (5 total) USB2VGAE3 USB video adapters, creating multiple VGA connections to add displays quickly and easily - all without having to open the computer case to add extra video cards.

Application Diagram

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

USB connector type: USB Type-A
USB version: 2.0
DVI output: No
HDMI output: No
DisplayPort output: No
Number of displays supported: 1
VGA (D-Sub) output: Yes
Internal memory: 32 MB
Maximum resolution: 1920 x 1200 pixels
Supported graphics resolutions: 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Chipset: Trigger - T2-285A
USB pass-through: No
Certification: CE, FCC, RoHS
Product colour: Black
Integrated USB cable: Yes
Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Width: 52.5 mm
Depth: 88 mm
Height: 18 mm
Weight: 94 g
USB cable length: 0.5 m
Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -25 - 75 °C
Operating relative humidity (H-H): 0 - 95%

Specifications

Design

Product colour	Black
Integrated USB cable	Yes

Performance

USB connector type	USB Type-A
USB version	2.0
DVI output	No
HDMI output	No
DisplayPort output	No
Number of displays supported	1
VGA (D-Sub) output	Yes
Internal memory	32 MB
Maximum resolution	1920 x 1200 pixels
Supported graphics resolutions	800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Chipset	Trigger - T2-285A
USB pass-through	No
Certification	CE, FCC, RoHS

Logistics data

Harmonized System (HS) code	84733020

Packaging data

Package width	145 mm
Package depth	210 mm
Package height	40 mm
Package weight	247 g

Packaging content

Drivers included	Yes
Manual	Yes

Technical details

Compliance certificates	RoHS

System requirements

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight & dimensions

Width	52.5 mm
Depth	88 mm
Height	18 mm
Weight	94 g
USB cable length	0.5 m

Operational conditions

Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-25 - 75 °C
Operating relative humidity (H-H)	0 - 95%
