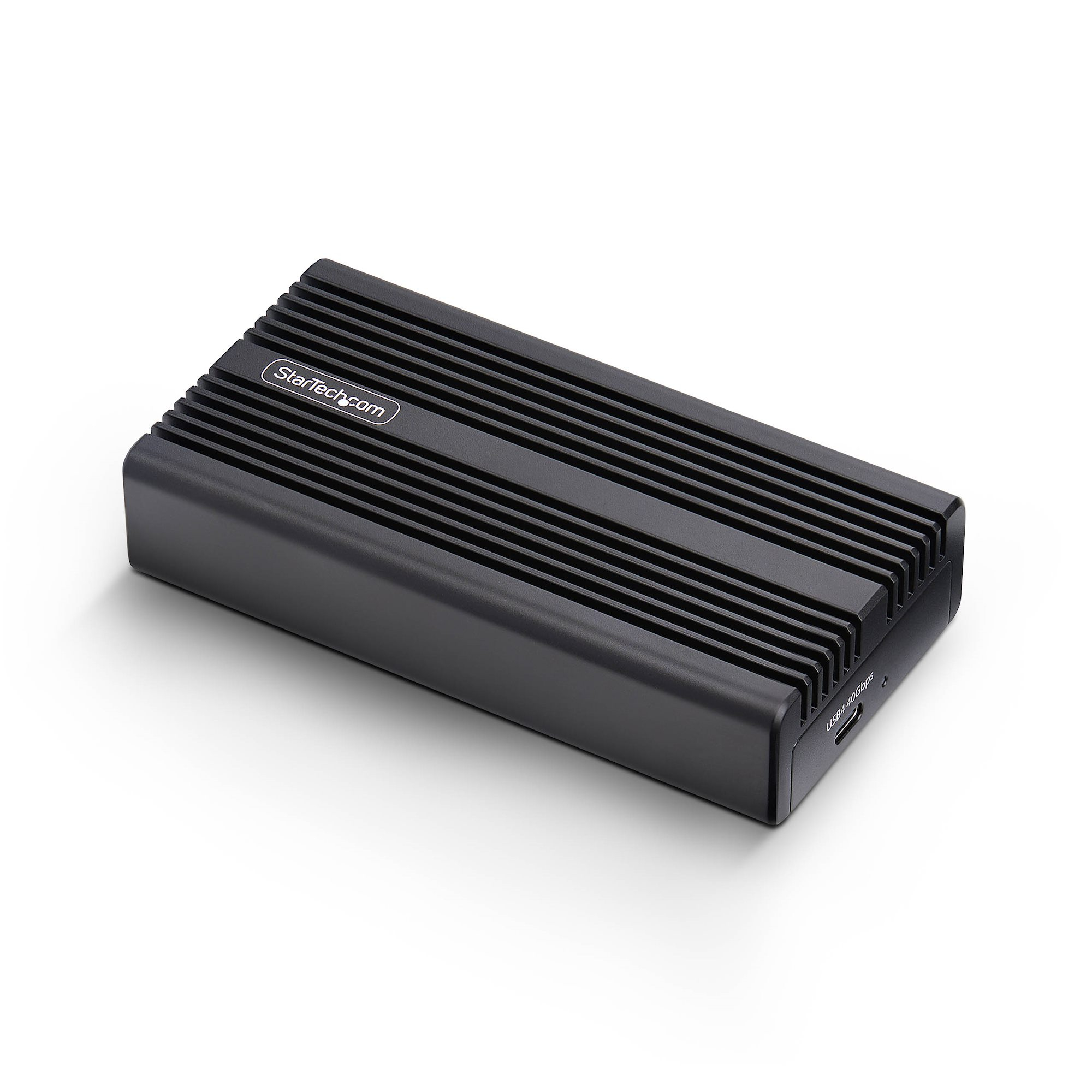

STARTECH.COM USB4 M.2 NVME ENCLOSURE, 40GBPS EXTERNAL USB-C SSD ENCLOSURE, 2 YR

Peripherals & Accessories > Memory Cards

  • Brand: STARTECH
  • Category: Storage Media
  • SKU: 1USB4-NVME-ENCLOSURE
  • MPN: 1USB4-NVME-ENCLOSURE
STARTECH

StarTech.com USB4 M.2 NVMe Enclosure, 40Gbps, External…

SKU
CNZ-DD-003974
MPN
1USB4-NVME-ENCLOSURE

Overview

Access Ultra-Fast NVMe Storage via 40Gbps USB4 with Thunderbolt 5 Compatibility

Turn your PCIe M.2 NVMe SSD into a fast and highly portable USB-C external storage solution. This NVMe enclosure supports USB4 (40Gbps), delivering read/write speeds up to 3,800 MB/s. Ideal for power users handling large media files, managing data across devices, or performing OS imaging, data recovery, and disk management.

Versatile USB-C & Thunderbolt Support

Built for current and next-gen storage, this USB4 enclosure connects M-Key or B+M Key M.2 NVMe SSDs (2230/2242/2260/2280) to USB4, Thunderbolt 5/4/3, or USB 3.2 hosts. It supports PCIe Gen 4x4 NVMe drives and offers native, driverless compatibility with Windows, macOS, and Linux. Seamless interoperability with USB-C and Thunderbolt systems makes it ideal for fast backups and high-volume data transfers.

Robust Heat Dissipation

The anodized aluminum housing features a heatsink-style cover design with a high-efficiency thermal pad to enable passive cooling during sustained workloads. The fanless construction allows for silent operation while maintaining consistent transfer rates during intensive tasks such as disk imaging or data capture.

Compact and Durable

The USB4 NVMe Enclosure's compact footprint fits comfortably in a technician's toolkit or laptop bag. The rugged aluminum housing not only helps with heat dissipation but also protects the SSD from physical damage during transport or deployment in demanding environments.

Key features

  • Number of storage drives supported: 1
  • Storage drive size: M.2
  • Supported storage drive interfaces: PCI Express
  • Supported storage drive heights: 22 mm
  • Supported storage drive lengths: 30,42,60,80 mm
  • NVMe: Yes
  • USB connectivity: Yes
  • USB version: USB4 Gen 4
  • USB connector type: USB Type-C
  • USB connector gender: Female
  • USB ports quantity: 1
  • Integrated USB cable: No
  • Product type: SSD enclosure
  • Product colour: Black
  • Material: Aluminium
  • LED indicators: Yes
  • Number of fans: 0 fan(s)
  • Data transfer rate: 40 Gbit/s
  • Chipset: ASMedia - ASM2464PD
  • Plug and Play: Yes
  • Power source type: USB
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 70 °C
  • Operating relative humidity (H-H): 0 - 90%

Specifications

Power

Power source typeUSB

Design

Product typeSSD enclosure
Product colourBlack
MaterialAluminium
LED indicatorsYes
Number of fans0 fan(s)

Storage

Number of storage drives supported1
Storage drive sizeM.2
Supported storage drive interfacesPCI Express
Supported storage drive heights22 mm
Supported storage drive lengths30,42,60,80 mm
NVMeYes

Performance

Data transfer rate40 Gbit/s
ChipsetASMedia - ASM2464PD
Plug and PlayYes

Logistics data

Master (outer) case width395 mm
Master (outer) case length200 mm
Master (outer) case height260 mm
Products per master (outer) case20 pc(s)

Packaging content

Cables includedUSB Type-C to USB Type-C
Screwdriver includedYes
ManualYes

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Ports & interfaces

USB connectivityYes
USB versionUSB4 Gen 4
USB connector typeUSB Type-C
USB connector genderFemale
USB ports quantity1
Integrated USB cableNo

Weight & dimensions

Width65 mm
Depth124.8 mm
Height28.8 mm
Weight340 g
Cable length0.3 m
Package width190 mm
Package depth114 mm
Package height35 mm
Package weight430 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%

Questions

$192.04inc GST
