STARTECH.COM VESA TV WALL MOUNT, FULL MOTION MOUNT FOR 23"-55" DISPLAYS 2 YR
Peripherals & Accessories > Peripherals & Accessories
- Brand: STARTECH
- Category: Monitors
- SKU: FHA-TV-WALL-MOUNT
- MPN: FHA-TV-WALL-MOUNT
STARTECH
StarTech.com VESA TV Wall Mount, Adjustable Full Motion TV Wall…
- SKU
- CNZ-DD-020557
- MPN
- FHA-TV-WALL-MOUNT
- Rating
- No reviews yet
−25%
Overview
Mounting Hardware Included | One-touch Adjustments | Digital Signage

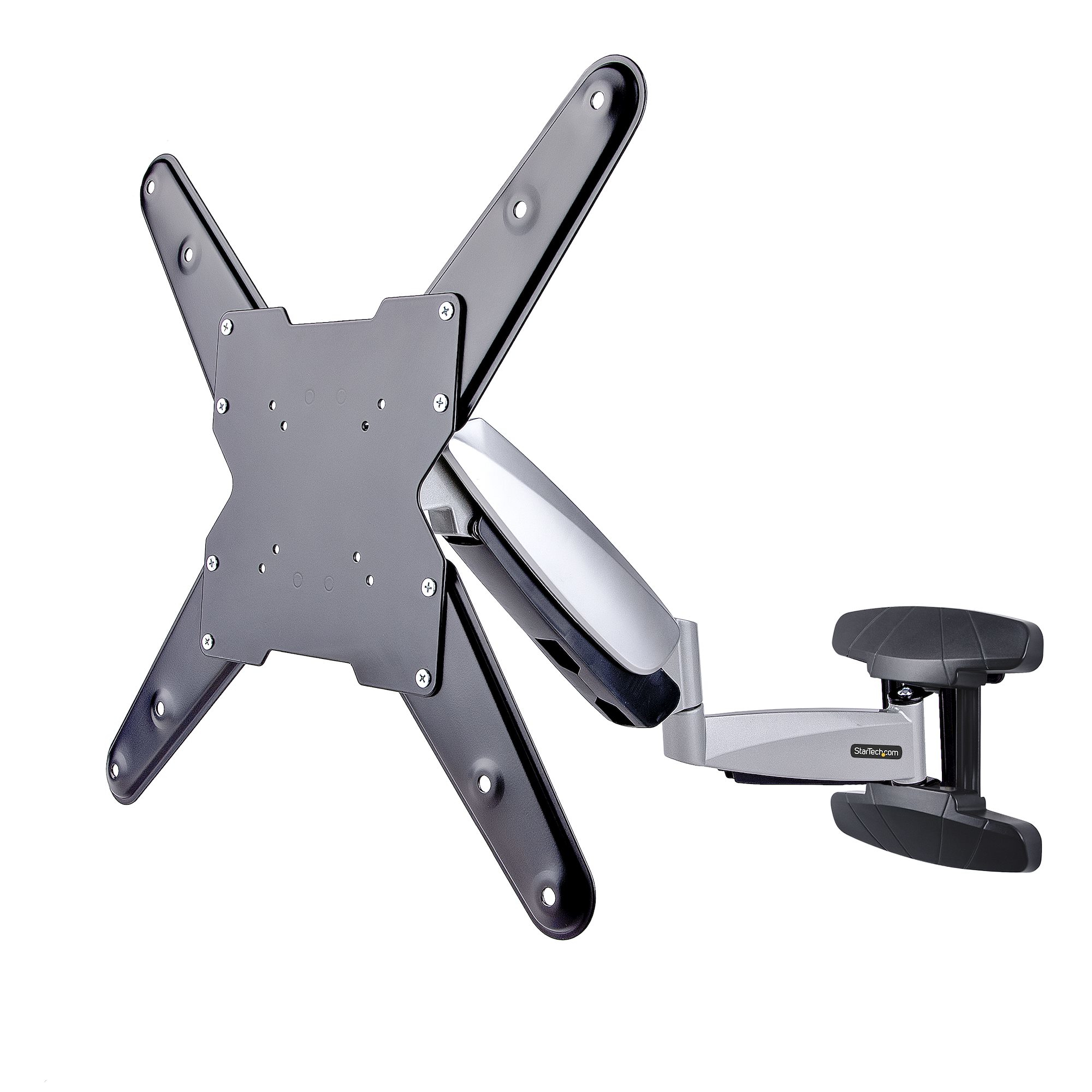

The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23" to 55" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.
Versatile TV Mounting
Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.
Supported VESA mounting patterns: 75x75,100x100, 200x100, 200x200, 300x300, 400x200, and 400x400.
Full-Motion Adjustment
The VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).
The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.
Durable Construction
The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.
The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23" to 55" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.
Versatile TV Mounting
Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.
Supported VESA mounting patterns: 75x75,100x100, 200x100, 200x200, 300x300, 400x200, and 400x400.
Full-Motion Adjustment
The VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).
The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.
Durable Construction
The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.
The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Key features
- Maximum weight capacity: 30 kg
- Minimum screen size: 58.4 cm (23")
- Number of displays supported: 1
- Maximum screen size: 139.7 cm (55")
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 400 x 400 mm
- Panel mounting interface: 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400
- Mounting type: Wall
- Height adjustment: Yes
- Tilt angle range: -15 - 8°
- Swivel angle: 180°
- Rotating: Yes
- Angle of rotation: 3°
- Cable management: Yes
- Distance to the wall (max): 59.5 cm
- Distance to the wall (min): 5.8 cm
- Product colour: Black, Silver
- Housing material: Aluminium, Steel
- Anti-theft function: No
- Country of origin: China
- VESA mount included: Yes
- Wrench included: Yes
- Wrench type: Hexagonal wrench
- Number of washers included: 13
Specifications
Design
| Product colour | Black, Silver |
|---|---|
| Housing material | Aluminium, Steel |
| Anti-theft function | No |
Mounting
| Maximum weight capacity | 30 kg |
|---|---|
| Minimum screen size | 58.4 cm (23") |
| Number of displays supported | 1 |
| Maximum screen size | 139.7 cm (55") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 |
| Mounting type | Wall |
Ergonomics
| Height adjustment | Yes |
|---|---|
| Tilt angle range | -15 - 8° |
| Swivel angle | 180° |
| Rotating | Yes |
| Angle of rotation | 3° |
| Cable management | Yes |
| Distance to the wall (max) | 59.5 cm |
| Distance to the wall (min) | 5.8 cm |
Logistics data
| Master (outer) case width | 605 mm |
|---|---|
| Master (outer) case length | 460 mm |
| Master (outer) case height | 305 mm |
| Products per master (outer) case | 1 pc(s) |
Packaging data
| Package width | 585 mm |
|---|---|
| Package depth | 440 mm |
| Package height | 95 mm |
| Package weight | 6.1 kg |
Packaging content
| Wrench included | Yes |
|---|---|
| Wrench type | Hexagonal wrench |
| Number of washers included | 13 |
| Number of spacers included | 16 |
| Screws included | Yes |
| Number of screws | 33 |
| Manual | Yes |
| Mounting plate included | Yes |
Technical details
| Country of origin | China |
|---|---|
| VESA mount included | Yes |
Weight & dimensions
| Width | 450 mm |
|---|---|
| Depth | 595 mm |
| Height | 450 mm |
| Weight | 6 kg |
