STARTECH.COM VGA TO CAT 5 MONITOR EXTENDER KIT (250FT/80M) - VGA CAT5, 2 YR
Peripherals & Accessories > Chargers & Power Adapters
- Brand: STARTECH
- Category: Peripherals
- SKU: ST121UTPEP
- MPN: ST121UTPEP
STARTECH
StarTech.com VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA…
- SKU
- CNZ-DD-042186
- MPN
- ST121UTPEP
- Rating
- No reviews yet
−23%
Overview

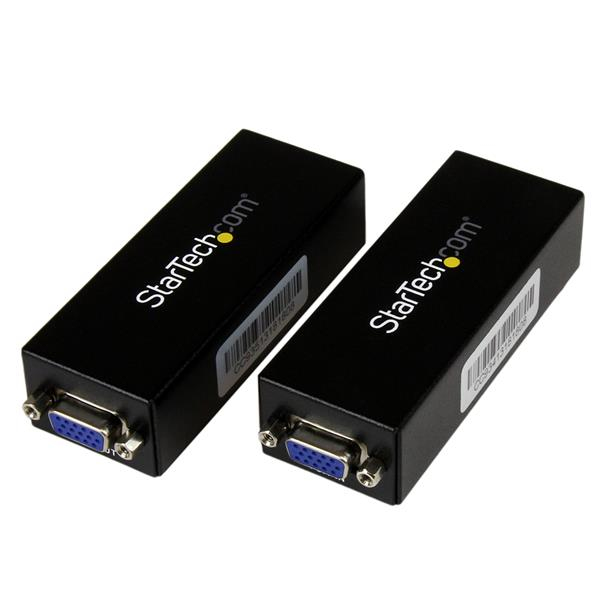

Extend a VGA signal to a remote display using Cat5 cabling
The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).
Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.
To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).
Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.
To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1200 pixels
- Cable types supported: Cat5
- Maximum transfer distance: 80 m
- Supported graphics resolutions: 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
- Material: Aluminium
- Plug and Play: Yes
- Daisy chain: No
- Product colour: Black
- Certification: CE, FCC, REACH, TAA
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- VGA (D-Sub) input ports: 1
- VGA (D-Sub) output ports: 1
- DC-in jack: Yes
- Operating voltage: 12 V
- Output current: 0.6 A
- Power consumption (typical): 7.2 W
- External power adapter: Yes
- Power plug type: Type M
- Width: 138 mm
- Depth: 100 mm
- Height: 25 mm
- Weight: 263 g
Specifications
Power
| Operating voltage | 12 V |
|---|---|
| Output current | 0.6 A |
| Power consumption (typical) | 7.2 W |
| External power adapter | Yes |
| Power plug type | Type M |
Features
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 80 m |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Material | Aluminium |
| Plug and Play | Yes |
| Daisy chain | No |
| Product colour | Black |
| Certification | CE, FCC, REACH, TAA |
Packaging data
| Package width | 140 mm |
|---|---|
| Package depth | 315 mm |
| Package height | 60 mm |
| Package weight | 795 g |
Packaging content
| AC adapter included | Yes |
|---|---|
| Cables included | VGA |
| Included power plug types | AU, EU, NA, UK |
| Manual | Yes |
| Mounting brackets included | Yes |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| RJ-45 input ports | 1 |
|---|---|
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 138 mm |
|---|---|
| Depth | 100 mm |
| Height | 25 mm |
| Weight | 263 g |
Questions
