StarTech.com VGA VIDEO EXTENDER OVER CAT5
VGA VIDEO EXTENDER OVER CAT5 (ST121 SERIES)
- Brand: StarTech.com
- Category: Audio & Video
- SKU: 2977638
- MPN: ST121UTP
StarTech.com
StarTech.com VGA Video Extender over Cat5 (ST121 Series)
- SKU
- CNZ-IM-044221
- MPN
- ST121UTP
- Rating
- No reviews yet
−19%
Overview

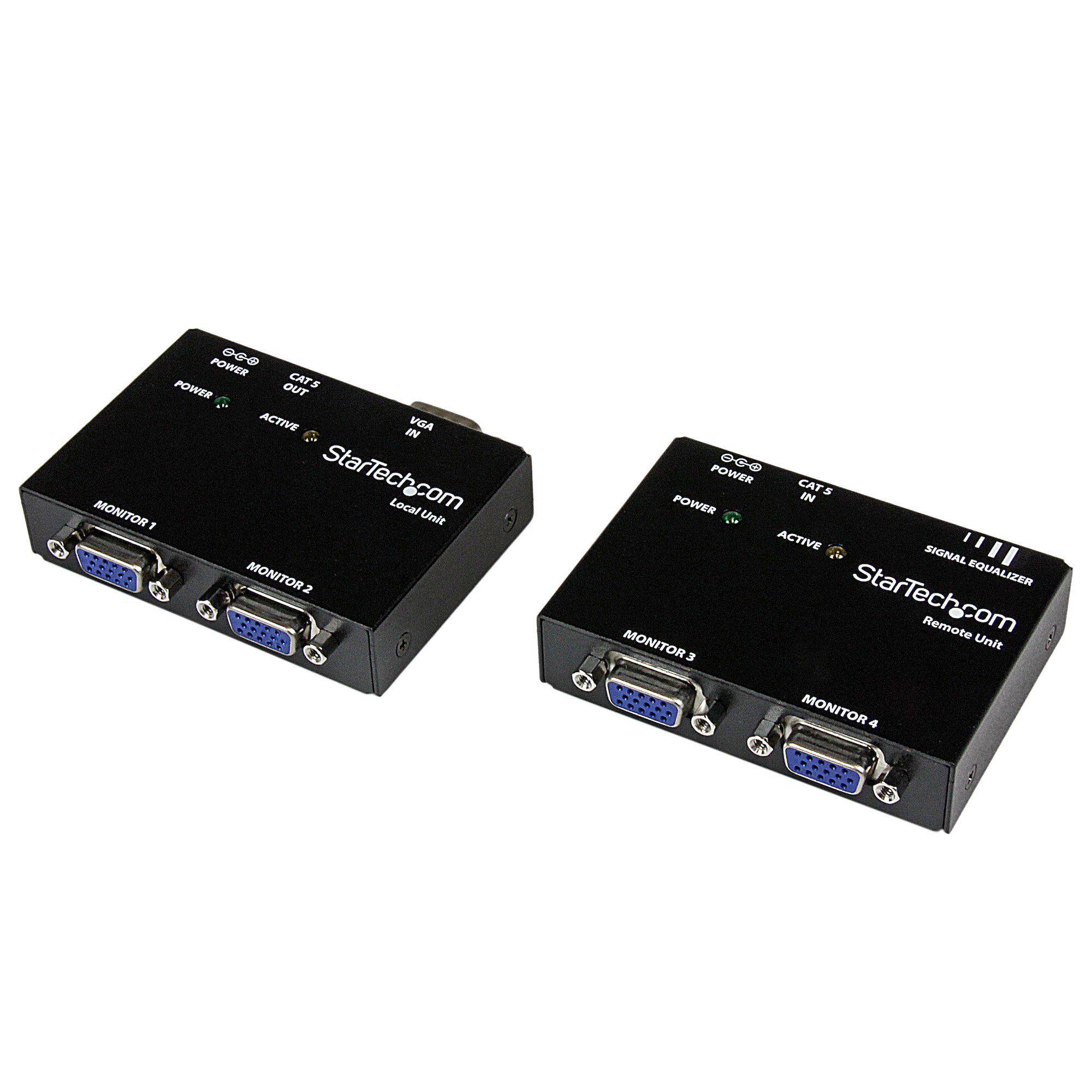

The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required.
The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total.
The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall, desk or cabinet.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 1440 x 900 pixels
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 150 m
- Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+)
- Material: Aluminium
- Rubber feet: Yes
- Product colour: Black
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- VGA (D-Sub) input ports: 1
- VGA (D-Sub) output ports: 4
- Operating voltage: 9 V
- Output current: 0.6 A
- Power consumption (typical): 5.4 W
- Power plug type: Type M
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Width: 83 mm
- Depth: 60 mm
- Height: 20 mm
- Weight: 335 g
Specifications
Power
| Operating voltage | 9 V |
|---|---|
| Output current | 0.6 A |
| Power consumption (typical) | 5.4 W |
| Power plug type | Type M |
Features
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 1440 x 900 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 150 m |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+) |
| Material | Aluminium |
| Rubber feet | Yes |
| Product colour | Black |
Packaging data
| Package width | 91 mm |
|---|---|
| Package depth | 240 mm |
| Package height | 186 mm |
| Package weight | 800 g |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Mounting brackets included | Yes |
Technical details
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | CE |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 4 |
Weight & dimensions
| Width | 83 mm |
|---|---|
| Depth | 60 mm |
| Height | 20 mm |
| Weight | 335 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
