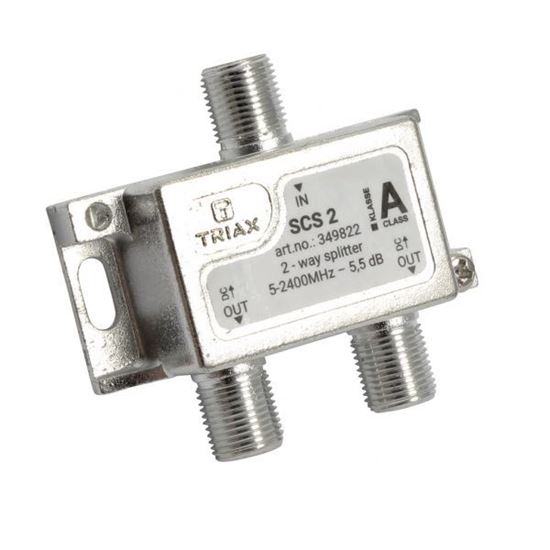

TRIAX RF 2-Way Splitter, 2.4GHz. Coaxial Splitter Ideal for SAT-IF &

RF 2-Way Splitter 2.4GHz. Coaxial Splitter for SAT-IF & MATV Distribution Networks.

  • Brand: Triax
  • Category: Audio & Video
  • SKU: 349822
  • MPN: 349822
Triax

TRIAX RF 2-Way Splitter, 2.4GHz. Coaxial Splitter Ideal for SAT-IF &

SKU
CNZ-CD-003259
MPN
349822
TRIAX RF 2-Way Splitter, 2.4GHz. Coaxial Splitter Ideal for SAT-IF & — Triax

Overview

TRIAX RF 2-Way Splitter, 2.4GHz. Coaxial Splitter Ideal for SAT-IF & MATV Distribution Networks. Frequency Range 5-2400 MHz. DC Pass Via Diodes from all Outputs. High Shielding Against Ingress Noise.

Specifications

Impedance

Impedance75Ω

Packaging

PackagingPolybag

Net Weight

Net Weight0.035kg

Application

ApplicationSAT-IF, MATV 2.4Ghz +DC (out->in)

Environment

EnvironmentIndoor

Packing QTY

Packing QTY1

Tara Weight

Tara Weight0.003kg

Total Weight

Total Weight0.038kg

Certification

CertificationEN 50581:2012 (RoHS II)

Main material

Main materialZinc diecast/Sn plated

Product Depth

Product Depth17mm

Product Width

Product Width52mm

Connector Type

Connector TypeF-female (IEC 61 169-24)

DC Passthrough

DC PassthroughYes (max. 0.5A/24V)

Product Height

Product Height47mm

Frequency range

Frequency range5~2400MHz

Packaging Depth

Packaging Depth0.017m

Packaging Width

Packaging Width0.057m

Number of inputs

Number of inputs1

Packaging Height

Packaging Height0.052m

Packaging Volume

Packaging Volume0.000m

Number of outputs

Number of outputs2

Screening Efficiency

Screening EfficiencyEN50083-2 (Class A)

Temperature - operating

Temperature - operating-30°C~+60°C

Isolation (tap-tap) 5~40MHz

Isolation (tap-tap) 5~40MHz22dB

Return loss (in-out) 5~40MHz

Return loss (in-out) 5~40MHz11.5dB

Shielding efficiency VHF/UHF

Shielding efficiency VHF/UHF>85dB

Isolation (tap-tap) 40~1000MHz

Isolation (tap-tap) 40~1000MHz25dB

Insertion loss (in-out) 5~40Mhz

Insertion loss (in-out) 5~40Mhz4.4dB

Return loss (in-out) 40~1000MHz

Return loss (in-out) 40~1000MHz15.0dB

Isolation (tap-tap) 1000~2150MHz

Isolation (tap-tap) 1000~2150MHz24dB

Isolation (tap-tap) 2150~2400MHz

Isolation (tap-tap) 2150~2400MHz22dB

Return loss (in-out) 1000~2150MHz

Return loss (in-out) 1000~2150MHz12.0dB

Return loss (in-out) 2150~2400MHz

Return loss (in-out) 2150~2400MHz11.0dB

Insertion loss (in-out) 40~1000Mhz

Insertion loss (in-out) 40~1000Mhz4.0dB

Insertion loss (in-out) 1000~2150MHz

Insertion loss (in-out) 1000~2150MHz5.5dB

Insertion loss (in-out) 2150~2400Mhz

Insertion loss (in-out) 2150~2400Mhz6.0dB

Questions

$35.64inc GST
