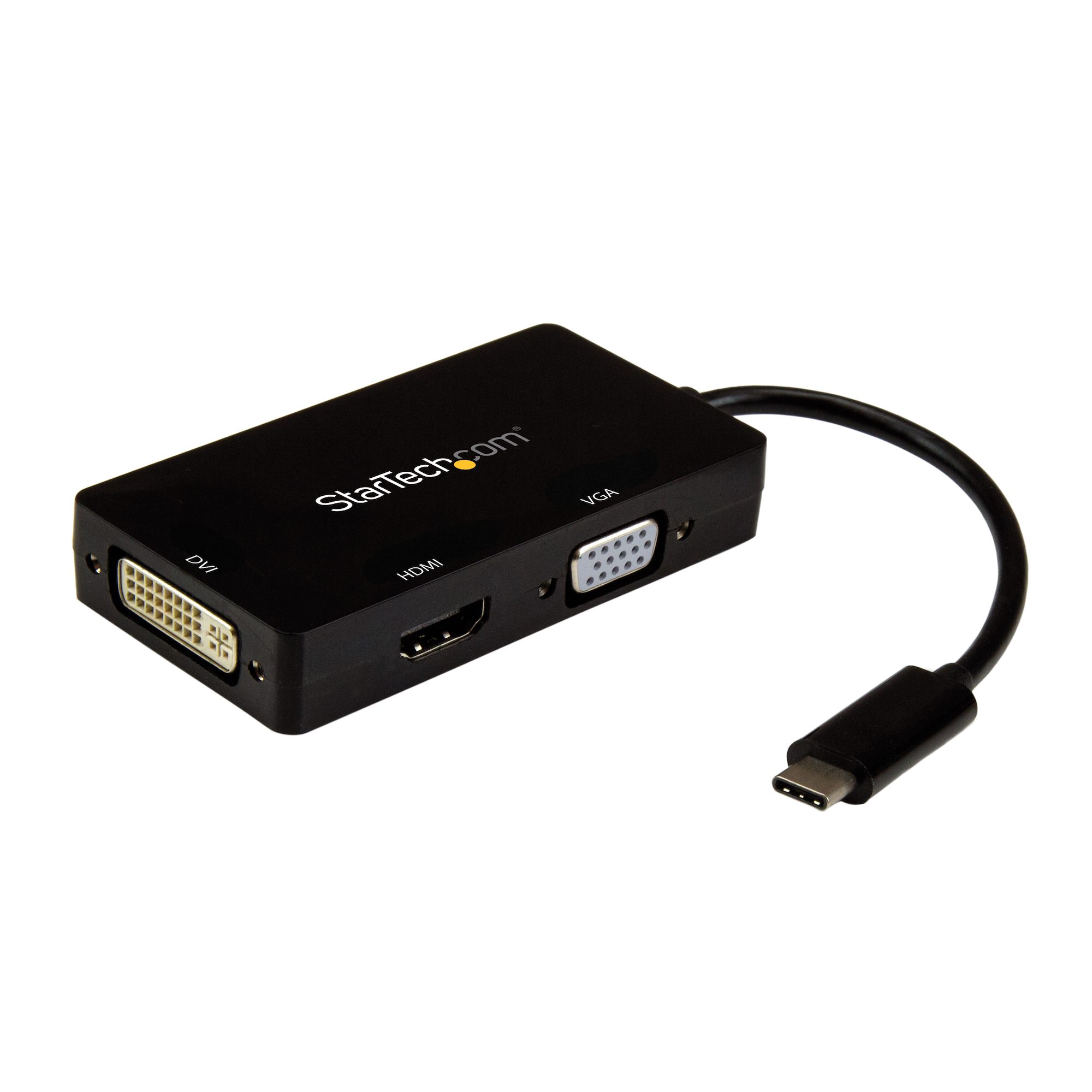

USB C 3 in 1 Multi Display Adapter
- Brand: StarTech.com
- Category: Computer Cables & Adapters
- SKU: 369638
- MPN: CDPVGDVHDBP
StarTech.com
StarTech.com USB C 3 in 1 Multi Display Adapter
- SKU
- CNZ-BC-004392
- MPN
- CDPVGDVHDBP
- Rating
- No reviews yet
Overview
The supplier has not provided a description for this product yet.
Specifications
AV Input
| AV Input | USB-C |
|---|
Humidity
| Humidity | 10%-85% RH |
|---|
Warranty
| Warranty | 3 Years |
|---|
AV Output
| AV Output | DVI-I (Digital Only) - Single-Link, HDMI - 1.4, VGA |
|---|
Chipset ID
| Chipset ID | ITE - IT6224FN |
|---|
<b>Note</b>
| <b>Note</b> | Maximum Cable Distance to Display refers to digital video. VGA distance capabilities are dependent upon the quality of your cabling |
|---|
Connector A
| Connector A | 1 - USB-C (24 pin) DisplayPort Alt Mode |
|---|
Connector B
| Connector B | 1 - HDMI (19 pin), 1 - DVI-I (29 pin), 1 - VGA (15 pin, High Density D-Sub) |
|---|
Cable Length
| Cable Length | 5.9 in [150 mm] |
|---|
Package Width
| Package Width | 4.8 in [12.2 cm] |
|---|
Package Height
| Package Height | 0.7 in [1.9 cm] |
|---|
Package Length
| Package Length | 5.0 in [12.7 cm] |
|---|
Power Delivery
| Power Delivery | No PD Pass-Through |
|---|
Video Revision
| Video Revision | DisplayPort 1.2 |
|---|
Package Quantity
| Package Quantity | 1 |
|---|
Included in Package
| Included in Package | 1 - USB-C travel adapter |
|---|
Storage Temperature
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
|---|
Audio Specifications
| Audio Specifications | HDMI - 7.1 Channel Audio, DVI - No Audio Support, VGA - No Audio Support |
|---|
Operating Temperature
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
|---|
Supported Resolutions
| Supported Resolutions | <b>HDMI output:</b> 3840 x 2160 (@ 30 Hz), 2560 x 1600, 2048 x 1280 (@ 60 Hz), 1920 x 1200, 1920 x 1080, 1280 x 720 <br><br> <b>VGA and DVI output:</b> 1920 x 1200 (@ 60 Hz), 1920 x 1080, 1280 x 720 |
|---|
Wide Screen Supported
| Wide Screen Supported | Yes |
|---|
General Specifications
| General Specifications | Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function. |
|---|
# of Displays Supported
| # of Displays Supported | 1 |
|---|
Active or Passive Adapter
| Active or Passive Adapter | Active |
|---|
Shipping (Package) Weight
| Shipping (Package) Weight | 1.6 oz [46.0 g] |
|---|
Maximum Analog Resolutions
| Maximum Analog Resolutions | 1920 x 1200 @ 60Hz |
|---|
Maximum Digital Resolutions
| Maximum Digital Resolutions | 3840 x 2160 @ 30Hz |
|---|
System and Cable Requirements
| System and Cable Requirements | Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter. |
|---|
Maximum Cable Distance To Display
| Maximum Cable Distance To Display | 49.9 ft [15.2 m] |
|---|
Questions
$132.24inc GST
