VERTIV PSA - 1000VA MINI TOWER UPS PSA - 1000VA MINI TOWER UPS
Brand: VERTIV Category: UPS Systems SKU: 1009736 MPN: PSA1000MT3-230U Home UPS Systems VERTIV VERTIV Vertiv Liebert PSA 1000VA uninterruptible power supply (UPS)…
SKU CNZ-IM-001787

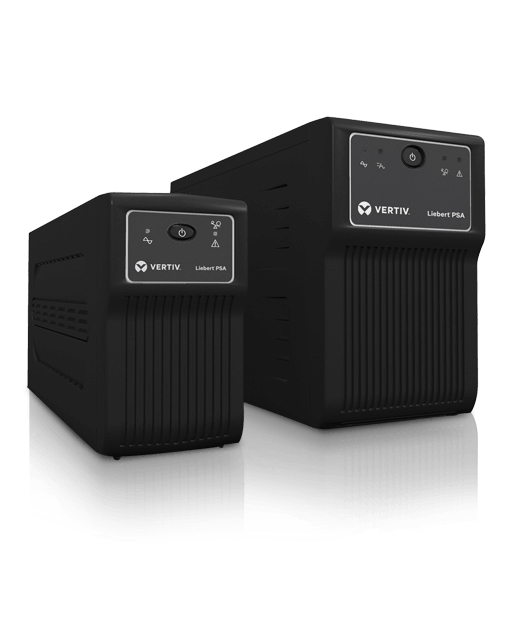

MPN PSA1000MT3-230U Overview Specifications Questions Overview The Liebert® PSA is a compact line-interactive UPS that offers cost-effective, full featured power protection for small office computers and electronic equipment Designed with simple controls for easy operation, the Liebert PSA provides up to five minutes of back-up time at full load... more than enough time to save work in process and shut down your system. Shutdown software and a USB cable are also included, to allow remote alerts and automated graceful shutdown of the connected systems.
Key features UPS topology: Line-Interactive Output power capacity: 1 kVA Output power: 600 W Waveform: Stepwise Input operation voltage (min): 160 V Input operation voltage (max): 287 V Input frequency: 50/60 Hz Response time: 6 ms Number of output phases: 1 Power factor: 0.6 Output power factor: 0.6 Surge protection: Yes Audible alarm(s): Yes AC outlet types: IEC 320, C13 coupler Power plug: C14 coupler AC outlets quantity: 8 AC outlet(s) USB port: Yes USB 2.0 ports quantity: 1 Serial ports quantity: 1 Battery technology: Sealed Lead Acid (VRLA) Battery capacity: 7 VAh Battery voltage: 12 V Number of batteries supported: 2 Typical backup time at full load: 3 min At a glance Form factor Tower Cooling type Passive Product colour Black LED indicators Yes International Protection (IP) code IP20 Battery technology Sealed Lead Acid (VRLA) Battery capacity 7 VAh Battery voltage 12 V
All 52 specifications Specifications Design Form factor Tower Cooling type Passive Product colour Black LED indicators Yes International Protection (IP) code IP20
Battery Battery technology Sealed Lead Acid (VRLA) Battery capacity 7 VAh Battery voltage 12 V Number of batteries supported 2 Typical backup time at full load 3 min Typical backup time at half load 10 min Battery recharge time 6 h
Features UPS topology Line-Interactive Output power capacity 1 kVA Output power 600 W Waveform Stepwise Input operation voltage (min) 160 V Input operation voltage (max) 287 V Input frequency 50/60 Hz Response time 6 ms Number of output phases 1 Power factor 0.6 Output power factor 0.6 Surge protection Yes Audible alarm(s) Yes
Certificates Compliance certificates RoHS Certification CE
Logistics data Harmonized System (HS) code 85078000
Other features Battery type VRLA Output connections 8 x IEC 320 C13 Dimensions (WxDxH) 147 x 360 x 234 mm Nominal output voltage 230 V
Packaging data Package width 238 mm Package depth 432 mm Package height 352 mm Package weight 10.7 kg
Ports & interfaces AC outlet types IEC 320, C13 coupler Power plug C14 coupler AC outlets quantity 8 AC outlet(s) USB port Yes USB 2.0 ports quantity 1 Serial ports quantity 1
Weight & dimensions Width 147 mm Depth 360 mm Height 234 mm Weight 9.5 kg
Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -15 - 40 °C Operating relative humidity (H-H) 0 - 90% Storage relative humidity (H-H) 0 - 90% Operating altitude 0 - 3000 m
Safety regulation & standards Safety IEC/EN/AS 62040-1-1
$355.34 inc GST
