VERTIV PSA - 1500VA MINI TOWER UPS

PSA - 1500VA MINI TOWER UPS

  • Brand: VERTIV
  • Category: UPS Systems
  • SKU: 3743071
  • MPN: PSA1500MT3-230U
VERTIV

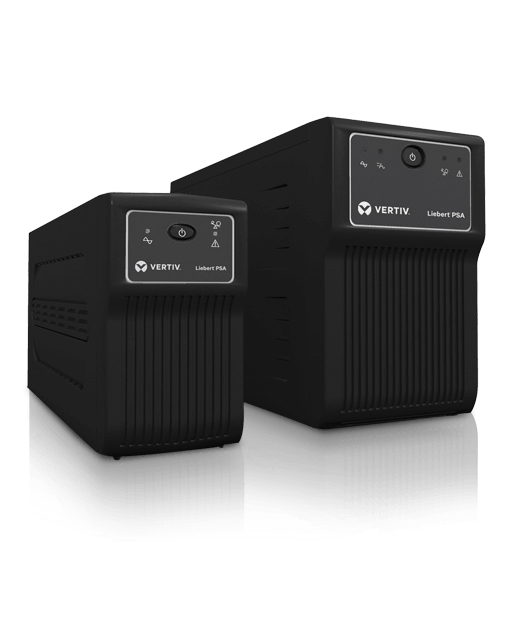

Vertiv Liebert PSA 1500VA uninterruptible power supply (UPS)…

SKU
CNZ-IM-001788
MPN
PSA1500MT3-230U
−20%
VERTIV PSA - 1500VA MINI TOWER UPS — VERTIV

Overview

Liebert PSA 1500VA is a compact line-interactive UPS that offers cost-effective, full featured power protection for small office computer and electronic equipment. Liebert PSA mixes unique features and extraordinary performance. Designed with simple controls for easy operation, it provides up to five minutes of back-up time at full load: more than enough time to save work in process and shut down your system.

Key features

  • UPS topology: Line-Interactive
  • Output power capacity: 1.5 kVA
  • Output power: 900 W
  • Waveform: Stepwise
  • Input operation voltage (min): 160 V
  • Input operation voltage (max): 287 V
  • Input frequency: 50/60 Hz
  • Output frequency: 50/60 Hz
  • Surge energy rating: 570 J
  • Response time: 6 ms
  • Number of input phases: 1
  • Number of output phases: 1
  • Power factor: 0.6
  • Output power factor: 0.6
  • Surge protection: Yes
  • Audible alarm(s): Yes
  • AC outlet types: IEC 320, C13 coupler
  • Power plug: C14 coupler
  • AC outlets quantity: 8 AC outlet(s)
  • USB port: Yes
  • USB 2.0 ports quantity: 1
  • Serial ports quantity: 1
  • Battery technology: Sealed Lead Acid (VRLA)
  • Battery capacity: 9 VAh

Specifications

Design

Form factorTower
Cooling typePassive
Product colourBlack
International Protection (IP) codeIP20

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 VAh
Battery voltage12 V
Number of batteries supported2
Typical backup time at full load6 min
Typical backup time at half load12 min
Battery recharge time6 h

Features

UPS topologyLine-Interactive
Output power capacity1.5 kVA
Output power900 W
WaveformStepwise
Input operation voltage (min)160 V
Input operation voltage (max)287 V
Input frequency50/60 Hz
Output frequency50/60 Hz
Surge energy rating570 J
Response time6 ms
Number of input phases1
Number of output phases1
Power factor0.6
Output power factor0.6
Surge protectionYes
Audible alarm(s)Yes

Certificates

Compliance certificatesRoHS
CertificationCE

Logistics data

Harmonized System (HS) code85078000

Other features

Battery typeVRLA
Dimensions (WxDxH)147 x 360 x 234 mm
Nominal input voltage230 V

Packaging data

Package width238 mm
Package depth432 mm
Package height352 mm
Package weight12.8 kg

Ports & interfaces

AC outlet typesIEC 320, C13 coupler
Power plugC14 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
Serial ports quantity1

Weight & dimensions

Width147 mm
Depth360 mm
Height234 mm
Weight12.6 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 3000 m

Safety regulation & standards

SafetyIEC/EN/AS 62040-1-1

Questions

$516.34inc GST
