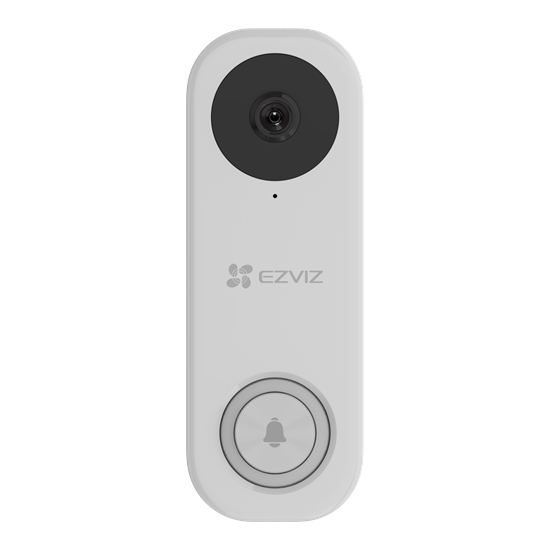

EZVIZ WiFi Video Doorbell (Wired) with 176 FoV & 2-Way Talk.
- Brand: Ezviz
- SKU: DB1PRO-5MP
- MPN: DB1PRO-5MP
Overview
EZVIZ WiFi Video Doorbell (Wired) with 176 FoV & 2-Way Talk. 2K (5MP) Res, IR Vision (up to 5m), Dual-Band, Supports H.265, Built-in Mic & Speaker, IP65, Supports STOCK CLEARANCE SALE
Specifications
DNR
| DNR | 2D/3D DNR |
|---|
WDR
| WDR | DWDR |
|---|
Lens
| Lens | 2.0 mm @ F2.0,view angle: 176° (Diagonal) |
|---|
Size
| Size | 128.3 × 46.3 × 19.3 mm (5.1 × 1.8 × 0.8 inch) |
|---|
Spec
| Spec | Specifications |
|---|
Model
| Model | CS-DB1-B0-1J5W2FR |
|---|
Weight
| Weight | Doorbell: 105 g (3.7 oz), With Package: 440 g (15.52 oz) |
|---|
Protocol
| Protocol | EZVIZ cloud proprietary protocol |
|---|
Model (2)
| Model (2) | Camera Parameters |
|---|
Frame Rate
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
|---|
In the box
| In the box | - EZVIZ DB1 Pro Doorbell |
|---|
Audio Input
| Audio Input | Built-in high-sensitivity microphone |
|---|
Day & Night
| Day & Night | IR-cut filter with auto-switching |
|---|
Audio Output
| Audio Output | Built-in high-power speaker |
|---|
Image Sensor
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
|---|
Power Supply
| Power Supply | AC 16V~24V |
|---|
Reset button
| Reset button | Yes |
|---|
Tamper Alarm
| Tamper Alarm | Sound and light anti-dismantling alarm (supports sending alerts to the smartphone) |
|---|
Data Security
| Data Security | 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK |
|---|
Certifications
| Certifications | UL / CE / FCC / REACH / WEEE / RoHS / UKCA |
|---|
Video Intercom
| Video Intercom | Long-distance two-way talk |
|---|
Wi-Fi Standard
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
|---|
Day & Night (6)
| Day & Night (6) | Video Parameters |
|---|
Frame Rate (12)
| Frame Rate (12) | Interface |
|---|
Frequency Range
| Frequency Range | 2.4 GHz & 5 GHz |
|---|
In the box (38)
| In the box (38) | - Mounting Plates (2) |
|---|
In the box (39)
| In the box (39) | - Mounting Screws (3) |
|---|
In the box (40)
| In the box (40) | - Plate Foam |
|---|
In the box (41)
| In the box (41) | - Power Kit |
|---|
In the box (42)
| In the box (42) | - Drill Bit |
|---|
In the box (43)
| In the box (43) | - Screwdriver |
|---|
In the box (44)
| In the box (44) | - Anchors (3) |
|---|
In the box (45)
| In the box (45) | - Wire connecters (4) |
|---|
In the box (46)
| In the box (46) | - Security Screw |
|---|
In the box (47)
| In the box (47) | - Fixing Screws (2) |
|---|
In the box (48)
| In the box (48) | - Wire Harness |
|---|
In the box (49)
| In the box (49) | - Fuse Wire |
|---|
In the box (50)
| In the box (50) | - U-shaped Wires (2) |
|---|
In the box (51)
| In the box (51) | - Regulatory Information (2) |
|---|
In the box (52)
| In the box (52) | - Quick Start Guide |
|---|
In the box (53)
| In the box (53) | Certifications |
|---|
Max. Resolution
| Max. Resolution | 2544 × 1888 |
|---|
Channel Bandwidth
| Channel Bandwidth | Supports 20MHz, 40MHz |
|---|
Intelligent Alarm
| Intelligent Alarm | AI-powered human / vehicle shape detection |
|---|
Power Consumption
| Power Consumption | Max. 2W |
|---|
Reset button (16)
| Reset button (16) | Network Parameters |
|---|
Transmission Rate
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
|---|
Video Compression
| Video Compression | H.265 / H.264 |
|---|
Interface Protocol
| Interface Protocol | EZVIZ cloud proprietary protocol |
|---|
Video Intercom (23)
| Video Intercom (23) | Wi-Fi Parameters |
|---|
Operation Conditions
| Operation Conditions | -30°C to 60°C (-4°F to 122°F), Humidity 95% or less (non-condensing) |
|---|
Power Consumption (36)
| Power Consumption (36) | In the box |
|---|
Transmission Rate (29)
| Transmission Rate (29) | General |
|---|
Interface Protocol (19)
| Interface Protocol (19) | Functions |
|---|
Ingress Protection Grade
| Ingress Protection Grade | IP 65 |
|---|
