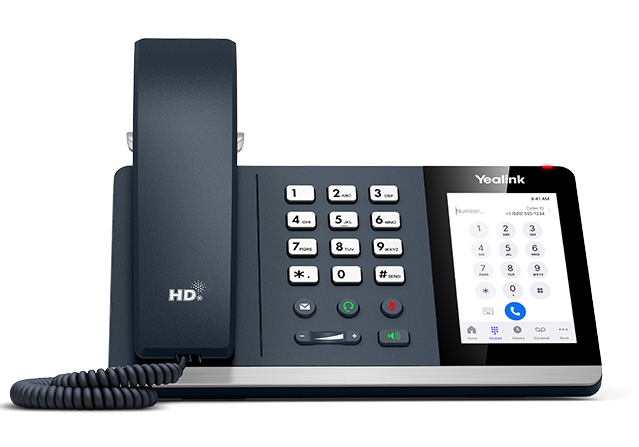

YEALINK MP54-Zoom Desktop Phone
MP54-Zoom Desktop Phone
- Brand: YEALINK
- Category: Video Conferencing
- SKU: 6383025
- MPN: 1301114
Overview
Entry-level cost-effective desk phone
for common areas and workers of co-working spaces
Pleasant Zoom-tailored Communication Experience with Simple Taps
Certified as Zoom Phone Appliance, Yealink MP54 provides both native Zoom Phone and Meetings capabilities, enabling users to collaborate effortlessly with premium video (receive only), audio, and whiteboard features.
With the built-in native Zoom application, the MP54 presents friendly and intuitive UI on its responsive 4-inch touch screen, through which the meeting schedules can be synchronized and managed via simple taps, making collaboration more efficient and easeful than ever.
Sophisticated Audio, Making Every Conversation Clear and Focus
The MP54 combines the professional hardware and software technology to deliver crystal clear voice communications. Thanks to Yealink Optima HD voice, Noise Proof Technology, hardwares of full-duplex hands-free speakerphone with AEC and HAC handset, MP54 delivers excellent audio experience in every calling.
Flexible Choices to Meet Expansion Requirements
For customers with extra connectivity requirements, the MP54 supports Bluetooth and Wi-Fi via dongle BT41/WF50. The USB port also allows for connecting with wireless/wired USB headsets to meet the needs of users with large call volumes or headset preference.
Efficient Provisioning and Management
Yealink MP54 supports efficient auto-provisioning mechanism of phone deployment and configuration, allowing the administrators to take advantage of centralized deployment, management and update. Moreover, the MP54 is compatible with several device management platforms, including Zoom/Yealink Device Management Platform.
for common areas and workers of co-working spaces
Pleasant Zoom-tailored Communication Experience with Simple Taps
Certified as Zoom Phone Appliance, Yealink MP54 provides both native Zoom Phone and Meetings capabilities, enabling users to collaborate effortlessly with premium video (receive only), audio, and whiteboard features.
With the built-in native Zoom application, the MP54 presents friendly and intuitive UI on its responsive 4-inch touch screen, through which the meeting schedules can be synchronized and managed via simple taps, making collaboration more efficient and easeful than ever.
Sophisticated Audio, Making Every Conversation Clear and Focus
The MP54 combines the professional hardware and software technology to deliver crystal clear voice communications. Thanks to Yealink Optima HD voice, Noise Proof Technology, hardwares of full-duplex hands-free speakerphone with AEC and HAC handset, MP54 delivers excellent audio experience in every calling.
Flexible Choices to Meet Expansion Requirements
For customers with extra connectivity requirements, the MP54 supports Bluetooth and Wi-Fi via dongle BT41/WF50. The USB port also allows for connecting with wireless/wired USB headsets to meet the needs of users with large call volumes or headset preference.
Efficient Provisioning and Management
Yealink MP54 supports efficient auto-provisioning mechanism of phone deployment and configuration, allowing the administrators to take advantage of centralized deployment, management and update. Moreover, the MP54 is compatible with several device management platforms, including Zoom/Yealink Device Management Platform.
Key features
- Product type: IP Phone
- Handset type: Wired handset
- Product colour: Grey
- Device lock: Yes
- Mounting: Desk
- Operating system installed: Android
- Operating system version: 9.0
- Hearing aid compatibility: Yes
- Compatible products: Zoom
- Hot desking: Yes
- Common area phone (CAP): Yes
- Call hold: Yes
- Call forwarding: Yes
- Full duplex: Yes
- Call transfer: Yes
- Message-waiting indicator (MWI): Yes
- Emergency call: Yes
- Integrated voicemail: Yes
- Firmware upgradeable: Yes
- Display: LCD
- Display diagonal: 10.2 cm (4")
- Display resolution: 800 x 480 pixels
- Touchscreen: Yes
- Touchscreen type: Capacitive
Specifications
Audio
| Speakerphone | Yes |
|---|---|
| Microphone mute | Yes |
| Voice codecs | AGC, AJB, CNG, G.711a, G.711u, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, OPUS, PLC, Silk, VAD, iLBC |
| Echo cancellation | Yes |
| Comfort noise generation (CNG) | Yes |
| Packet loss concealment (PLC) | Yes |
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| USB output current | 0.5 A |
| Power consumption (typical) | 5.3 W |
| Power consumption (Power over Ethernet (PoE)) | 6.8 W |
| Energy saving mode | Yes |
Design
| Product type | IP Phone |
|---|---|
| Handset type | Wired handset |
| Product colour | Grey |
| Device lock | Yes |
| Mounting | Desk |
Display
| Display | LCD |
|---|---|
| Display diagonal | 10.2 cm (4") |
| Display resolution | 800 x 480 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Number of simultaneous touchpoints | 5 |
| Graphical user interface (GUI) language | Multi |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Supported network protocols | IPv4/IPv6, SNTP |
| DHCP client | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, MD5, TLS |
| Syslog | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
Performance
| Operating system installed | Android |
|---|---|
| Operating system version | 9.0 |
| Hearing aid compatibility | Yes |
| Compatible products | Zoom |
Certificates
| Certification | CE, FCC, RoHS, ISO 9001, CCC, REACH |
|---|
Logistics data
| Products per master (outer) case | 5 pc(s) |
|---|---|
| Master (outer) case gross weight | 5.3 kg |
| Master (outer) case length | 261 mm |
| Master (outer) case width | 188 mm |
| Master (outer) case height | 529 mm |
| Master (outer) case net weight | 4.8 kg |
Phone features
| Hot desking | Yes |
|---|---|
| Common area phone (CAP) | Yes |
| Call hold | Yes |
| Call forwarding | Yes |
| Full duplex | Yes |
| Call transfer | Yes |
| Message-waiting indicator (MWI) | Yes |
| Emergency call | Yes |
Packaging content
| Base station | Yes |
|---|---|
| Number of handles included | 1 pc(s) |
| Cables included | LAN (RJ-45) |
| Stand included | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-9 ports quantity | 2 |
| DC-in jack | Yes |
| Cable lock slot | Yes |
Management features
| Integrated voicemail | Yes |
|---|---|
| Firmware upgradeable | Yes |
Weight & dimensions
| Width | 223 mm |
|---|---|
| Depth | 159 mm |
| Height | 127 mm |
| Package width | 188 mm |
| Package depth | 529 mm |
| Package height | 261 mm |
Operational conditions
| Operating temperature (T-T) | -10 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
