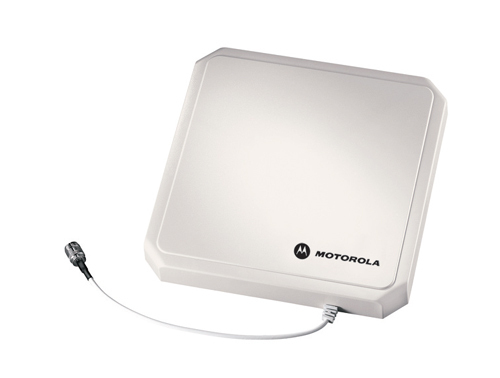

Motorola AN480 RFID Antenna network antenna Directional antenna…

SKU: CNZ-IM-015205
MPN: AN480-CR66100WR
Rating: No reviews yet

ZEBRA AN480 ANTENNA: 1 PORT WIDE BAND-RIGHT — ZEBRA

Overview

This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola's AN480 can be installed throughout the enterprise from the manufacturing and warehouse floors to the dock doors and outside in the yard.

The AN480 antenna offers the environmental sealing required for indoor and outdoor use. Its extremely low axial ratio delivers a more uniform gain for superior performance.

Key features

Impedance: 50 Ω
Horizontal beam width: 65°
Vertical beam width: 65°
Antenna gain level (max): 6 dBi
Antenna type: Directional antenna
Antenna connector type: N-type
Voltage Standing Wave Ratio (VSWR): 1.22:1
Product colour: White
Power handling: 2 W
Purpose: Outdoor
Certification: RoHS, UL
Width: 259.1 mm
Depth: 259.1 mm
Height: 50.3 mm
Weight: 1.13 kg
Harmonized System (HS) code: 85177100
Frequency range: 865 - 868 MHz

At a glance

Antenna type	Directional antenna
Antenna connector type	N-type
Voltage Standing Wave Ratio (VSWR)	1.22:1
Product colour	White
Power handling	2 W
Purpose	Outdoor
Impedance	50 Ω
Horizontal beam width	65°

All 17 specifications

Specifications

Features

Antenna type	Directional antenna
Antenna connector type	N-type
Voltage Standing Wave Ratio (VSWR)	1.22:1
Product colour	White
Power handling	2 W
Purpose	Outdoor

Performance

Impedance	50 Ω
Horizontal beam width	65°
Vertical beam width	65°
Antenna gain level (max)	6 dBi

Certificates

Certification	RoHS, UL

Logistics data

Harmonized System (HS) code	85177100

Other features

Frequency range	865 - 868 MHz

Weight & dimensions

Width	259.1 mm
Depth	259.1 mm
Height	50.3 mm
Weight	1.13 kg

Questions

$401.34inc GST
