ZEBRA CS6080-SR BLACK CORDLESS W
KIT PLATEN ROLLER WITH BEARINGS ZD220 ZD230 ZD888 THERMAL TRANSFER
- Brand: ZEBRA
- Category: Scanners
- SKU: 5035519
- MPN: CS6080-SR40000TZVW
ZEBRA

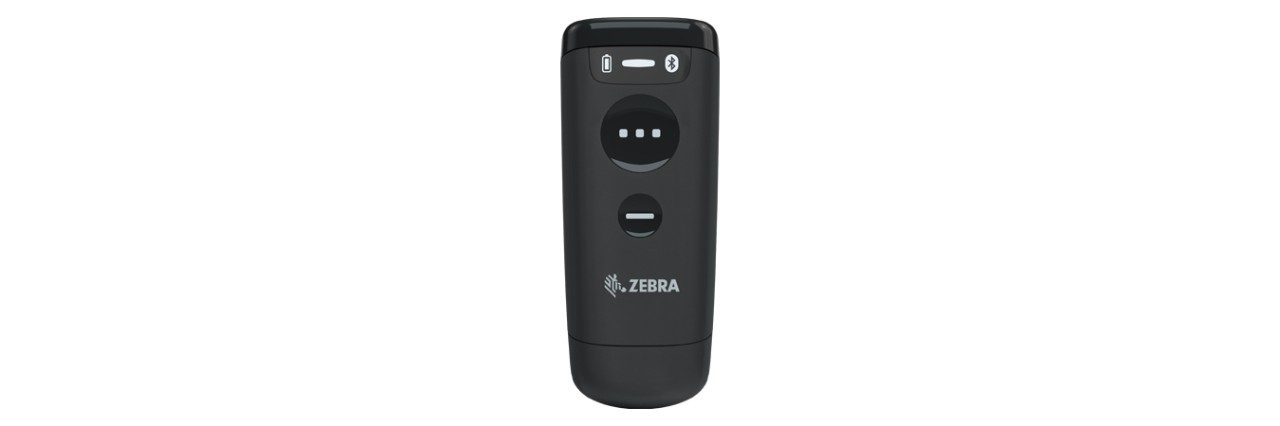

Zebra CS60 Handheld bar code reader 1D/2D LED Black
- SKU
- CNZ-IM-015130
- MPN
- CS6080-SR40000TZVW
- Rating
- No reviews yet
−49%
Overview
ULTRA-VERSATILE WITH A FIRST-OF-ITS-KIND CONVERTIBLE DESIGN
The ultra-versatile CS60 Series Companion Scanner adapts to any workflow. Its groundbreaking design easily converts between corded and cordless operation, handheld and hands-free, as your needs change for superior investment protection.
ADAPTS TO ANY WORKFLOW
As a cordless companion scanner, the CS60 is small enough to tuck in a pocket or wear on a lanyard. And as a corded scanner, the CS60 offers compact handheld or hands-free scanning for the checkout counter, self-service kiosk and more. Whether you purchase a corded or cordless model up front, you can change modes at any time.
CUTTING-EDGE MOBILITY
With Qi inductive charging, split-second NFC tap-to-pair, Bluetooth 5.0 with Wi-Fi friendly mode, an 18-hour battery and Virtual Tether anti-loss functionality, the cordless CS60 is pocketable and wearable when mobility is essential.
EASY TO CONFIGURE AND MANAGE
DataCapture DNA is a unique collection of value-add tools that make it easier to deploy, update, troubleshoot, manage and develop applications for your business.
The ultra-versatile CS60 Series Companion Scanner adapts to any workflow. Its groundbreaking design easily converts between corded and cordless operation, handheld and hands-free, as your needs change for superior investment protection.
ADAPTS TO ANY WORKFLOW
As a cordless companion scanner, the CS60 is small enough to tuck in a pocket or wear on a lanyard. And as a corded scanner, the CS60 offers compact handheld or hands-free scanning for the checkout counter, self-service kiosk and more. Whether you purchase a corded or cordless model up front, you can change modes at any time.
CUTTING-EDGE MOBILITY
With Qi inductive charging, split-second NFC tap-to-pair, Bluetooth 5.0 with Wi-Fi friendly mode, an 18-hour battery and Virtual Tether anti-loss functionality, the cordless CS60 is pocketable and wearable when mobility is essential.
EASY TO CONFIGURE AND MANAGE
DataCapture DNA is a unique collection of value-add tools that make it easier to deploy, update, troubleshoot, manage and develop applications for your business.
Key features
- Type: Handheld bar code reader
- Scanner type: 1D/2D
- Sensor type: LED
- Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C.
- 2D (matrix & stacked) barcodes supported: Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Optical sensor resolution (W x H): 1280 x 960 pixels
- Light levels (direct sunlight): 0 - 108000 lx
- Wavelength: 525 nm
- Tilt reading angle: -60 - 60°
- Pitch reading angle: -60 - 60°
- Yaw reading angle: 0 - 360°
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth, USB
- Wireless range: 100 m
- Bluetooth version: 5.0
- Bluetooth Low Energy (BLE): Yes
- International Protection (IP) code: IP65
- LED indicators: Yes
- Product colour: Black
- Power source type: AC, Battery, DC, USB
- Battery technology: Lithium Polymer (LiPo)
- Battery type: Built-in battery
- Battery capacity: 735 mAh
- Number of reads per charge: 13000
Specifications
Power
| Power source type | AC, Battery, DC, USB |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery type | Built-in battery |
| Battery capacity | 735 mAh |
| Number of reads per charge | 13000 |
| Battery life | 18 h |
| Charging time | 6 h |
| Power consumption | 400 mA |
Scanning
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Wavelength | 525 nm |
| Tilt reading angle | -60 - 60° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | 0 - 360° |
Performance
| International Protection (IP) code | IP65 |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Connectivity technology | Wireless |
|---|---|
| Standard interfaces | Bluetooth, USB |
| Wireless range | 100 m |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
Weight & dimensions
| Width | 46 mm |
|---|---|
| Depth | 109 mm |
| Height | 23 mm |
| Weight | 83 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Questions
$773.94inc GST
