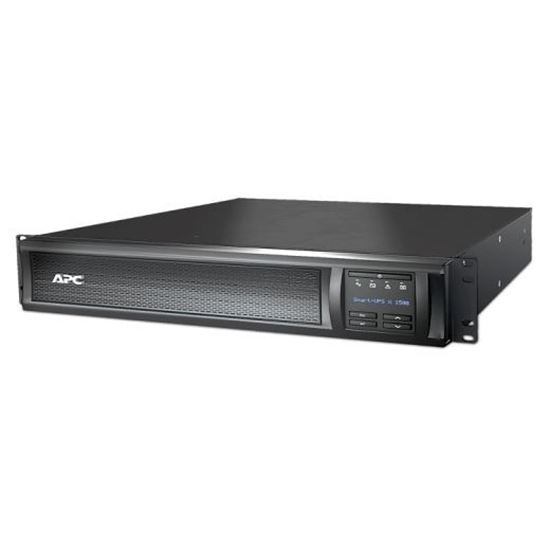

APC Smart-UPS 1500VA (1200W) 2U Rack/Tower with Network Card. 230V
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SMX1500RMI2UNC
- MPN: SMX1500RMI2UNC
APC
APC Smart-UPS X SMX1500RMI2UNC - 1500VA, 8x C13 output, USB,…
- SKU
- CNZ-CD-004468
- MPN
- SMX1500RMI2UNC
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 1500VA (1200W) 2U Rack/Tower with Network Card. 230V Input/Output. 8x IEC C13 Outlets. Internal Battery Backup. LCD Interface. USB Connectivity. Audible Alarm. Rack Mount Included
Key features
- UPS topology: Line-Interactive
- Output power capacity: 1.5 kVA
- Output power: 1200 W
- Waveform: Sine
- Input operation voltage (min): 151 V
- Input operation voltage (max): 302 V
- Input frequency: 50/60 Hz
- Output frequency regulation: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 645 J
- Efficiency: 98.5%
- Emergency Power Off (EPO): Yes
- Noise level: 40 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Audible alarm modes: Low battery alarm, Overload alarm
- Auto-restart: Yes
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 8 AC outlet(s)
- Number of output IEC jumpers: 2
- USB port: Yes
- SmartSlot: Yes
- SmartConnect port: No
Specifications
RoHS
| RoHS | Compliant |
|---|
Spec
| Spec | Output |
|---|
Color
| Color | Black |
|---|
Topology
| Topology | Line interactive |
|---|
Approvals
| Approvals | C-Tick, CE, EAC, EN 50091-1, EN 50091-2, VDE |
|---|
Filtering
| Filtering | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|---|
Color (43)
| Color (43) | Physical |
|---|
Net Weight
| Net Weight | 54.72lbs. (24.82KG) |
|---|
Cord Length
| Cord Length | 6ft (1.8meters) |
|---|
Rack Height
| Rack Height | 2U |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
RBC Quantity
| RBC Quantity | 1 |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 19.29inches (490MM, 49.0CM) |
|---|
Maximum Width
| Maximum Width | 17.01inches (432MM, 43.2CM) |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Filtering (32)
| Filtering (32) | Physical |
|---|
Maximum Height
| Maximum Height | 3.5inches (89MM, 8.9CM) |
|---|
Shipping Depth
| Shipping Depth | 24.41inches (620MM, 62.0CM) |
|---|
Shipping Width
| Shipping Width | 23.19inches (589MM, 58.9CM) |
|---|
Input frequency
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 9.69inches (246MM, 24.6CM) |
|---|
Shipping weight
| Shipping weight | 66.14lbs. (30.0KG) |
|---|
Units per Pallet
| Units per Pallet | 8.0 |
|---|
Input Connections
| Input Connections | IEC 320 C14 |
|---|
Interface Port(s)
| Interface Port(s) | SmartSlot, USB |
|---|
Standard warranty
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
Storage Elevation
| Storage Elevation | 0 - 50000ft (0 - 15240meters) |
|---|
Output Connections
| Output Connections | (8) IEC 320 C13(2) IEC Jumpers |
|---|
Operating Elevation
| Operating Elevation | 0 - 10000ft (0 - 3048meters) |
|---|
Storage Temperature
| Storage Temperature | -15 - 45 °C |
|---|
Surge energy rating
| Surge energy rating | 645Joules |
|---|
Extended Run Options
| Extended Run Options | APC-Smart-UPS-X-1500VA-Rack-Tower-LCD-230V-with-Network-Card (Available in Technical Tab on site) |
|---|
Nominal Input Voltage
| Nominal Input Voltage | 230V |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 32 - 113 °F (0 - 45 °C) |
|---|
Output power capacity
| Output power capacity | 1.2kWatts / 1.5kVA |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Units per Pallet (45)
| Units per Pallet (45) | Environmental |
|---|
Nominal Output Voltage
| Nominal Output Voltage | 230V |
|---|
Output Connections (9)
| Output Connections (9) | Input |
|---|
Standard warranty (57)
| Standard warranty (57) | Sustainable Offer Status |
|---|
Extended Run Options (23)
| Extended Run Options (23) | Communications & Management |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 5 % |
|---|
Storage Relative Humidity
| Storage Relative Humidity | 0 - 95 % |
|---|
Emergency Power Off (EPO)
| Emergency Power Off (EPO) | Yes |
|---|
Number of Power Cords (16)
| Number of Power Cords (16) | Batteries & Runtime |
|---|
Online thermal dissipation
| Online thermal dissipation | 133.0BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0 - 95 % |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 103 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
Emergency Power Off (EPO) (29)
| Emergency Power Off (EPO) (29) | Surge Protection and Filtering |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 1.2kWatts / 1.5kVA |
|---|
Online thermal dissipation (54)
| Online thermal dissipation (54) | Conformance |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
|---|
Pre-Installed SmartSlot™ Cards
| Pre-Installed SmartSlot™ Cards | AP9631 (Available in Technical Tab on site) |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 151 - 302 Adjustable, 160 - 286V |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 40.0dBA |
|---|
Questions
$4,543.64inc GST
