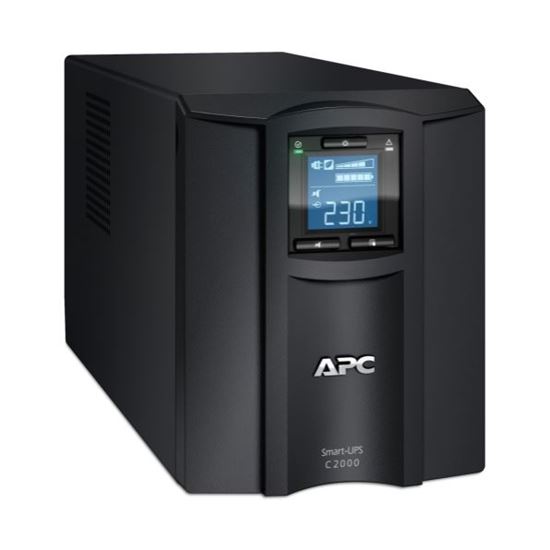

APC Smart-UPS 2000VA (1300W) Tower. 230V Input/Output. 6x IEC C13
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SMC2000I
- MPN: SMC2000I
APC
APC Smart-UPS C, Line Interactive, 2000VA, Tower, 230V, 6x IEC…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 2000VA (1300W) Tower. 230V Input/Output. 6x IEC C13 Outlets. With Battery Backup. LED Status Indicators. USB Connectivity. Audible Alarm.
Key features
- UPS topology: Line-Interactive
- Output power capacity: 2 kVA
- Output power: 1300 W
- Waveform: Sine
- Input operation voltage (min): 170 V
- Input operation voltage (max): 300 V
- Input frequency: 47/63 Hz
- Output operation voltage (max): 230 V
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 300 J
- Output voltage Total Harmonic Distortion (THD): 5%
- Noise level: 45 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Web-based management: Yes
- Audible alarm modes: Low battery alarm
- Auto-restart: Yes
- AC outlet types: C13 coupler, C19 coupler, C20 coupler
- AC outlets quantity: 7 AC outlet(s)
- USB port: Yes
- SmartSlot: No
- SmartConnect port: No
- Battery technology: Sealed Lead Acid (VRLA)
- Battery capacity: 499 VAh
Specifications
Spec
| Spec | Output |
|---|
Color
| Color | Black |
|---|
Runtime
| Runtime | View Runtime Graph (Available in Technical Tab on site) View Runtime Chart (Available in Technical Tab on site) |
|---|
Topology
| Topology | Line interactive |
|---|
Approvals
| Approvals | C-Tick, CE, EAC, GOST, SABS, VDE |
|---|
Net Weight
| Net Weight | 27.5KG |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
RBC Quantity
| RBC Quantity | 1 |
|---|
Runtime (24)
| Runtime (24) | Communications & Management |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 440MM, 44.0CM |
|---|
Maximum Width
| Maximum Width | 170MM, 17.0CM |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Maximum Height
| Maximum Height | 216MM, 21.6CM |
|---|
Shipping Depth
| Shipping Depth | 590MM, 59.0CM |
|---|
Shipping Width
| Shipping Width | 370MM, 37.0CM |
|---|
Input frequency
| Input frequency | 47 - 63 Hz |
|---|
Shipping Height
| Shipping Height | 330MM, 33.0CM |
|---|
Shipping weight
| Shipping weight | 30.0KG |
|---|
Units per Pallet
| Units per Pallet | 24.0 |
|---|
Input Connections
| Input Connections | IEC 320 C20 |
|---|
Interface Port(s)
| Interface Port(s) | USB |
|---|
Standard warranty
| Standard warranty | 2 years repair or replace |
|---|
Storage Elevation
| Storage Elevation | 0 - 15240meters |
|---|
Audible Alarm (28)
| Audible Alarm (28) | Surge Protection and Filtering |
|---|
Audible Alarm (29)
| Audible Alarm (29) | Surge energy rating 300Joules |
|---|
Audible Alarm (30)
| Audible Alarm (30) | Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|---|
Audible Alarm (31)
| Audible Alarm (31) | Physical |
|---|
Output Connections
| Output Connections | (6) IEC 320 C13(1) IEC 320 C19 |
|---|
Operating Elevation
| Operating Elevation | 0 - 3048meters |
|---|
Storage Temperature
| Storage Temperature | -15 - 45 °C |
|---|
Other Input Voltages
| Other Input Voltages | 220, 240 |
|---|
Nominal Input Voltage
| Nominal Input Voltage | 230V |
|---|
Operating Temperature
| Operating Temperature | 0 - 40 °C |
|---|
Output power capacity
| Output power capacity | 1.3kWatts / 2.0kVA |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Units per Pallet (42)
| Units per Pallet (42) | Environmental |
|---|
Nominal Output Voltage
| Nominal Output Voltage | 230V |
|---|
Output Connections (9)
| Output Connections (9) | Input |
|---|
Standard warranty (56)
| Standard warranty (56) | Sustainable Offer Status |
|---|
Standard warranty (57)
| Standard warranty (57) | RoHS:Compliant |
|---|
Storage Temperature (47)
| Storage Temperature (47) | Disclaimer: Documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user's applications. |
|---|
Storage Temperature (48)
| Storage Temperature (48) | Environmental |
|---|
Other Input Voltages (15)
| Other Input Voltages (15) | Batteries & Runtime |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 5 % at full load |
|---|
Online thermal dissipation
| Online thermal dissipation | 135.0BTU/hr |
|---|
Equipment protection policy
| Equipment protection policy | 3 years : $250 |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0 - 95 % |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 166 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 1.3kWatts / 2.0kVA |
|---|
Online thermal dissipation (52)
| Online thermal dissipation (52) | Conformance |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50 Hz Sync to mains |
|---|
Expected Battery Life (years) (19)
| Expected Battery Life (years) (19) | Disclaimer: Documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user's applications. |
|---|
Expected Battery Life (years) (20)
| Expected Battery Life (years) (20) | Batteries & Runtime |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 170 - 300 Adjustable, 180 - 287V |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 45.0dBA |
|---|
