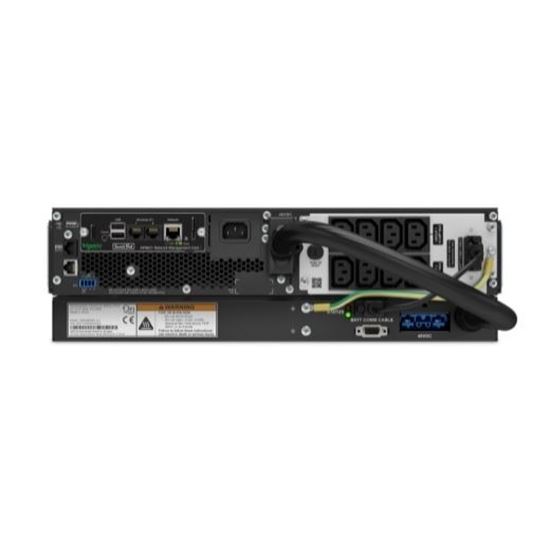

APC Smart-UPS 1500VA (1350W) 3U Lithium Ion Rack Mount with Network
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SRTL1500RMXLI-NC
- MPN: SRTL1500RMXLI-NC
APC
APC Smart-UPS On-Line, 1500VA, Rackmount 3U, 230V, 8x C13 IEC…
- SKU
- CNZ-CD-004431
- MPN
- SRTL1500RMXLI-NC
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 1500VA (1350W) 3U Lithium Ion Rack Mount with Network Card 230V Input/Output. 8x IEC C13 Outlets. With Battery Backup. LED Status Indicators. USB Connectivity Rack Mount Kit Included
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 1.5 kVA
- Output power: 1350 W
- Waveform: Sine
- Input operation voltage (min): 220 V
- Input operation voltage (max): 240 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Surge energy rating: 340 J
- Crest factor: 3:1
- Emergency Power Off (EPO): Yes
- Noise level: 50 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Auto-restart: Yes
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 8 AC outlet(s)
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RJ-45
- Serial ports quantity: 1
Specifications
RoHS
| RoHS | Compliant |
|---|
Spec
| Spec | Output |
|---|
Bypass
| Bypass | Built-in bypass |
|---|
Topology
| Topology | Double conversion online |
|---|
Approvals
| Approvals | CE, CE Mark, EAC, RCM, VDE |
|---|
Bypass (9)
| Bypass (9) | Input |
|---|
Net Weight
| Net Weight | 30.53KG |
|---|
Battery type
| Battery type | Li-Ion (Lithium-Ion) |
|---|
Audible Alarm
| Audible Alarm | Audible and visible alarms prioritized by severity |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 590MM, 59.0CM |
|---|
Maximum Width
| Maximum Width | 432MM, 43.2CM |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Maximum Height
| Maximum Height | 128MM, 12.8CM |
|---|
Shipping Depth
| Shipping Depth | 850MM, 85.0CM |
|---|
Shipping Width
| Shipping Width | 600MM, 60.0CM |
|---|
Input frequency
| Input frequency | 40~70Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 445MM, 44.5CM |
|---|
Shipping weight
| Shipping weight | 46.86KG |
|---|
Protection Class
| Protection Class | IP20 |
|---|
Units per Pallet
| Units per Pallet | 6.0 |
|---|
Interface Port(s)
| Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
|---|
Load Crest Factor
| Load Crest Factor | 3 : 1 |
|---|
Standard warranty
| Standard warranty | 3 years |
|---|
Storage Elevation
| Storage Elevation | 0 - 15240meters |
|---|
Extendable Run Time
| Extendable Run Time | 1 |
|---|
Operating Elevation
| Operating Elevation | 0 - 3048meters |
|---|
Storage Temperature
| Storage Temperature | -15°C - 45°C |
|---|
Surge energy rating
| Surge energy rating | 340Joules |
|---|
Other Input Voltages
| Other Input Voltages | 220, 240 |
|---|
Operating Temperature
| Operating Temperature | 0°C - 40°C |
|---|
Other Output Voltages
| Other Output Voltages | 220, 240 |
|---|
Protection Class (48)
| Protection Class (48) | Conformance |
|---|
Typical recharge time
| Typical recharge time | 6hour(s) |
|---|
Units per Pallet (38)
| Units per Pallet (38) | Environmental |
|---|
Standard warranty (51)
| Standard warranty (51) | Sustainable Offer Status |
|---|
Nominal Battery Voltage
| Nominal Battery Voltage | 48V |
|---|
Surge energy rating (28)
| Surge energy rating (28) | Physical |
|---|
Other Input Voltages (13)
| Other Input Voltages (13) | Batteries & Runtime |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 2 % |
|---|
Storage Relative Humidity
| Storage Relative Humidity | 0 - 95% |
|---|
Emergency Power Off (EPO)
| Emergency Power Off (EPO) | Yes |
|---|
Online thermal dissipation
| Online thermal dissipation | 450.0BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0 - 95% |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 103 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 5 - 10 |
|---|
Battery Volt-Amp-Hour Capacity
| Battery Volt-Amp-Hour Capacity | 585 |
|---|
Emergency Power Off (EPO) (26)
| Emergency Power Off (EPO) (26) | Surge Protection and Filtering |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 1.35kWatts / 1.5kVA |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60Hz +/- 3Hz Sync to mains |
|---|
Battery Volt-Amp-Hour Capacity (21)
| Battery Volt-Amp-Hour Capacity (21) | Communications & Management |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 50 - 150 40% load, 80 - 150V |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 50.0dBA |
|---|
