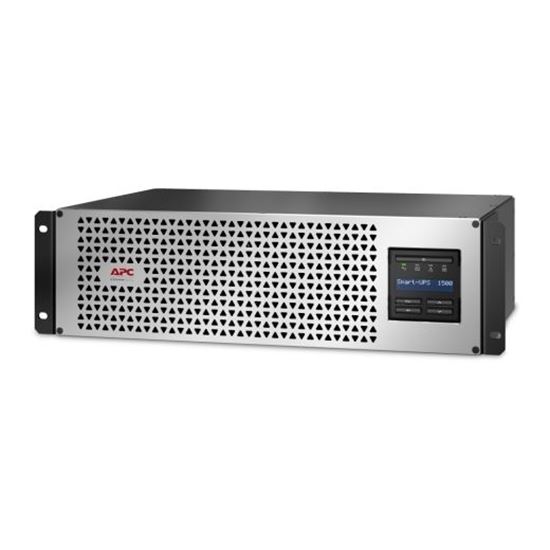

APC Smart-UPS 1500VA (1350W) 3U Lithium Ion Rack Mount with Smart
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SMTL1500RMI3UC
- MPN: SMTL1500RMI3UC
APC
APC Smart-UPS Li-ion SMTL1500RMI3UC - 6x C13, Short Depth, Rackmount…
- SKU
- CNZ-CD-004507
- MPN
- SMTL1500RMI3UC
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 1500VA (1350W) 3U Lithium Ion Rack Mount with Smart Connect. Short Depth. 230V Input/ Output. 6x IEC C13 Outlets. With Battery Backup. LED Stat Indicators USB Connectivity. Rach Mount Includ
Key features
- UPS topology: Line-Interactive
- Output power capacity: 1.5 kVA
- Output power: 1350 W
- Waveform: Sine
- Input operation voltage (min): 151 V
- Input operation voltage (max): 302 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Surge energy rating: 680 J
- Response time: 6 ms
- Output voltage Total Harmonic Distortion (THD): 5%
- Noise level: 45 dB
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery
- AC outlet types: C13 coupler
- AC outlets quantity: 6 AC outlet(s)
- USB port: Yes
- USB port type: USB Type-A
- Serial interface type: RJ-45
- SmartSlot: Yes
- SmartConnect port: Yes
- Battery technology: Lithium-Ion (Li-Ion)
Specifications
Spec
| Spec | Output |
|---|
Topology
| Topology | Line-interactive |
|---|
Approvals
| Approvals | CE, CSA, EAC, GS Mark, IEC 62040-1-1, IEC 62040-1-2, IEC 62040-2, RCM, UL 1973 |
|---|
Filtering
| Filtering | Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449 |
|---|
Net Weight
| Net Weight | 19.5KG |
|---|
Battery type
| Battery type | Li-Ion (Lithium-Ion) |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: configurable delays |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 302MM, 30.2CM |
|---|
Maximum Width
| Maximum Width | 438MM, 43.8CM |
|---|
Transfer Time
| Transfer Time | 6 ms typical: 10 ms maximum |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Filtering (26)
| Filtering (26) | Physical |
|---|
Maximum Height
| Maximum Height | 131MM, 13.1CM |
|---|
Shipping Depth
| Shipping Depth | 448MM, 44.8CM |
|---|
Shipping Width
| Shipping Width | 584MM, 58.4CM |
|---|
Input frequency
| Input frequency | 50/60Hz +/- 3Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 279MM, 27.9CM |
|---|
Shipping weight
| Shipping weight | 22.68KG |
|---|
Protection Class
| Protection Class | IP20 |
|---|
Units per Pallet
| Units per Pallet | 12 |
|---|
Standard warranty
| Standard warranty | 3-year |
|---|
Storage Elevation
| Storage Elevation | 0~7620 meters |
|---|
Transfer Time (8)
| Transfer Time (8) | Input |
|---|
Operating Elevation
| Operating Elevation | 0~3048meters |
|---|
Storage Temperature
| Storage Temperature | -10~40°C |
|---|
Surge energy rating
| Surge energy rating | 645Joules |
|---|
Other Input Voltages
| Other Input Voltages | 220, 240 |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 0~40°C |
|---|
Other Output Voltages
| Other Output Voltages | 220, 240 |
|---|
Protection Class (45)
| Protection Class (45) | Conformance |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Units per Pallet (36)
| Units per Pallet (36) | Environmental |
|---|
Other Input Voltages (13)
| Other Input Voltages (13) | Batteries & Runtime |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 5% |
|---|
Online thermal dissipation
| Online thermal dissipation | 135.0BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0~95% |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 100 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 8 - 10 |
|---|
Battery Volt-Amp-Hour Capacity
| Battery Volt-Amp-Hour Capacity | 307 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 1.35kWatts / 1.5kVA |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60Hz +/- 3Hz Sync to mains |
|---|
Battery Volt-Amp-Hour Capacity (19)
| Battery Volt-Amp-Hour Capacity (19) | Communications & Management |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 160V~286V |
|---|
Available SmartSlot™ Interface Quantity
| Available SmartSlot™ Interface Quantity | 1 |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 45.0dBA |
|---|
Available SmartSlot™ Interface Quantity (23)
| Available SmartSlot™ Interface Quantity (23) | Surge Protection and Filtering |
|---|
Questions
$5,002.49inc GST
