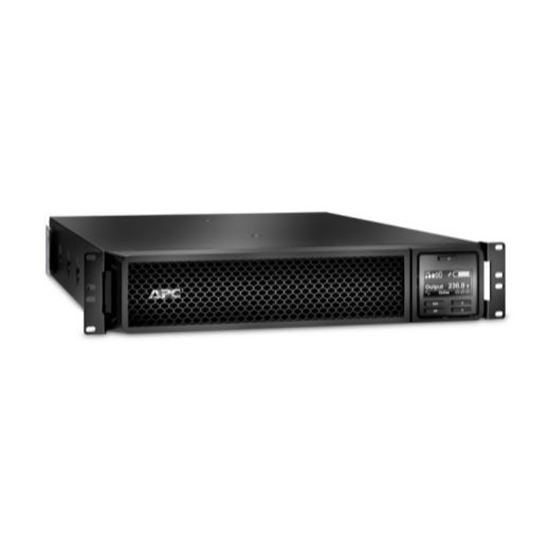

APC Smart-UPS 1500VA (1500W) 2U 230V Input/Output. 6x IEC C13
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SRT1500RMXLI
- MPN: SRT1500RMXLI
APC
APC Smart-UPS On-Line, 1500VA/1500W, Rackmount 2U, 230V, 6x C13 IEC…
- SKU
- CNZ-CD-004520
- MPN
- SRT1500RMXLI
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 1500VA (1500W) 2U 230V Input/Output. 6x IEC C13 Outlets. With Battery Backup. Intuitive LCD Interface. USB, Rj-45 Serial, & SmartSlot Connectivity, Alarm. Rack Mount Kit Included
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 1.5 kVA
- Output power: 1500 W
- Waveform: Sine
- Input operation voltage (min): 50 V
- Input operation voltage (max): 150 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Surge energy rating: 432 J
- Crest factor: 3:1
- Emergency Power Off (EPO): Yes
- Noise level: 50 dB
- Audible alarm(s): Yes
- AC outlet types: C13 coupler
- AC outlets quantity: 6 AC outlet(s)
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RJ-45
- SmartSlot: Yes
- SmartConnect port: No
- Battery technology: Sealed Lead Acid (VRLA)
- Battery life (max): 5 year(s)
Specifications
Spec
| Spec | Output |
|---|
Color
| Color | Black |
|---|
Bypass
| Bypass | Built-in bypass |
|---|
Topology
| Topology | Double conversion online |
|---|
Approvals
| Approvals | CE, EAC |
|---|
Net Weight
| Net Weight | 21.0KG |
|---|
Bypass (12)
| Bypass (12) | Input |
|---|
Cord Length
| Cord Length | 1.8meters |
|---|
Rack Height
| Rack Height | 2U |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
RBC Quantity
| RBC Quantity | 1 |
|---|
Audible Alarm
| Audible Alarm | Audible and visible alarms prioritized by severity |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 505MM, 50.5CM |
|---|
Maximum Width
| Maximum Width | 432MM, 43.2CM |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Maximum Height
| Maximum Height | 85MM, 8.5CM |
|---|
Shipping Depth
| Shipping Depth | 749MM, 74.9CM |
|---|
Shipping Width
| Shipping Width | 594MM, 59.4CM |
|---|
Input frequency
| Input frequency | 40 - 70 Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 246MM, 24.6CM |
|---|
Shipping weight
| Shipping weight | 29.6KG |
|---|
Protection Class
| Protection Class | IP20 |
|---|
Units per Pallet
| Units per Pallet | 12.0 |
|---|
Input Connections
| Input Connections | IEC 60320 C14 |
|---|
Interface Port(s)
| Interface Port(s) | RJ-45 Serial, Smart-Slot, USB |
|---|
Load Crest Factor
| Load Crest Factor | 3 : 1 |
|---|
Standard warranty
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
Storage Elevation
| Storage Elevation | 0 - 15240meters |
|---|
Output Connections
| Output Connections | (6) IEC 60320 C13(6) IEC 320 C13 |
|---|
Extendable Run Time
| Extendable Run Time | 1 |
|---|
Operating Elevation
| Operating Elevation | 0 - 3048meters |
|---|
Shipping Width (46)
| Shipping Width (46) | Physical |
|---|
Storage Temperature
| Storage Temperature | -20 - 50 °C |
|---|
Surge energy rating
| Surge energy rating | 432Joules |
|---|
Extended Run Options
| Extended Run Options | APC-Smart-UPS-SRT-1500VA-RM-230V (Available in Technical Tab on site) |
|---|
Other Input Voltages
| Other Input Voltages | 220, 240 |
|---|
Nominal Input Voltage
| Nominal Input Voltage | 230V |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 0 - 40 °C |
|---|
Other Output Voltages
| Other Output Voltages | 220, 240 |
|---|
Output power capacity
| Output power capacity | 1.5kWatts / 1.5kVA |
|---|
Protection Class (60)
| Protection Class (60) | Conformance |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Units per Pallet (50)
| Units per Pallet (50) | Environmental |
|---|
Nominal Output Voltage
| Nominal Output Voltage | 230V |
|---|
Included Battery Modules
| Included Battery Modules | 1 |
|---|
Surge energy rating (37)
| Surge energy rating (37) | Physical |
|---|
Extended Run Options (29)
| Extended Run Options (29) | Communications & Management |
|---|
Other Input Voltages (20)
| Other Input Voltages (20) | Batteries & Runtime |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 2 % |
|---|
Storage Relative Humidity
| Storage Relative Humidity | 0 - 95 (Non-condensing) % |
|---|
Emergency Power Off (EPO)
| Emergency Power Off (EPO) | Yes |
|---|
Online thermal dissipation
| Online thermal dissipation | 317.0BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0 - 95 (Non-condensing) % |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 108 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 1.5kWatts / 1.5kVA |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 50 - 150 40% load, 80 - 150V |
|---|
Available SmartSlot™ Interface Quantity
| Available SmartSlot™ Interface Quantity | 1 |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 50.0dBA |
|---|
Available SmartSlot™ Interface Quantity (35)
| Available SmartSlot™ Interface Quantity (35) | Surge Protection and Filtering |
|---|
