APC Smart-UPS X SMX2200RMHV2U - 2200VA, 8x C13 + 1x C19 outlet, USB,…

SKU: CNZ-CD-004470
MPN: SMX2200RMHV2U
Rating: No reviews yet

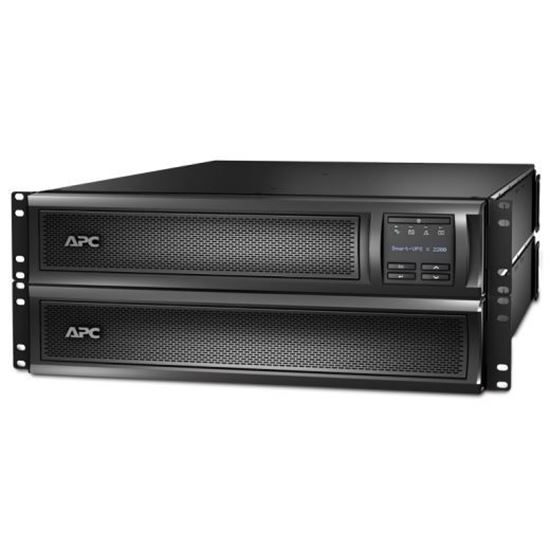

APC Smart-UPS 2200VA (1980W) 2U Rack/Tower. 200V-240V Input/Output. — APC

Overview

APC Smart-UPS 2200VA (1980W) 2U Rack/Tower. 200V-240V Input/Output. 8x IEC C13 Outlets. Internal Battery Backup. LCD Interface. USB Connectivity. Audible Alarm, Rack Mount Kit Included

Key features

UPS topology: Line-Interactive
Output power capacity: 2.2 kVA
Output power: 1980 W
Waveform: Sine
Input frequency: 50/60 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 645 J
Response time: 4 ms
Hold time (min): 2 ms
Hold time (max): 10 ms
Efficiency: 98.1%
Emergency Power Off (EPO): Yes
Noise level: 55 dB
Surge protection: Yes
Audible alarm(s): Yes
Auto-restart: Yes
AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 9 AC outlet(s)
Number of output IEC jumpers: 2
USB port: Yes

At a glance

RoHS	Compliant
Spec	Output
Color	Black
Topology	Line interactive
Approvals	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC part 15 class A, IEC 60950, IRAM, RCM, UL 1778, VDE
Filtering	Full time multi-pole noise ﬁltering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Net Weight	37.32KG
Cord Length	1.8meters

All 67 specifications

Specifications

RoHS

RoHS	Compliant

Spec

Spec	Output

Color

Color	Black

Topology

Topology	Line interactive

Approvals

Approvals	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC part 15 class A, IEC 60950, IRAM, RCM, UL 1778, VDE

Filtering

Filtering	Full time multi-pole noise ﬁltering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Net Weight

Net Weight	37.32KG

Cord Length

Cord Length	1.8meters

Rack Height

Rack Height	2U

Battery type

Battery type	Lead-acid battery

RBC Quantity

RBC Quantity	1

Audible Alarm

Audible Alarm	Alarm when on battery : distinctive low battery alarm : conﬁgurable delays

Control panel

Control panel	LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators, Multifunction LCD status and control console

Maximum Depth

Maximum Depth	667MM, 66.7CM

Maximum Width

Maximum Width	432MM, 43.2CM

Pallet Weight

Pallet Weight	856.91lbs.

Transfer Time

Transfer Time	2-4 ms6 ms typical : 10 ms maximum

Waveform type

Waveform type	Sine wave

Filtering (37)

Filtering (37)	Physical

Maximum Height

Maximum Height	85MM, 8.5CM

Shipping Depth

Shipping Depth	869MM, 86.9CM

Shipping Width

Shipping Width	596MM, 59.6CM

Input frequency

Input frequency	50/60 Hz +/- 3 Hz Auto-sensing

Shipping Height

Shipping Height	243MM, 24.3CM

Shipping weight

Shipping weight	45.36KG

Units per Pallet

Units per Pallet	8.0

Input Connections

Input Connections	BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P

Interface Port(s)

Interface Port(s)	RJ-45 Serial, SmartSlot, USB

Standard warranty

Standard warranty	3 years repair or replace (excluding battery) and 2 years for battery, optional on-sitewarranties available, optional extended warranties available

Storage Elevation

Storage Elevation	0 - 15240meters

Output Connections

Output Connections	(8) IEC 320 C13(2) IEC Jumpers(1) IEC 320 C19

Transfer Time (11)

Transfer Time (11)	Input

Transfer Time (19)

Transfer Time (19)	2-4 ms

Transfer Time (20)

Transfer Time (20)	Batteries & Runtime

Extendable Run Time

Extendable Run Time	1

Operating Elevation

Operating Elevation	0 - 3048meters

Storage Temperature

Storage Temperature	-15 - 45 °C

Surge energy rating

Surge energy rating	645Joules

Extended Run Options

Extended Run Options	APC-Smart-UPS-X-2200VA-Rack-Tower-LCD-200-240V (Available in Technical Tab on site)

Other Input Voltages

Other Input Voltages	220, 240

Shipping weight (44)

Shipping weight (44)	Physical

Nominal Input Voltage

Nominal Input Voltage	208V, 230V

Number of Power Cords

Number of Power Cords	1

Operating Temperature

Operating Temperature	0 - 40 °C

Other Output Voltages

Other Output Voltages	220, 240

Output power capacity

Output power capacity	1.98kWatts / 2.2kVA

Typical recharge time

Typical recharge time	3hour(s)

Units per Pallet (53)

Units per Pallet (53)	Environmental

# of Layers per Pallet

# of Layers per Pallet	4.0

Nominal Output Voltage

Nominal Output Voltage	208V, 230V

Standard warranty (65)

Standard warranty (65)	Sustainable Oﬀer Status

Extended Run Options (28)

Extended Run Options (28)	Communications & Management

Output Voltage Distortion

Output Voltage Distortion	Less than 5 %

Storage Relative Humidity

Storage Relative Humidity	0 - 95 %

Emergency Power Oﬀ (EPO)

Emergency Power Oﬀ (EPO)	Yes

Online thermal dissipation

Online thermal dissipation	150.0BTU/hr

Operating Relative Humidity

Operating Relative Humidity	0 - 95 %

Battery Charge Power (Watts)

Battery Charge Power (Watts)	233 Watts

Expected Battery Life (years)

Expected Battery Life (years)	3 - 5

# of Units per Layer per Pallet

# of Units per Layer per Pallet	2.0

Max Conﬁgurable Power (Watts)

Max Conﬁgurable Power (Watts)	1.98kWatts / 2.2kVA

Online thermal dissipation (62)

Online thermal dissipation (62)	Conformance

Output Frequency (sync to mains)

Output Frequency (sync to mains)	50/60 Hz +/- 3 Hz Sync to mains

Input voltage range for main operations

Input voltage range for main operations	140 - 280V

Available SmartSlot™ Interface Quantity

Available SmartSlot™ Interface Quantity	1

Audible noise at 1 meter from surface of unit

Audible noise at 1 meter from surface of unit	55.0dBA

Available SmartSlot™ Interface Quantity (34)

Available SmartSlot™ Interface Quantity (34)	Surge Protection and Filtering
