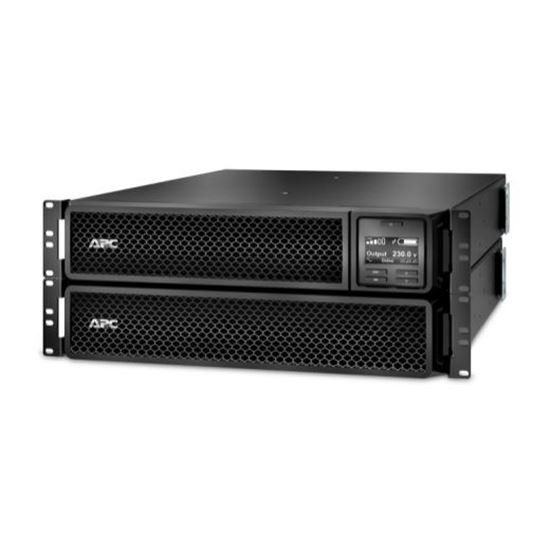

APC Smart-UPS 2200VA (1980W) 2U with Network Card. 230V In/Out.
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SRT2200RMXLI-NC
- MPN: SRT2200RMXLI-NC
APC
APC Smart-UPS On-Line SRT2200RMXLI-NC - 2200VA, 8x C13 & 2x C19,…
- SKU
- CNZ-CD-004524
- MPN
- SRT2200RMXLI-NC
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 2200VA (1980W) 2U with Network Card. 230V In/Out. 6x IEC C13 Outlets. With Battery Backup Intuitive LCD Interface. USB, Rj-45 Connectivity. Audible Alarm. Rack Mount Kit Included
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 2.2 kVA
- Output power: 1980 W
- Waveform: Sine
- Input operation voltage (min): 160 V
- Input operation voltage (max): 275 V
- Input frequency: 40 - 70 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Surge energy rating: 340 J
- Crest factor: 3:1
- Emergency Power Off (EPO): Yes
- Output voltage Total Harmonic Distortion (THD): 2%
- Noise level: 55 dB
- Audible alarm(s): Yes
- AC outlet types: C13 coupler, C19 coupler
- AC outlets quantity: 12 AC outlet(s)
- Number of output IEC jumpers: 2
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RJ-45
- Ethernet LAN (RJ-45) ports: 1
- SmartSlot: Yes
- SmartConnect port: No
Specifications
Spec
| Spec | Output |
|---|
Bypass
| Bypass | Built-in bypass |
|---|
Topology
| Topology | Double conversion online |
|---|
Approvals
| Approvals | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
|---|
Bypass (9)
| Bypass (9) | Input |
|---|
Net Weight
| Net Weight | 25.0KG |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
RBC Quantity
| RBC Quantity | 1 |
|---|
Audible Alarm
| Audible Alarm | Audible and visible alarms prioritized by severity |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 584MM, 58.4CM |
|---|
Maximum Width
| Maximum Width | 432MM, 43.2CM |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Maximum Height
| Maximum Height | 85MM, 8.5CM |
|---|
Shipping Depth
| Shipping Depth | 810MM, 81.0CM |
|---|
Shipping Width
| Shipping Width | 599MM, 59.9CM |
|---|
Input frequency
| Input frequency | 40 - 70Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 246MM, 24.6CM |
|---|
Shipping weight
| Shipping weight | 34.02KG |
|---|
Protection Class
| Protection Class | IP20 |
|---|
Interface Port(s)
| Interface Port(s) | RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB |
|---|
Load Crest Factor
| Load Crest Factor | 3 : 1 |
|---|
Standard warranty
| Standard warranty | 2 Year |
|---|
Storage Elevation
| Storage Elevation | 0 - 15240meters |
|---|
Extendable Run Time
| Extendable Run Time | 1 |
|---|
Operating Elevation
| Operating Elevation | 0 - 3048meters |
|---|
Shipping Depth (40)
| Shipping Depth (40) | Environmental |
|---|
Storage Temperature
| Storage Temperature | -20°C - 50°C |
|---|
Surge energy rating
| Surge energy rating | 340 Joules |
|---|
Other Input Voltages
| Other Input Voltages | 220, 240 |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 0°C - 40°C |
|---|
Other Output Voltages
| Other Output Voltages | 220, 240 |
|---|
Protection Class (50)
| Protection Class (50) | Conformance |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Nominal Battery Voltage
| Nominal Battery Voltage | 72V |
|---|
Extendable Run Time (23)
| Extendable Run Time (23) | Communications & Management |
|---|
Included Battery Modules
| Included Battery Modules | 1 |
|---|
Surge energy rating (31)
| Surge energy rating (31) | Physical |
|---|
Other Input Voltages (14)
| Other Input Voltages (14) | Batteries & Runtime |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 2 % |
|---|
Storage Relative Humidity
| Storage Relative Humidity | 0 - 95 (Non-condensing) % |
|---|
Emergency Power Off (EPO)
| Emergency Power Off (EPO) | Yes |
|---|
Online thermal dissipation
| Online thermal dissipation | 535.0BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0 - 95 (Non-condensing) % |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 122 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 1.98kWatts / 2.2kVA |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60Hz +/- 3Hz Sync to mains |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 100 - 275 Adjustable (half load), 160 - 275V |
|---|
Available SmartSlot™ Interface Quantity
| Available SmartSlot™ Interface Quantity | 1 |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 50.0dBA |
|---|
Available SmartSlot™ Interface Quantity (29)
| Available SmartSlot™ Interface Quantity (29) | Surge Protection and Filtering |
|---|
Questions
$7,796.99inc GST
