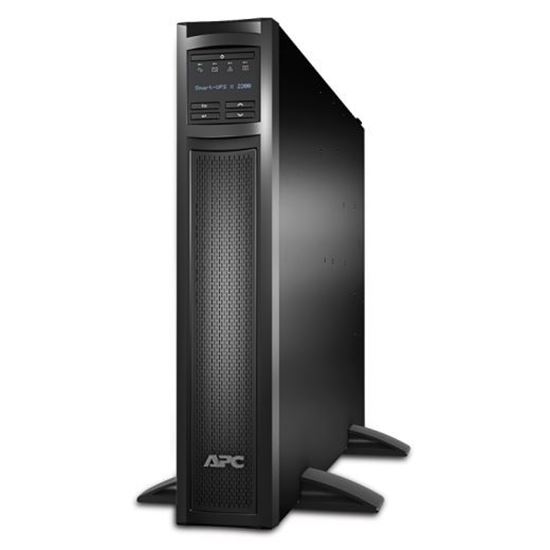

APC Smart-UPS 2200VA (1980W) 5U Rack/Tower. 200V-240V Input/Output.
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SMX2200HV
- MPN: SMX2200HV
APC
APC Smart-UPS X SMX2200HV - 2200VA, 8x C13 + 2x C19 outlet, USB,…
- SKU
- CNZ-CD-004469
- MPN
- SMX2200HV
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 2200VA (1980W) 5U Rack/Tower. 200V-240V Input/Output. 8x IEC C13 Outlets. Internal Battery Backup. LCD Interface. USB, RJ-45, Serial, & SmartSlot Connectivity. Audible Alarm.
Key features
- UPS topology: Line-Interactive
- Output power capacity: 2.2 kVA
- Output power: 1980 W
- Waveform: Sine
- Input operation voltage (min): 140 V
- Input operation voltage (max): 280 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 208 V
- Output operation voltage (max): 240 V
- Output frequency regulation: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 645 J
- Hold time (min): 2 ms
- Hold time (max): 10 ms
- Efficiency: 98.1%
- Emergency Power Off (EPO): Yes
- Noise level: 55 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Auto-restart: Yes
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 10 AC outlet(s)
- Number of output IEC jumpers: 2
Specifications
RoHS
| RoHS | Compliant |
|---|
Spec
| Spec | Output |
|---|
Color
| Color | Black |
|---|
Topology
| Topology | Line interactive |
|---|
Approvals
| Approvals | CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC part 15 class A, IEC 60950, IRAM, RCM, VDE, WEEE |
|---|
Filtering
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|---|
Net Weight
| Net Weight | 38.56KG |
|---|
Cord Length
| Cord Length | 2meters |
|---|
Rack Height
| Rack Height | 4U |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
RBC Quantity
| RBC Quantity | 1 |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
|---|
Control panel
| Control panel | LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 483MM, 48.3CM |
|---|
Maximum Width
| Maximum Width | 178MM, 17.8CM |
|---|
Pallet Weight
| Pallet Weight | 856.91lbs. |
|---|
Transfer Time
| Transfer Time | 6 ms typical : 10 ms maximum |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Filtering (36)
| Filtering (36) | Physical |
|---|
Maximum Height
| Maximum Height | 432MM, 43.2CM |
|---|
Shipping Depth
| Shipping Depth | 633MM, 63.3CM |
|---|
Shipping Width
| Shipping Width | 586MM, 58.6CM |
|---|
Input frequency
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 330MM, 33.0CM |
|---|
Shipping weight
| Shipping weight | 47.73KG |
|---|
Units per Pallet
| Units per Pallet | 6.0 |
|---|
Input Connections
| Input Connections | BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P |
|---|
Interface Port(s)
| Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
|---|
Pallet Dimensions
| Pallet Dimensions | 31 x 48 x 43.5inches |
|---|
Standard warranty
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
Storage Elevation
| Storage Elevation | 0 - 15240meters |
|---|
Output Connections
| Output Connections | (8) IEC 320 C13(2) IEC 320 C19(2) IEC Jumpers |
|---|
Transfer Time (11)
| Transfer Time (11) | Input |
|---|
Extendable Run Time
| Extendable Run Time | 1 |
|---|
Operating Elevation
| Operating Elevation | 0 - 3048meters |
|---|
Storage Temperature
| Storage Temperature | -15 - 45 °C |
|---|
Surge energy rating
| Surge energy rating | 645Joules |
|---|
Extended Run Options
| Extended Run Options | APC-Smart-UPS-X-2200VA-Rack-Tower-LCD-200-240V (Available in Technical Tab on site) |
|---|
Other Input Voltages
| Other Input Voltages | 220, 240 |
|---|
Shipping weight (43)
| Shipping weight (43) | Physical |
|---|
Nominal Input Voltage
| Nominal Input Voltage | 208V, 230V |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 0 - 40 °C |
|---|
Other Output Voltages
| Other Output Voltages | 208, 220, 240 |
|---|
Output power capacity
| Output power capacity | 1.98kWatts / 2.2kVA |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Units per Pallet (53)
| Units per Pallet (53) | Environmental |
|---|
# of Layers per Pallet
| # of Layers per Pallet | 4.0 |
|---|
Nominal Output Voltage
| Nominal Output Voltage | 208V, 230V |
|---|
Standard warranty (65)
| Standard warranty (65) | Sustainable Offer Status |
|---|
Extended Run Options (27)
| Extended Run Options (27) | Communications & Management |
|---|
Other Input Voltages (19)
| Other Input Voltages (19) | Batteries & Runtime |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 5 % |
|---|
Storage Relative Humidity
| Storage Relative Humidity | 0 - 95 % |
|---|
Emergency Power Off (EPO)
| Emergency Power Off (EPO) | Yes |
|---|
Online thermal dissipation
| Online thermal dissipation | 150.0BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0 - 95 % |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 233 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
# of Units per Layer per Pallet
| # of Units per Layer per Pallet | 2.0 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 1.98kWatts / 2.2kVA |
|---|
Online thermal dissipation (62)
| Online thermal dissipation (62) | Conformance |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 140 - 280V |
|---|
Available SmartSlot™ Interface Quantity
| Available SmartSlot™ Interface Quantity | 1 |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 55.0dBA |
|---|
Available SmartSlot™ Interface Quantity (33)
| Available SmartSlot™ Interface Quantity (33) | Surge Protection and Filtering |
|---|
Questions
$4,334.34inc GST
